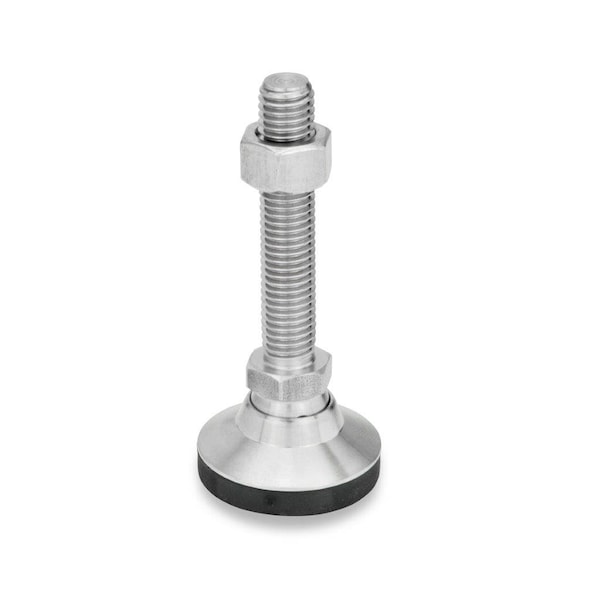

Gn343.6-25-M10-80-Kr Leveling Mount
| Material | Stainless steel |
|---|---|
| Features | With rubber cap, non-skid |
| Primary Application | The static load capacity of leveling feet GN 343.6 results from the permissible load capacity of the threaded stud (AISI 303). Under normal operating conditions, bending loads or angular loads are not uncommon and result in a reduction of the load capacity, which must be taken into consideration. |
| Includes | Elastomer rubber cap |
| Thread Size | M10 |
| Thread Length | 80 mm |
| Bore Dia. | 25 mm |
| Package Quantity | 1 |
