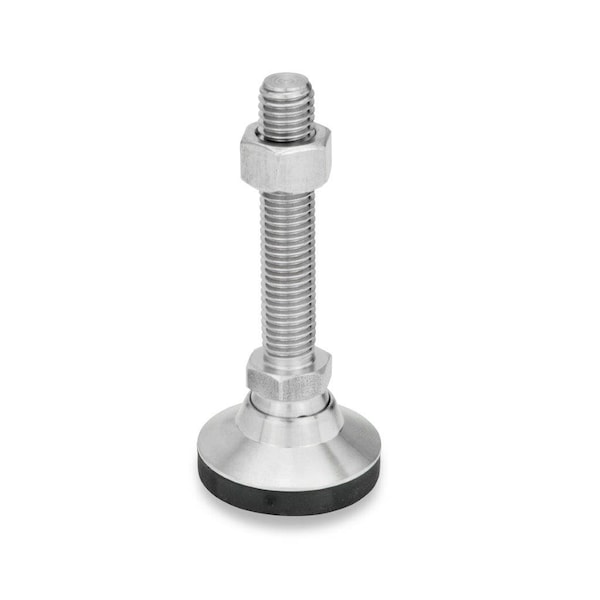

Gn343.6-25-M6-40-Kre Leveling Mount
| Material | Stainless steel |
|---|---|
| Features | With rubber cap, non-skid, ESD compliant |
| Primary Application | The static load capacity of leveling feet GN 343.6 results from the permissible load capacity of the threaded stud (AISI 303). Under normal operating conditions, bending loads or angular loads are not uncommon and result in a reduction of the load capacity, which must be taken into consideration. |
| Thread Size | M6 |
| Includes | Elastomer rubber cap |
| Thread Length | 40 mm |
| Bore Dia. | 25 mm |
| Package Quantity | 1 |
