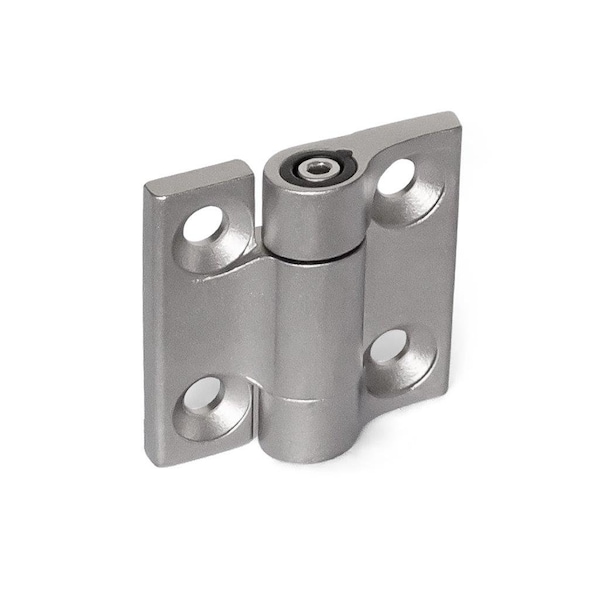

Gn437-A4-50-50-A-Gs Adj Friction Hinge
| Material | Stainless steel |
|---|---|
| Length | 50 mm |
| Features | 2x2 bores for countersunk screws |
| Thickness | 15.5 mm |
| Primary Application | The adjustment screw in GN 437 hinges allows the movement of the hinge to be constrained and adds a friction adjustment which controls the swinging of doors and flaps to eliminate inadvertent movement. |
| Finish | Matte shot-blasted finish |
| Width | 50 mm |
| Bore Dia. | 6.5 mm |
| Package Quantity | 1 |
