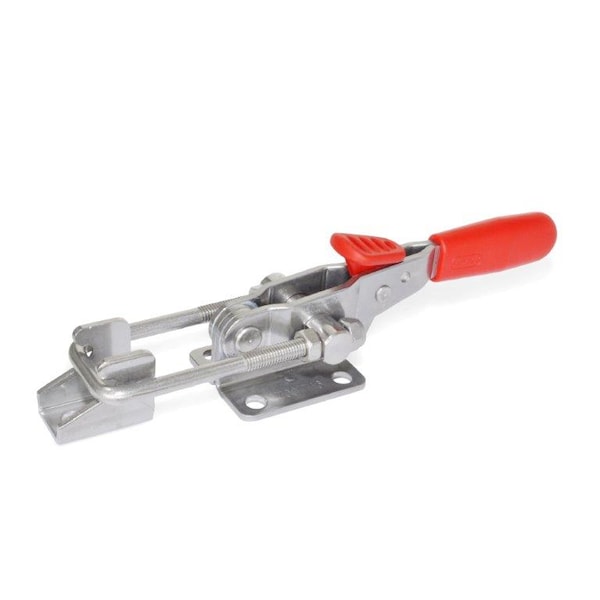

GN851.3-700-T6-A4 Latch Toggle Clamp
| Clamp Style | With U-bolt and catch |
|---|---|
| Thread Size | M8 |
| Overall Length | 8.54 in |
| Finish | Matte |
| Overall Height | 2.2 in |
| U-Bolt Latch Material | Stainless Steel |
| U-Bolt Length | 2.76 in |
| Catch Mounting Hole Distance | 3/4 in |
| Adjustable Length | 1.02 in |
| Vertical Mounting Hole Distance | 1-1/2 in |
| Mounting Hole Dia. | 0.33 in |
| Stroke | 1.93 in |
| Holding Force | 7000 N |
| Grip Material | Plastic |
| Horizontal Mounting Hole Distance | 1.63 in |
| Clamp Material | Stainless Steel |
| Package Quantity | 1 |
