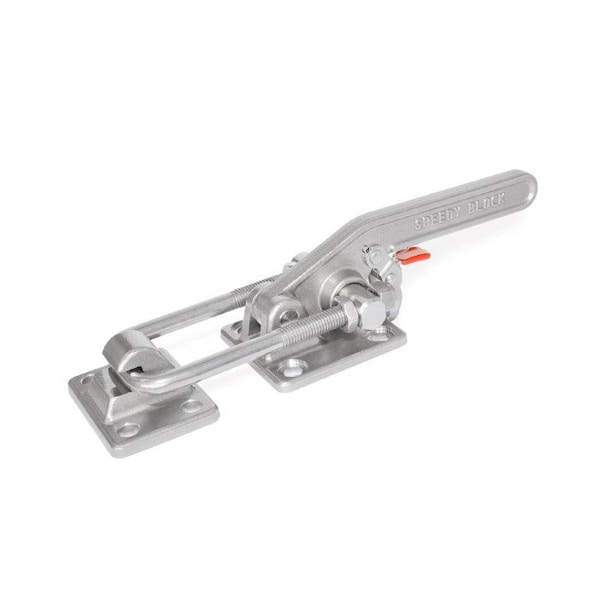

GN852.3-4000-T6-NI Latch Toggle Clamp
| Clamp Style | With U-bolt and catch |
|---|---|
| Thread Size | M12 |
| Overall Height | 2.68 in |
| Finish | Matte |
| Overall Length | 10.67 in |
| Catch Mounting Hole Distance | 1.38 in |
| Mount Type | Mounting Holes |
| Horizontal Mounting Hole Distance | 2.24 in |
| Clamp Material | Stainless Steel |
| U-Bolt Latch Material | Stainless Steel |
| Mounting Hole Dia. | 0.41 in |
| Adjustable Length | 0.98 in |
| Stroke | 2.44 in |
| Vertical Mounting Hole Distance | 2.24 in |
| Holding Force | 40000 N |
| U-Bolt Length | 4.21 in |
| Package Quantity | 1 |
