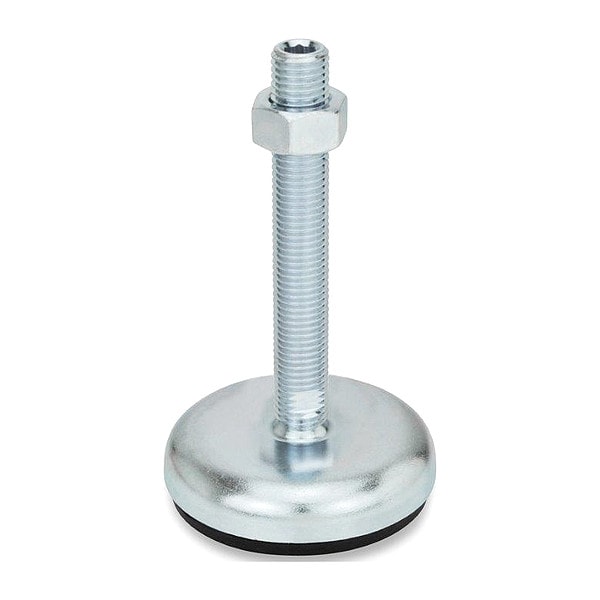

Male-End Leveling Mount, 5.24 in H
| Item | Male-End Leveling Mount |
|---|---|
| Height | 5.24 in |
| Load Capacity | 2,473 lbf |
| Thread Size | 3/4"-10 |
| Leveling Mount Type | Swiveling Stud |
| Base Dia. | 3.15 in |
| Finish | Blue Passivated Zinc-Plated |
| Bolt Length | 3.94 in |
| Includes | Nut, Rubber Pad |
| Socket Material | Not Applicable |
| Series | GN 30 |
| Connection Type | Threaded Stud |
| Swivel Angle | 6 deg |
| Base Thickness | 0.71 in |
| Base Shape | Round |
| Base Material | Steel |
| Thrust Pad Material | Buna-N |
| Bolt Material | Steel |
| Overall Length | Not Applicable |
| Overall Width | Not Applicable |
| Overall Height | 5.24 in |
| Base Diameter | 3.15 in |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |
