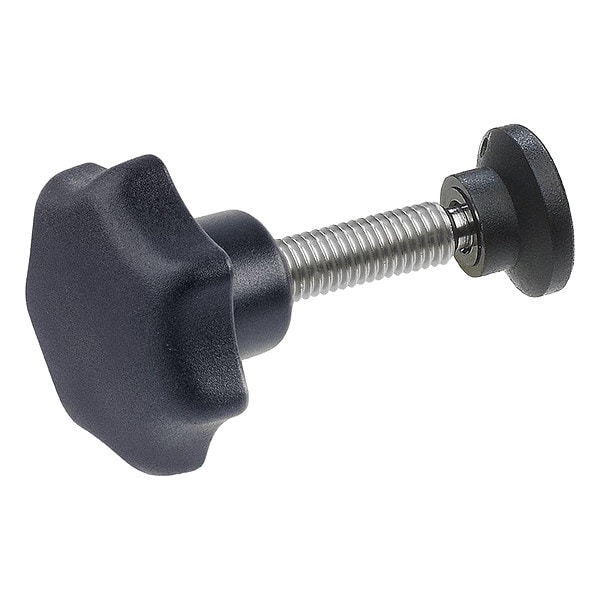

Plastic Hand Knob with SS Stud
| Color | Black |
|---|---|
| Thread Size | M10 |
| Item | Plastic Hand Knob w/ Stainless Steel Stud w/ Swivel Thrust Pad |
| Standards | AISI, DIN 6336, RoHS |
| Overall Height | 87 mm |
| Includes | Swivel Thrust Pad |
| Thread Material | Stainless Steel |
| Measurement System | Metric |
| Unthreaded Hole Depth | Not Applicable |
| Base Diameter | 22 mm |
| Base Height | 17 mm |
| Handle Diameter | 50 mm |
| Features | Corrosion-Free Applications |
| Handle Material | Technopolymer |
| Handle Type | Star |
| Unthreaded Hole Diameter | Not Applicable |
| Tap Type | Not Applicable |
| Seal Temperature - Maximum | 176 deg F |
| Thread Length | 55 mm |
| Package Quantity | 1 |
