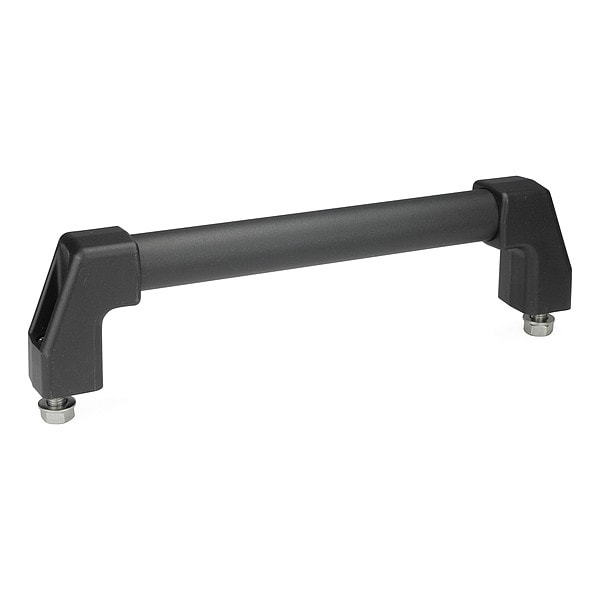

Pull Handle, Black, Aluminum, 10 5/16 in L
| Material | Aluminum |
|---|---|
| Color | Black |
| Finish | Powder Coated |
| Standards | RoHS Compliant |
| Number of Mounting Holes | 2 |
| Overall Length | 12-15/16 in |
| Item | Pull Handle |
| Mounting Hole Center to Center | 11-13/16 in |
| Grip Length | 10-5/16 in |
| Grip Thickness | Not Applicable |
| Degree Offset | Not Applicable |
| Overall Width | 1-3/32 in |
| Projection | 2-9/32 in |
| Cutout Width | Not Applicable |
| Thread Depth | 3/8 in |
| Screw Size | M8 |
| Count | 1 |
| Mounting Hole Center to Center - Inner | Not Applicable |
| Load Rating | Load Rated |
| ANSI/BHMA Finish | Powder Coated |
| Load Capacity - Perpendicular | 135 lbf |
| Grip Diameter | 25/32 in |
| Grip Offset | 1 1/2 in |
| Cutout Depth | Not Applicable |
| Cutout Length | Not Applicable |
| Mounting Hole Center to Center - Vertical | Not Applicable |
| Load Capacity - Parallel | 337 lbf |
| Grip Shape | Round |
| Handle Shape | Bar |
| Projection Type | Non-Recessed |
| Folding Type | Fixed |
| Projection - Folded | Not Applicable |
| Grip Width | Not Applicable |
| Product Type | Pull Handle |
| Package Quantity | 1 |
