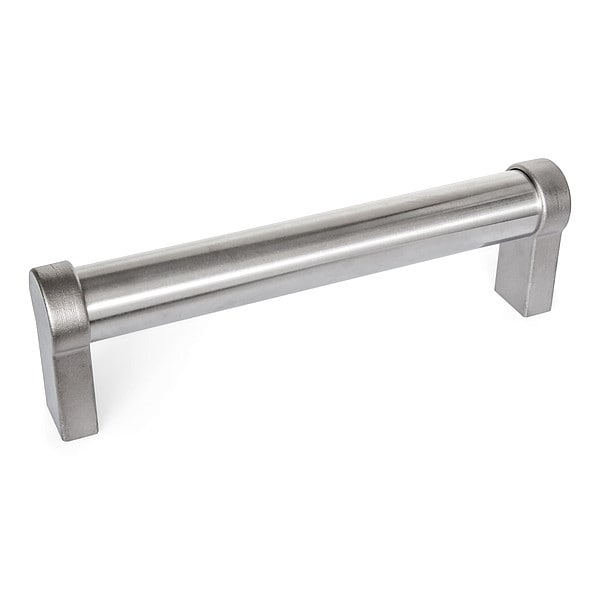

Pull Handle, Silver, Stainless Steel
| Material | Stainless Steel |
|---|---|
| Color | Silver |
| Finish | Matte Shiny |
| Number of Mounting Holes | 2 |
| Item | Pull Handle |
| Standards | RoHS Compliant |
| Overall Length | 16-5/16 in |
| Projection | 2-19/32 in |
| Grip Thickness | Not Applicable |
| Thread Depth | 19/32 in |
| Cutout Width | Not Applicable |
| Grip Length | 15-3/16 in |
| Mounting Hole Center to Center | 15-3/4 in |
| Degree Offset | Not Applicable |
| Screw Size | M8 |
| Overall Width | 1-3/32 in |
| Grip Offset | 1 13/32 in |
| Grip Diameter | 1-3/32 in |
| Projection Type | Non-Recessed |
| Folding Type | Fixed |
| Cutout Depth | Not Applicable |
| Handle Shape | Bar |
| Product Type | Pull Handle |
| Load Capacity - Parallel | 1,124 lbf |
| Load Rating | Load Rated |
| Mounting Hole Center to Center - Inner | Not Applicable |
| Cutout Length | Not Applicable |
| Projection - Folded | Not Applicable |
| ANSI/BHMA Finish | Satin Stainless Steel |
| Grip Shape | Round |
| Grip Width | Not Applicable |
| Mounting Hole Center to Center - Vertical | Not Applicable |
| Load Capacity - Perpendicular | 899 lbf |
| Count | 1 |
| Package Quantity | 1 |
