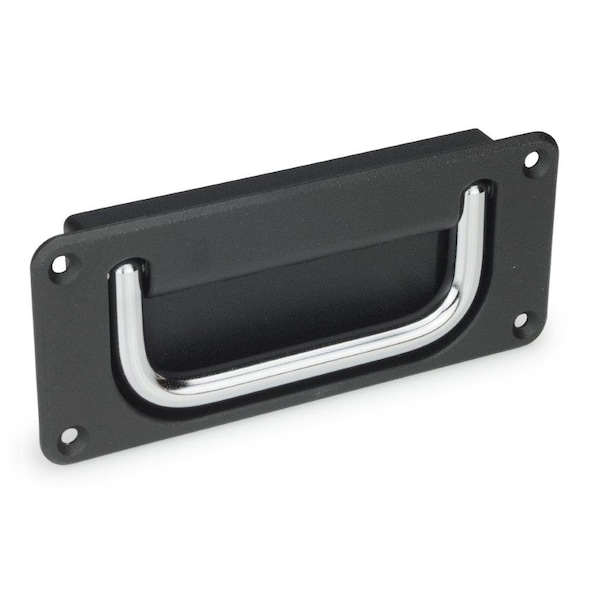

Recessed Folding Pull Handle, Black, Steel
| Material | Steel |
|---|---|
| Color | Black |
| Overall Length | 5-29/32 in |
| Standards | RoHS Compliant |
| Number of Mounting Holes | 4 |
| Item | Recessed Folding Pull Handle |
| Finish | Powder Coated |
| Load Capacity | 1124 lbf (Parallel), 225 lbf (Perpendicular) |
| Mounting Hole Center to Center | 5-9/32 in |
| Vert. Mounting Hole Ctr. to Ctr. | 49 mm |
| Projection | 1-19/32 in |
| Screw Size | M4 |
| Overall Width | 2-9/16 in |
| ANSI/BHMA Finish | Powder Coated |
| Load Capacity - Parallel | 1,124 lbf |
| Plate Width | 2-9/16 in |
| Load Capacity - Perpendicular | 225 lbf |
| Grip Shape | Round |
| Folding Type | Folding |
| Degree Offset | Not Applicable |
| Plate Length | 5-29/32 in |
| Projection - Folded | 1/8 in |
| Handle Shape | Bridge |
| Cutout Length | 4-3/4 in |
| Grip Width | Not Applicable |
| Cutout Depth | 14 1/2 in |
| Cutout Width | 59 in |
| Projection Type | Recessed |
| Grip Offset | 1 5/16 in |
| Plate Thickness | 1/8 in |
| Load Rating | Load Rated |
| Grip Length | 3-9/16 in |
| Grip Thickness | Not Applicable |
| Count | 1 |
| Includes Plate | Plate Included |
| Mounting Hole Center to Center - Inner | Not Applicable |
| Product Type | Pull Handle |
| Mounting Hole Center to Center - Vertical | 1 15/16 in |
| Grip Diameter | 3/8 in |
| Package Quantity | 1 |
