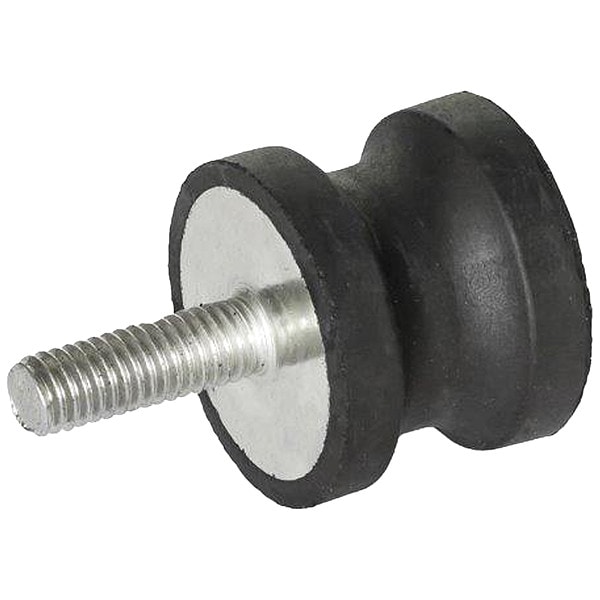

Vibration-Isolating Mount, 0.39 in H
| Item | Vibration-Isolating Mount |
|---|---|
| Height | 0.39 in |
| Thread Size | #8-32 |
| Mounting | Compressor, Pump |
| Resistant To | Abrasion; Wear |
| Shape | Hourglass |
| Overall Diameter | 0.39 in |
| Tap Depth | 5/32 in |
| Isolator Material | Natural Rubber |
| Maximum Operating Temperature | 176 deg F |
| Stud or Tap Material | Stainless Steel |
| Durometer | 55A |
| Stud Length | 0.51 in |
| Vibration Isolator Style | One Tapped Hole and One Threaded Stud |
| Taper Diameter | 0.31 in |
| Maximum Load Sideways Shear | 200 lbf |
| Maximum Load Downward Compression | 19 lbf |
| Overall Height | 0.39 in |
| Load Downward Compression - Maximum | 19.78 lbf |
| Mounting Style | Compression |
| Operating Temperature - Maximum | 176 deg F |
| Operating Temperature - Minimum | -40 Degrees F |
| Load Sideways Shear - Maximum | 201 lbf |
| FDA Approved | Not FDA Approved |
| Package Quantity | 1 |
