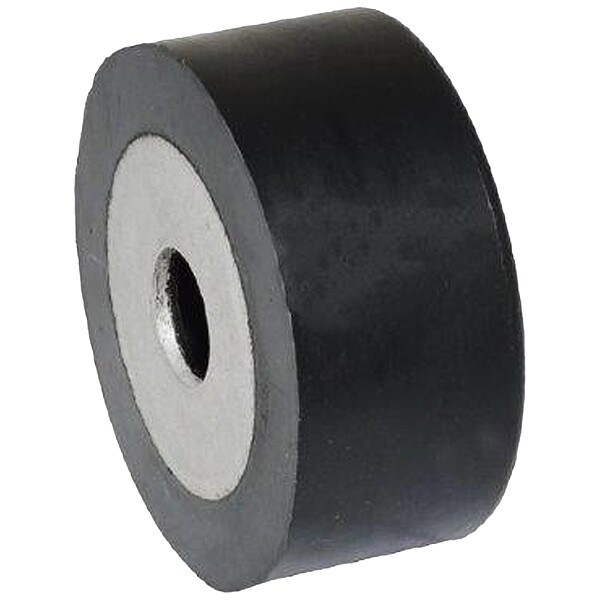

Vibration-Isolating Mount, 0.79 in H
| Item | Vibration-Isolating Mount |
|---|---|
| Height | 0.79 in |
| Thread Size | 0.33 in |
| Resistant To | Abrasion, Alkaline, Grease, Oil, Petrol, Wear |
| Mounting | DIN 912 Socket Cap Screws |
| Durometer | 55A |
| Stud or Tap Material | Stainless Steel |
| Overall Diameter | 1.65 in |
| Maximum Operating Temperature | 248 deg F |
| Isolator Material | Buna-N |
| Maximum Load Downward Compression | 405 lbf |
| Vibration Isolator Style | Plain Bore |
| Maximum Load Sideways Shear | 2,056 lbf |
| Overall Height | 0.79 in |
| Load Downward Compression - Maximum | 405 lbf |
| Load Sideways Shear - Maximum | 2,056 lbf |
| Stud Length | Not Applicable |
| Shape | Cylindrical |
| Operating Temperature - Maximum | 248 deg F |
| Tap Depth | Not Applicable |
| FDA Approved | Not FDA Approved |
| Package Quantity | 1 |
