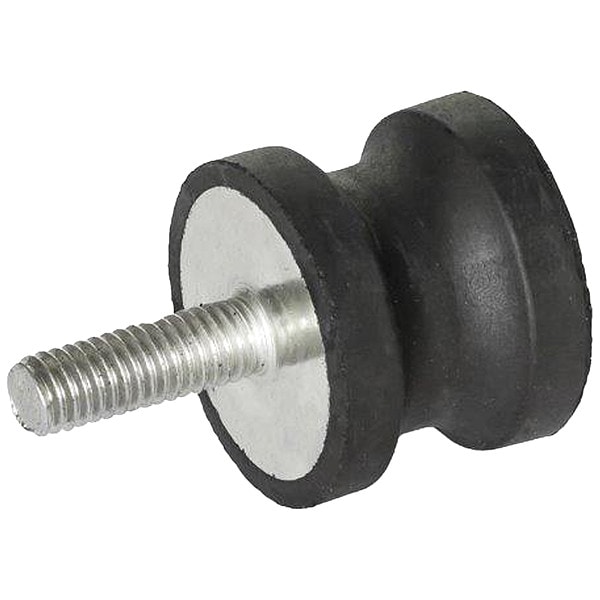

Vibration-Isolating Mount, 0.79 in H
| Item | Vibration-Isolating Mount |
|---|---|
| Height | 0.79 in |
| Thread Size | 1/4"-20 |
| Resistant To | Abrasion; Wear |
| Mounting | Compressor, Pump |
| Vibration Isolator Style | One Tapped Hole and One Threaded Stud |
| Stud or Tap Material | Stainless Steel |
| Maximum Operating Temperature | 176 deg F |
| Isolator Material | Natural Rubber |
| Stud Length | 0.51 in |
| Maximum Load Downward Compression | 68 lbf |
| Maximum Load Sideways Shear | 348 lbf |
| Tap Depth | 15/64 in |
| Taper Diameter | 0.63 in |
| Durometer | 55A |
| Overall Diameter | 0.79 in |
| Shape | Hourglass |
| Overall Height | 0.79 in |
| Load Sideways Shear - Maximum | 504 lbf |
| FDA Approved | Not FDA Approved |
| Operating Temperature - Maximum | 176 deg F |
| Mounting Style | Compression |
| Operating Temperature - Minimum | -40 Degrees F |
| Load Downward Compression - Maximum | 59.57 lbf |
| Package Quantity | 1 |
