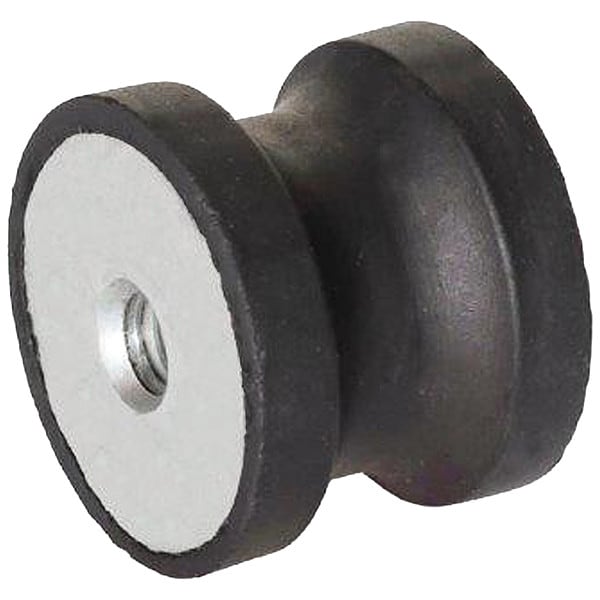

Vibration-Isolating Mount, 0.98 in H
| Item | Vibration-Isolating Mount |
|---|---|
| Height | 0.98 in |
| Thread Size | 5/16"-18 |
| Mounting | Compressor, Pump |
| Resistant To | Abrasion; Wear |
| Overall Diameter | 1.57 in |
| Maximum Operating Temperature | 176 deg F |
| Isolator Material | Natural Rubber |
| Durometer | 55A |
| Stud or Tap Material | Stainless Steel |
| Maximum Load Sideways Shear | 2,638 lbf |
| Maximum Load Downward Compression | 650 lbf |
| Shape | Hourglass |
| Taper Diameter | 1.18 in |
| Tap Depth | 5/16 in |
| Vibration Isolator Style | Two Tapped Holes |
| Overall Height | 0.98 in |
| Stud Length | Not Applicable |
| Load Sideways Shear - Maximum | 2,281 lbf |
| Load Downward Compression - Maximum | 561 lbf |
| Mounting Style | Compression |
| Operating Temperature - Maximum | 176 deg F |
| FDA Approved | Not FDA Approved |
| Operating Temperature - Minimum | -40 Degrees F |
| Package Quantity | 1 |
