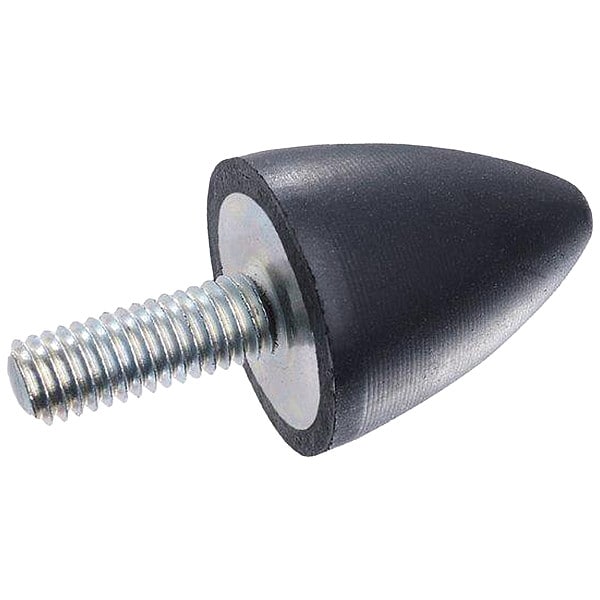

Vibration-Isolating Mount, 10 mm H
| Item | Vibration-Isolating Mount |
|---|---|
| Height | 0.39 in |
| Thread Size | M5 |
| Mounting | Conveyor |
| Resistant To | Abrasion; Wear |
| Maximum Operating Temperature | 176 deg F |
| Maximum Load Sideways Shear | 228 lbf |
| Isolator Material | Natural Rubber |
| Stud or Tap Material | Zinc-Plated Steel |
| Stud Length | 12 mm |
| Maximum Load Downward Compression | 25.4 lbf |
| Overall Diameter | 10 mm |
| Durometer | 70A |
| Shape | Conical |
| Vibration Isolator Style | One Threaded Stud |
| Overall Height | 10 mm |
| Load Downward Compression - Maximum | 113 N |
| Operating Temperature - Minimum | -40 Degrees F |
| Load Sideways Shear - Maximum | 40 N |
| Tap Depth | Not Applicable |
| FDA Approved | Not FDA Approved |
| Operating Temperature - Maximum | 176 deg F |
| Package Quantity | 1 |
