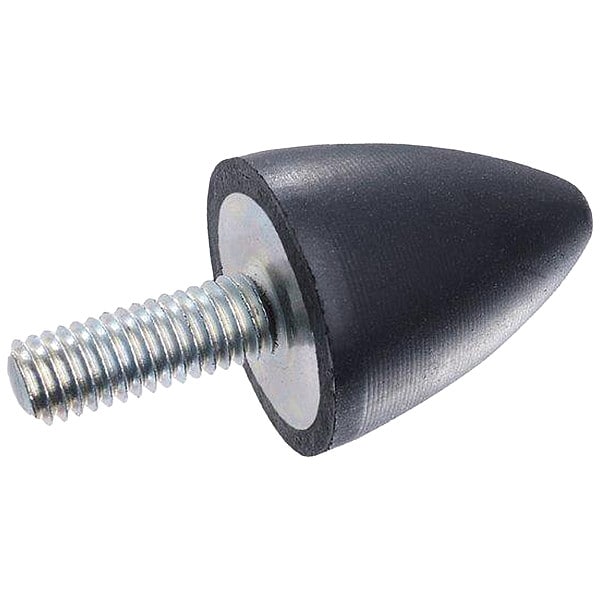

Vibration-Isolating Mount, 15 mm H
| Item | Vibration-Isolating Mount |
|---|---|
| Height | 0.59 in |
| Thread Size | M6 |
| Resistant To | Abrasion; Wear |
| Mounting | Conveyor |
| Maximum Operating Temperature | 176 deg F |
| Maximum Load Sideways Shear | 445 lbf |
| Vibration Isolator Style | One Threaded Stud |
| Durometer | 70A |
| Overall Diameter | 20 mm |
| Shape | Conical |
| Maximum Load Downward Compression | 71.94 lbf |
| Isolator Material | Natural Rubber |
| Stud Length | 18 mm |
| Stud or Tap Material | Zinc-Plated Steel |
| Overall Height | 15 mm |
| FDA Approved | Not FDA Approved |
| Load Downward Compression - Maximum | 320 N |
| Operating Temperature - Maximum | 176 deg F |
| Tap Depth | Not Applicable |
| Load Sideways Shear - Maximum | 78 N |
| Operating Temperature - Minimum | -40 Degrees F |
| Package Quantity | 1 |
