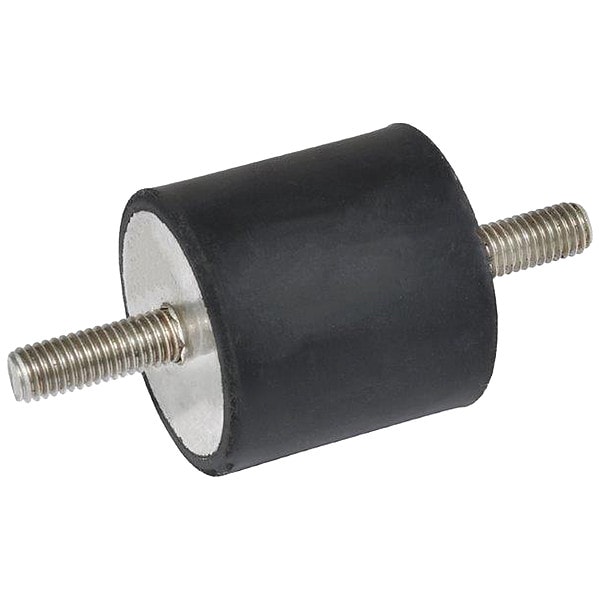

Vibration-Isolating Mount, 25 mm H
| Item | Vibration-Isolating Mount |
|---|---|
| Height | 0.98 in |
| Thread Size | M12 |
| Mounting | Compressor, Pump, Motor |
| Resistant To | Abrasion; Wear |
| Maximum Load Sideways Shear | 11,849 lbf |
| Durometer | 55A |
| Stud or Tap Material | Stainless Steel |
| Shape | Cylindrical |
| Stud Length | 37 mm |
| Isolator Material | Natural Rubber |
| Overall Diameter | 75 mm |
| Maximum Load Downward Compression | 2,916 lbf |
| Maximum Operating Temperature | 176 deg F |
| Vibration Isolator Style | Two Threaded Studs |
| Overall Height | 25 mm |
| Tap Depth | Not Applicable |
| Operating Temperature - Maximum | 176 deg F |
| Load Downward Compression - Maximum | 2,916 lbf |
| Mounting Style | Compression |
| Load Sideways Shear - Maximum | 52,706.96 N |
| FDA Approved | Not FDA Approved |
| Operating Temperature - Minimum | -40 Degrees F |
| Package Quantity | 1 |
