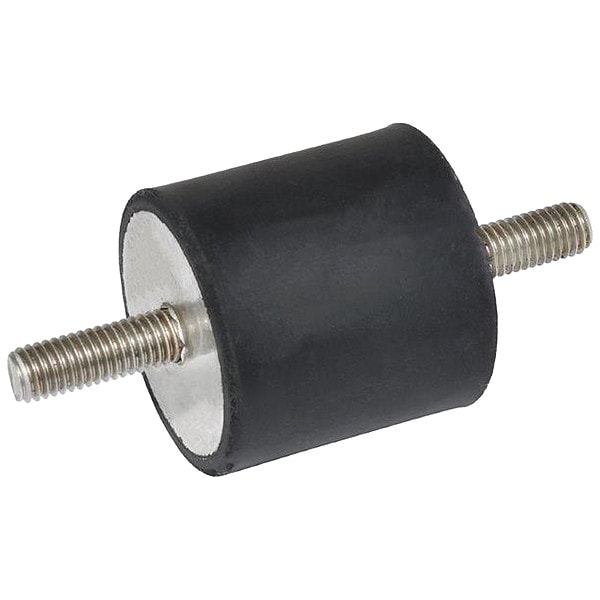

Vibration-Isolating Mount, 30 mm H
| Item | Vibration-Isolating Mount |
|---|---|
| Height | 1.18 in |
| Thread Size | M6 |
| Mounting | Compressor, Pump, Motor |
| Resistant To | Abrasion; Wear |
| Maximum Load Sideways Shear | 320 lbf |
| Durometer | 55A |
| Vibration Isolator Style | Two Threaded Studs |
| Shape | Cylindrical |
| Stud Length | 18 mm |
| Maximum Operating Temperature | 176 deg F |
| Stud or Tap Material | Stainless Steel |
| Overall Diameter | 20 mm |
| Maximum Load Downward Compression | 93 lbf |
| Isolator Material | Natural Rubber |
| Overall Height | 30 mm |
| Load Sideways Shear - Maximum | 1,423.43 N |
| Operating Temperature - Maximum | 176 deg F |
| Operating Temperature - Minimum | -40 Degrees F |
| Tap Depth | Not Applicable |
| Mounting Style | Compression |
| Load Downward Compression - Maximum | 413.68 N |
| FDA Approved | Not FDA Approved |
| Package Quantity | 1 |
