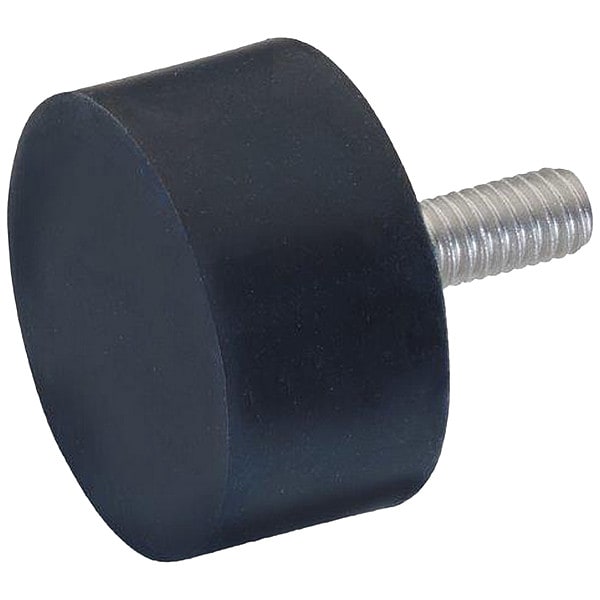

Vibration-Isolating Mount, 30 mm H
| Item | Vibration-Isolating Mount |
|---|---|
| Height | 1.18 in |
| Thread Size | M10 |
| Mounting | Conveyor |
| Resistant To | Abrasion; Wear |
| Isolator Material | Natural Rubber |
| Shape | Cylindrical |
| Maximum Load Downward Compression | 567 lbf |
| Stud or Tap Material | Stainless Steel |
| Maximum Load Sideways Shear | 1,913 lbf |
| Overall Diameter | 50 mm |
| Durometer | 55A |
| Vibration Isolator Style | One Threaded Stud |
| Maximum Operating Temperature | 176 deg F |
| Stud Length | 28 mm |
| Overall Height | 30 mm |
| Tap Depth | Not Applicable |
| Operating Temperature - Maximum | 176 deg F |
| FDA Approved | Not FDA Approved |
| Load Sideways Shear - Maximum | 8,509.44 N |
| Operating Temperature - Minimum | -40 Degrees F |
| Load Downward Compression - Maximum | 2,522.14 N |
| Package Quantity | 1 |
