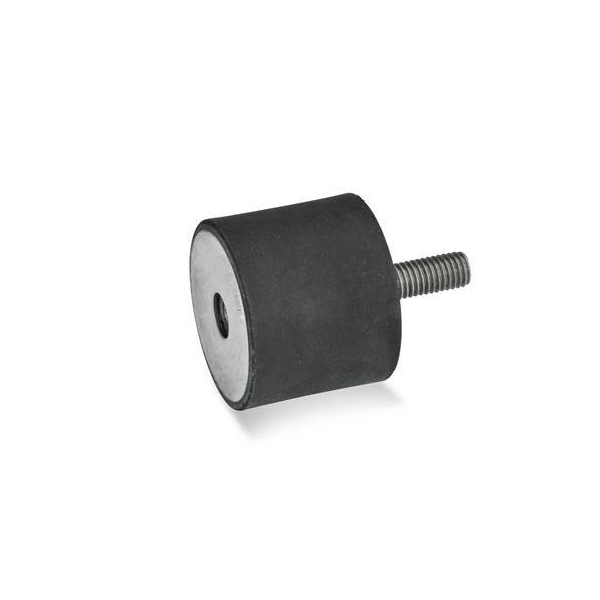

Vibration-Isolating Mount, 40 mm H
| Item | Vibration-Isolating Mount |
|---|---|
| Height | 1.57 in |
| Thread Size | M8 |
| Resistant To | Abrasion; Wear |
| Mounting | Compressor, Pump, Motor |
| Maximum Load Downward Compression | 209 lbf |
| Durometer | 55A |
| Maximum Load Sideways Shear | 542 lbf |
| Overall Diameter | 30 mm |
| Shape | Cylindrical |
| Isolator Material | Natural Rubber |
| Stud Length | 20 mm |
| Tap Depth | 8 mm |
| Stud or Tap Material | Stainless Steel |
| Vibration Isolator Style | One Tapped Hole and One Threaded Stud |
| Maximum Operating Temperature | 176 deg F |
| Overall Height | 40 mm |
| Operating Temperature - Minimum | -40 Degrees F |
| FDA Approved | Not FDA Approved |
| Operating Temperature - Maximum | 176 deg F |
| Load Downward Compression - Maximum | 929.68 N |
| Load Sideways Shear - Maximum | 2,410.94 N |
| Mounting Style | Compression |
| Package Quantity | 1 |
