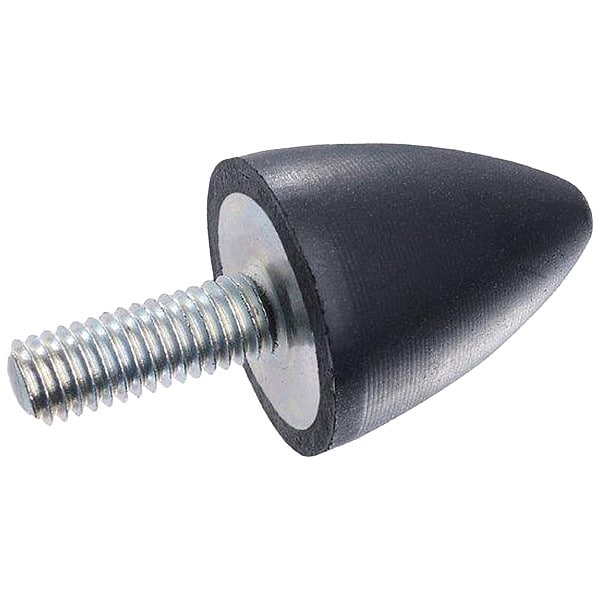

Vibration-Isolating Mount, 89 mm H
| Item | Vibration-Isolating Mount |
|---|---|
| Height | 3-1/2 in |
| Thread Size | M12 |
| Mounting | Conveyor |
| Resistant To | Abrasion; Wear |
| Vibration Isolator Style | One Threaded Stud |
| Maximum Load Downward Compression | 441 lbf |
| Shape | Conical |
| Maximum Load Sideways Shear | 560 lbf |
| Durometer | 55A |
| Overall Diameter | 75 mm |
| Isolator Material | Natural Rubber |
| Stud Length | 37 mm |
| Maximum Operating Temperature | 176 deg F |
| Stud or Tap Material | Zinc-Plated Steel |
| Overall Height | 89 mm |
| Operating Temperature - Maximum | 176 deg F |
| Load Sideways Shear - Maximum | 98 N |
| Operating Temperature - Minimum | -40 Degrees F |
| FDA Approved | Not FDA Approved |
| Load Downward Compression - Maximum | 1,960 N |
| Tap Depth | Not Applicable |
| Package Quantity | 1 |
