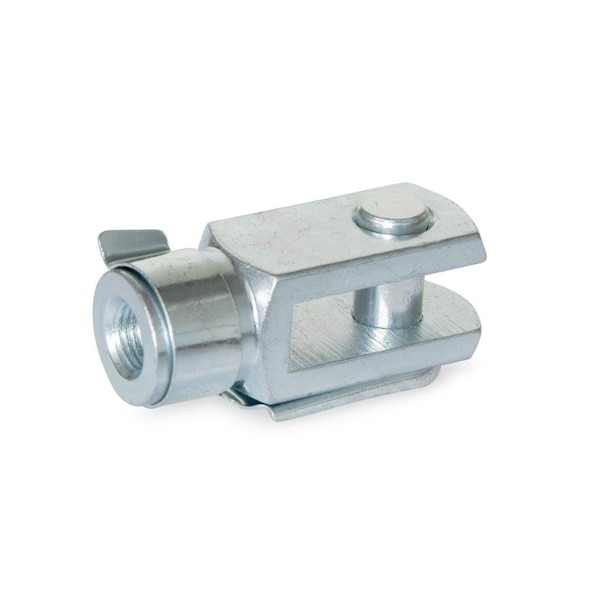

Wn751-B1/4-24-1/4X28L-B Fork Head Steel
| Material | Steel zinc-plated |
|---|---|
| Length | 43 mm |
| Primary Application | Clevis fork joints WN 751 are mainly used with pneumatic or hydraulic cylinders. They consist of a clevis fork head and a pin with snap-on securing collar. |
| Width | 13 mm |
| Thread Size | 1/4 x 28L" |
| Finish | Blue passivated finish |
| Includes | Pin with snap-on securing collar |
| Fork Opening Width | 6 mm |
| Fork Center Length | 24 mm |
| Bore Dia. | 1/4 in |
| Package Quantity | 1 |
