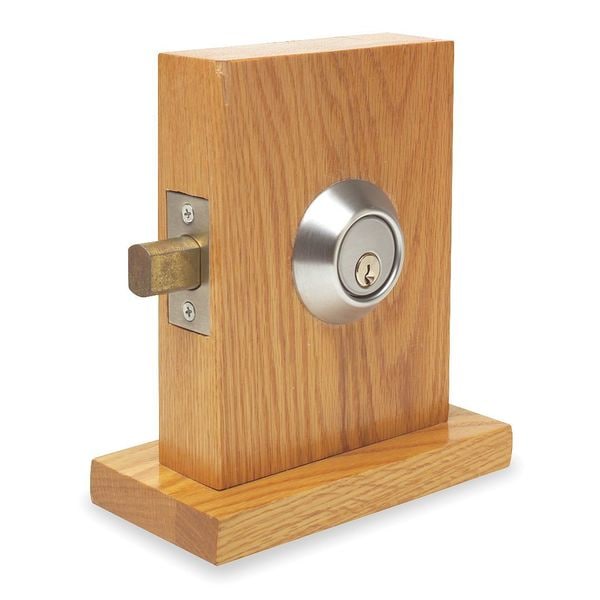

Deadbolt, HD, Satin Chrome
| Mortise / Cylindrical | Cylindrical |
|---|---|
| Location Type | Commercial |
| Lockset Grade | 2 |
| Series | KABA ILCO |
| For Door Thickness | 1-3/8 to 1-3/4 in |
| Lockset Finish | Satin Chrome |
| Keyway Type | Schlage SC1 |
| Key Type | Keyed Different |
| Standards | FDA Approved |
| ADA Compliant | Yes |
| Item | Deadbolt Lock |
| Strike Dim. | 1-1/4 in x 2-3/4 in |
| Includes | Installation instructions |
| Strike | Square Corner |
| Security Type | Heavy-Duty |
| Cylinder | Single |
| Backset | 2-3/4 in |
| Material | Zinc |
| Pins | 5 |
| Number of Keys | 2 |
| Throw Length | 1 in |
| For Use With | Various Door Styles |
| Faceplate Dimensions | 1-1/8 in x 2-1/4 in |
| Mortise/Cylindrical | Cylindrical |
| Lockset Fire Rating | Not Rated |
| Ligature Resistant | No |
| Finish | Satin Chrome |
| Keying | Different |
| Application | Commercial |
| Type | Standard Bolt, Single with Cylinder |
| Grade | 2 |
| Number of Pins | 5 |
| Front Size Dimension | 1-1/8 in x 2-1/4 in |
| Ligature-Resistant | Not Ligature-Resistant |
| Strike Plate Height | 2-3/4 in |
| Strike Plate Width | 1-1/4 in |
| Faceplate Width | 1-1/8 in |
| Locking/Unlocking Access - Inside | Thumb Turn |
| Includes Core | Core Included |
| Door Thickness - Minimum | 1-3/4 in |
| Faceplate Height | 2-1/4 in |
| Fire Rating | Not Applicable |
| Cylinder Core Type | Conventional Core Cylinder |
| Visual Indicator Message | No Message |
| ANSI Grade | 2 |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Door Thickness - Maximum | 1-3/8 in |
| Locking/Unlocking Access - Outside | Thumb Turn |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
