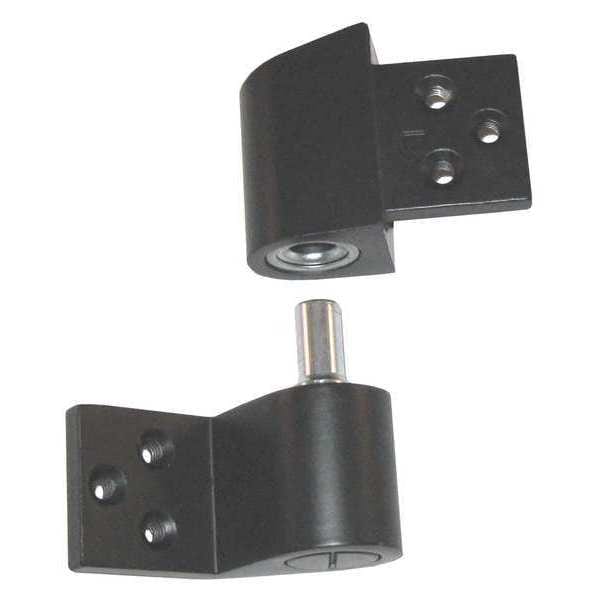

Pivot Hinge, Diecast Aluminum, Surface Mounting, 3/4 in Leaf H, Duronotic Dark Bronze
| Item | Pivot Hinge |
|---|---|
| Material | Diecast Aluminum |
| Finish | Duronotic Dark Bronze |
| Load Capacity | 125 lb |
| Ligature Resistant | No |
| Range of Motion | 180 deg |
| Orientation | Left Hand |
| Mounting | Surface |
| Bearing Type | Ball |
| Holes per Leaf | 3 |
| Frame Leaf Height | 3/4 in |
| Frame Leaf Thickness | 0.323 in |
| Door Leaf Width | 1-11/32 in |
| Door Leaf Height | 3/4 in |
| Door Leaf Thickness | 0.323 in |
| Number of Wires | 0 |
| Hardware | Included |
| Holes | With |
| Pin Dia. | 15/64 in |
| Features | 3/4" Offset |
| Includes Hardware | Hardware Included |
| Includes Holes | Holes Included |
| Range of Motion - Maximum | 180 deg |
| ANSI/BHMA Finish | Oil Rubbed, Oxidized Satin Bronze-Plated |
| Number of Holes per Leaf | 5 |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
