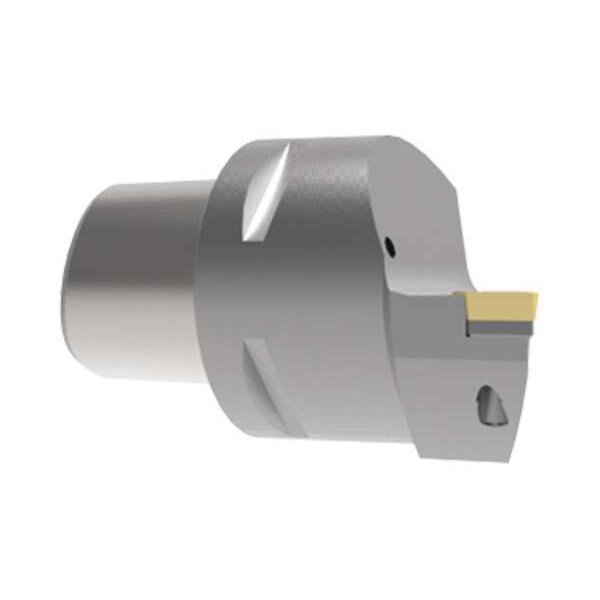

Turning Tool Holder, 581.0511.384, PSK 63
| For Use With | Cutting Tools |
|---|---|
| Type | PSK 63 |
| Rake | DCMT 11T308 |
| Item | Indexable Cutting Head Unit |
| Clamp Screw | 581.103 |
| Torx Wrench | T-15 |
| Style | SDJCL-45065-11 |
| Insert Shape | 55 Degrees Diamond |
| Shank Width | 45 mm |
| Includes | Base Plate, Clamping Unit |
| Cutting Direction | Left Hand |
| Overall Length | 103 mm |
| Standards | ISO 26623-1 |
| Head Length | 65 mm |
| Insert Cutting Edge Length | 11 mm |
| Coolant Fed | Coolant Through |
| Insert Size | 11T308 |
| Insert Style | DCMT |
| Insert Inscribed Circle | 3/8 in |
| Shank Height | 65 mm |
| Approach Angle | 93 deg |
| Cutting Application | Turning |
| Insert Clearance Angle | 7 deg |
| Insert Holding Type | Screw On |
| Mounting Style | Screw Clamp |
| Package Quantity | 1 |
