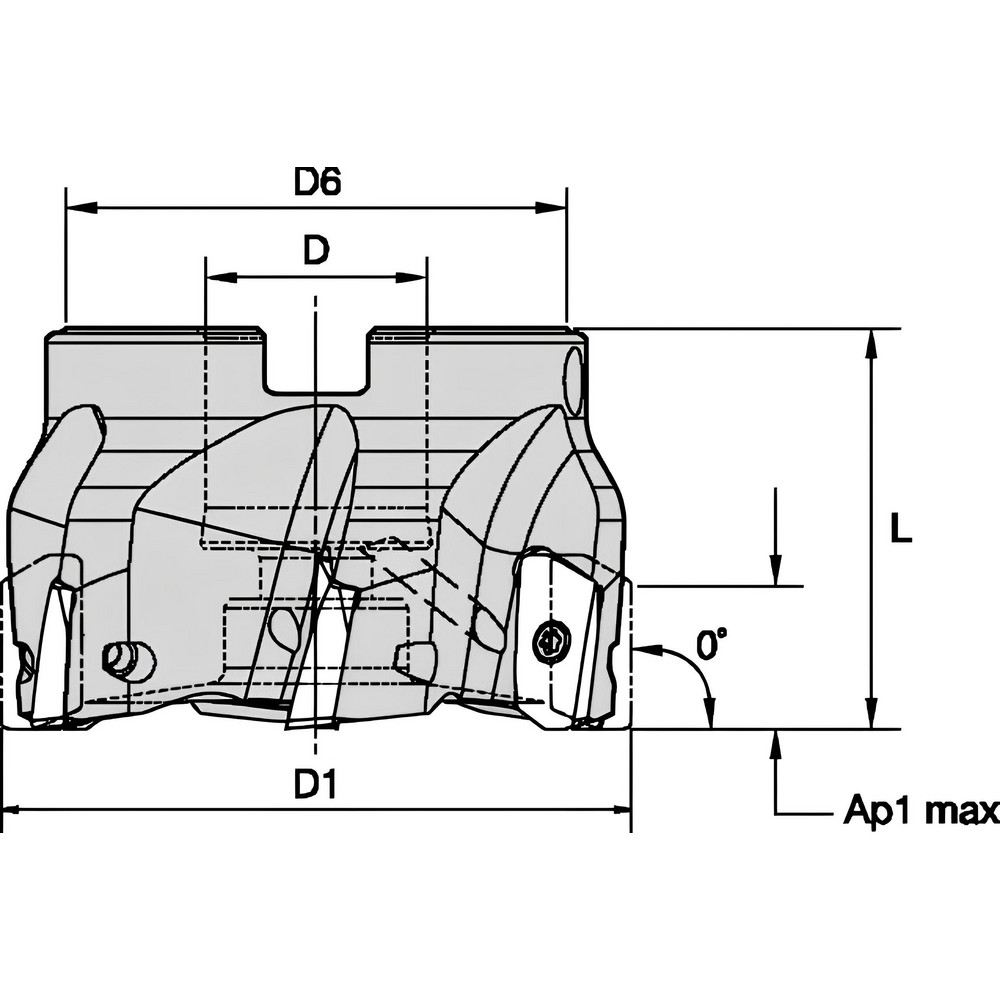

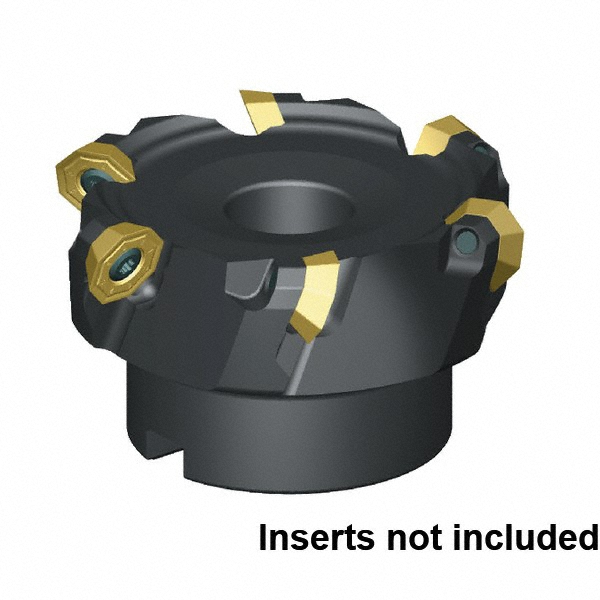

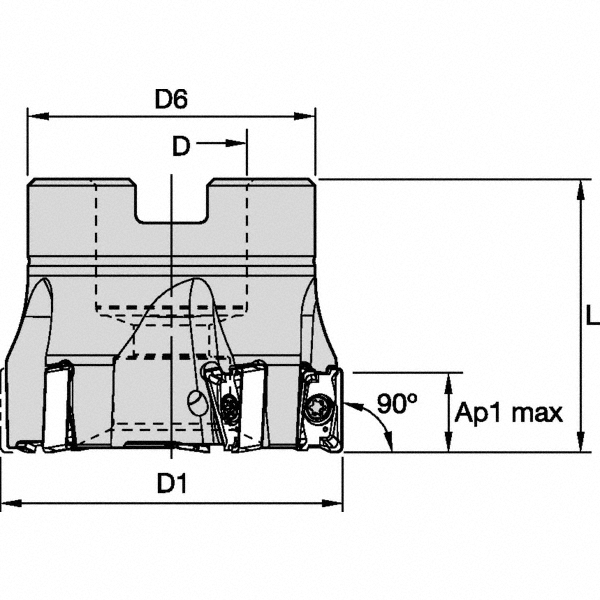

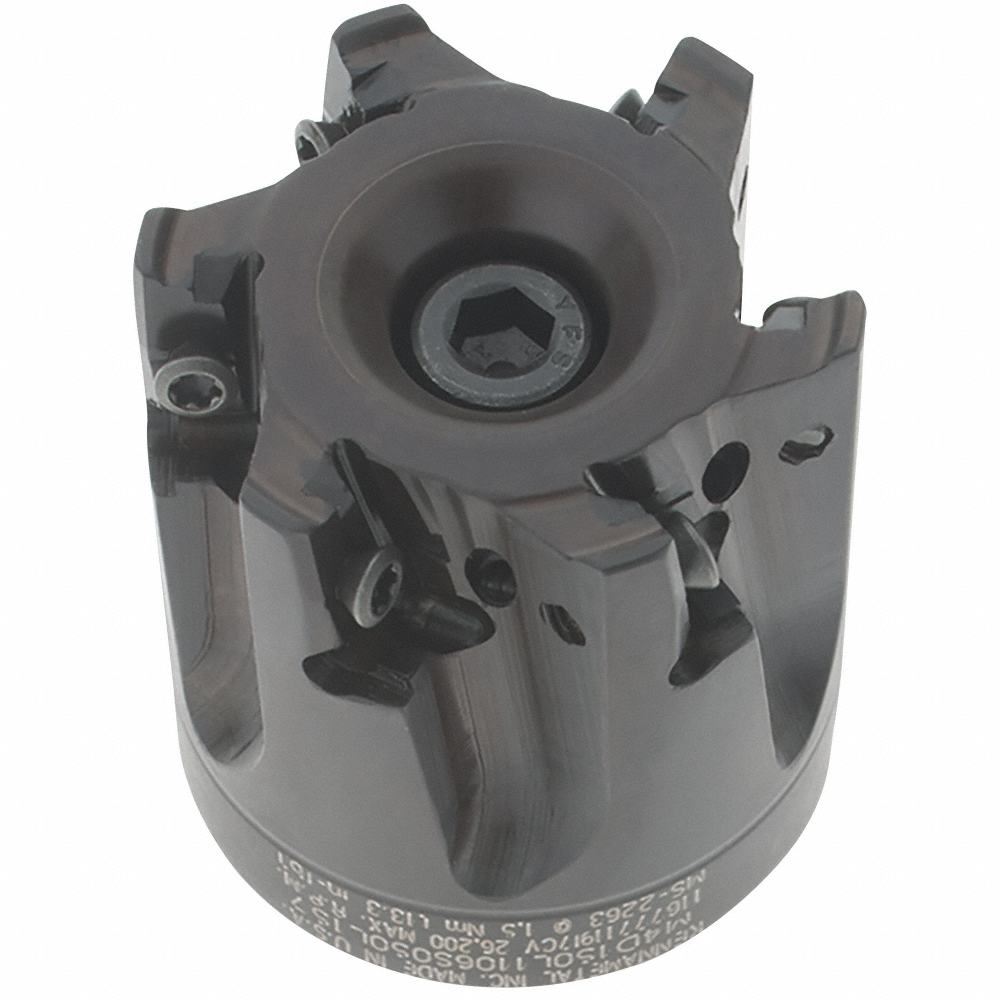

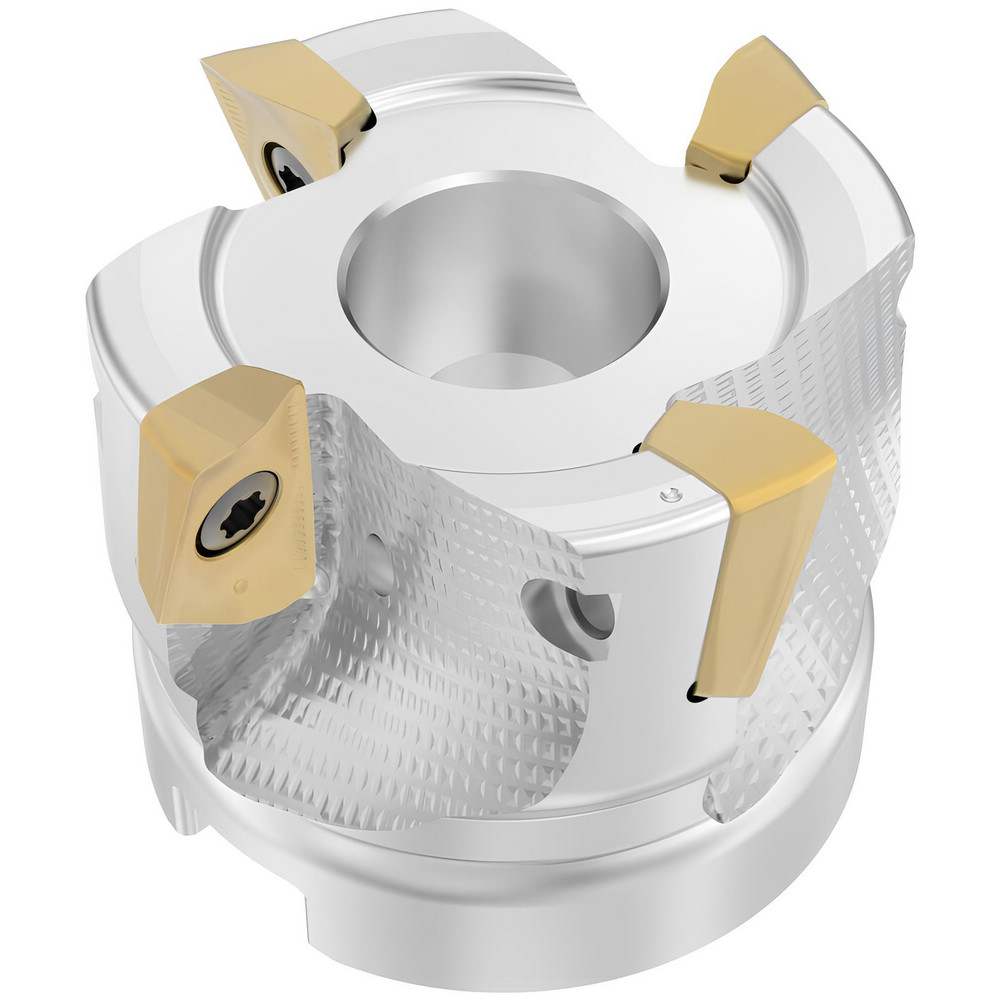

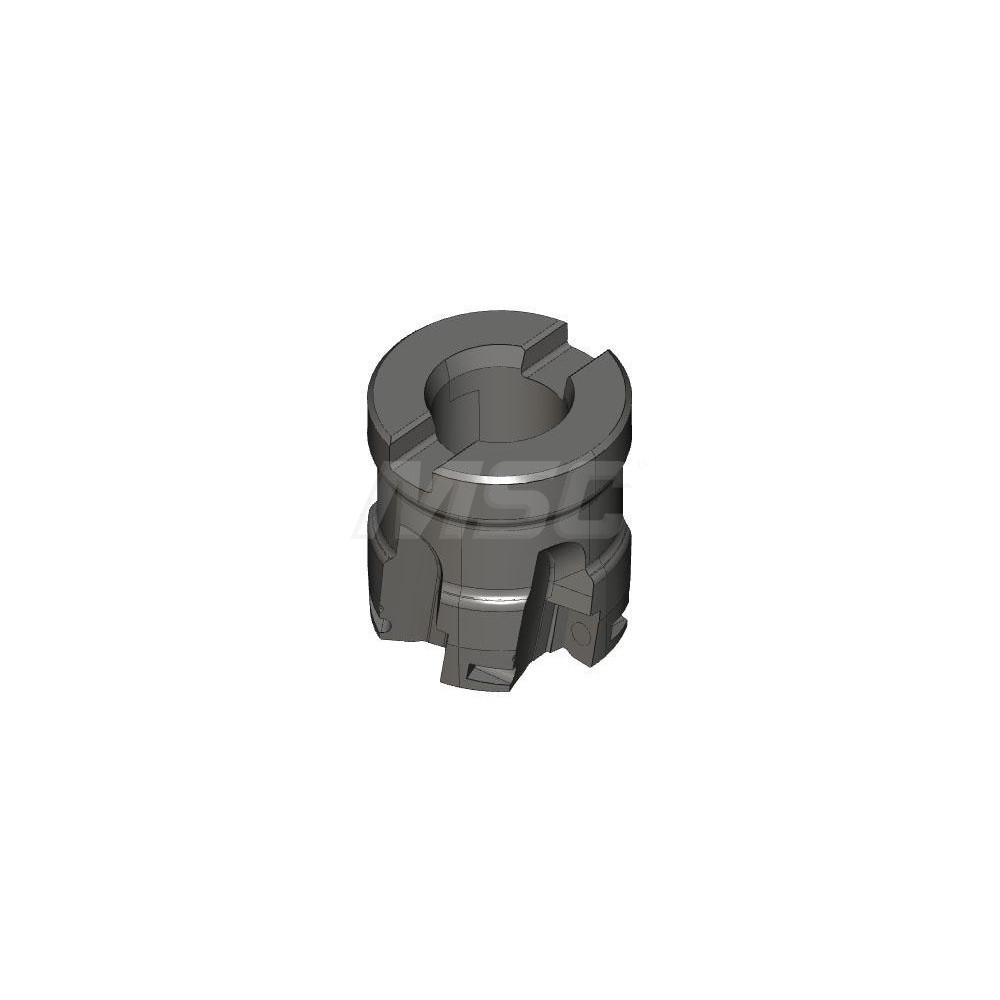

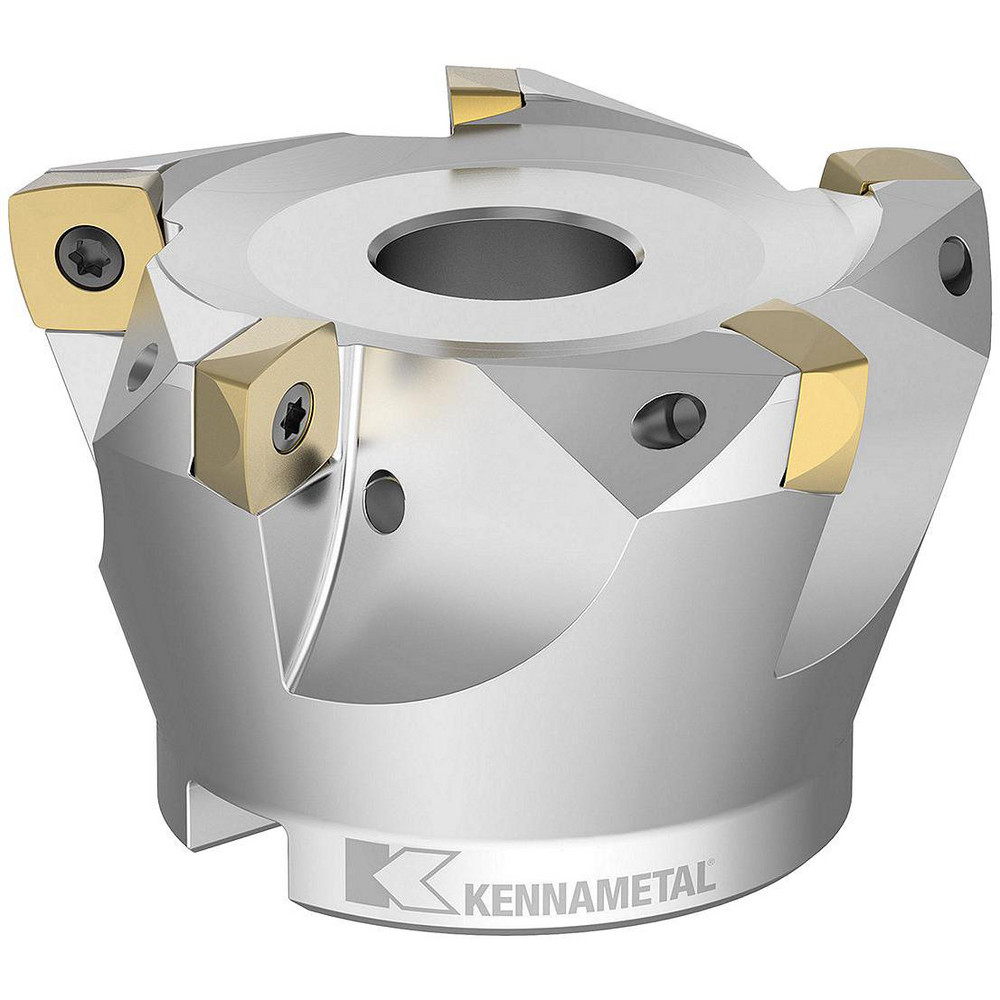

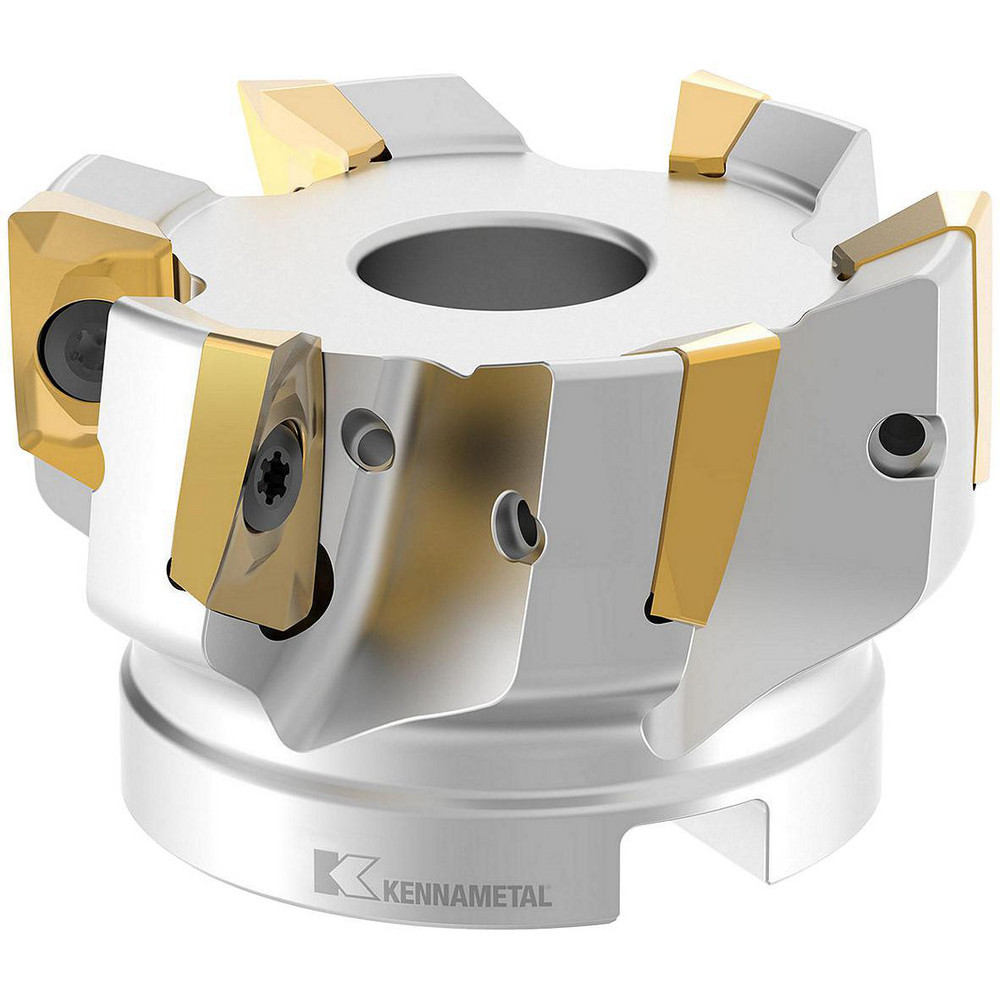

Takes 4 Inserts, 0/90° Lead Angle, 40mm High, E.. 14.. Insert Style, Through Coolant, Series Mill 1-14
| Maximum Cutting Diameter (Inch) | 1-1/4 |
|---|---|
| Maximum Cutting Diameter (mm) | 31.75 |
| Maximum Depth of Cut (mm) | 14.48 |
| Maximum Depth of Cut (Decimal Inch) | 0.5700 |
| Arbor Hole Diameter (mm) | 12.70 |
| Arbor Hole Diameter (Inch) | 1/2 |
| Arbor Hole Diameter (Decimal Inch) | 0.5000 |

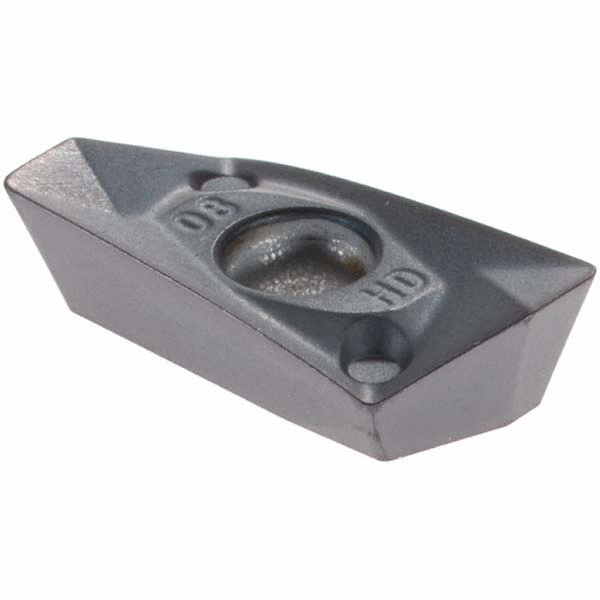

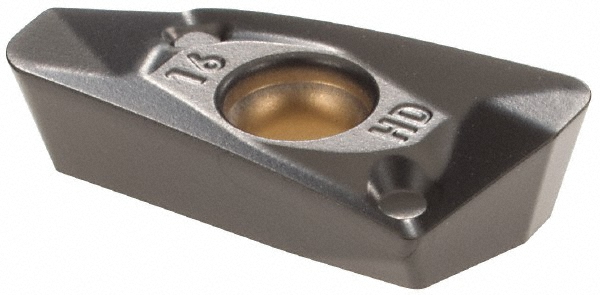

| Compatible Insert Size Code | E.. 14.. |
| Cutter Style | Mill 1 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0/90 |
| Series | Mill 1-14 |
| Maximum Body Diameter (Decimal Inch) | 1.2190 |
| Overall Height (Decimal Inch) | 1.5748 |
| Hub Diameter (mm) | 30.58 |
| Hub Diameter (Decimal Inch) | 1.2040 |
| Coolant Hole Diameter (Decimal Inch) | 0.1180 |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 4 |
| Number Of Flutes | 4 |
| Country of Origin | Brazil |
| MSC Number | MSC# 46869640 |
