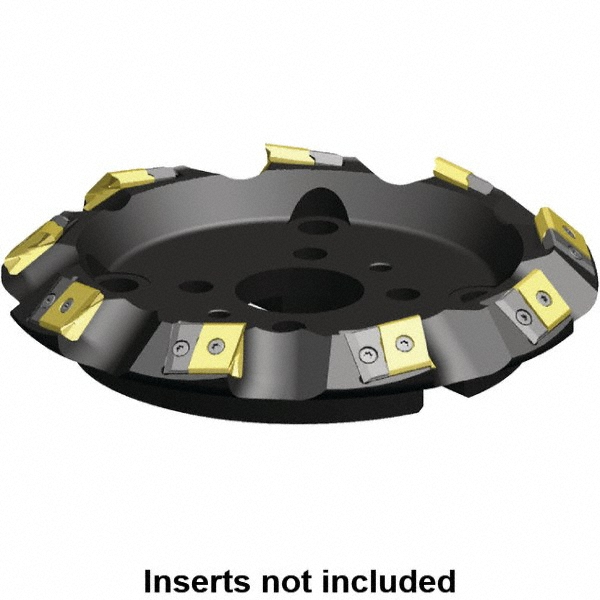

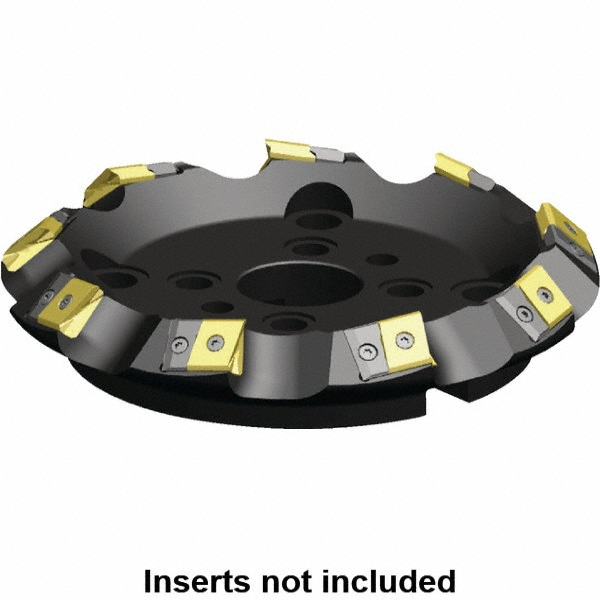

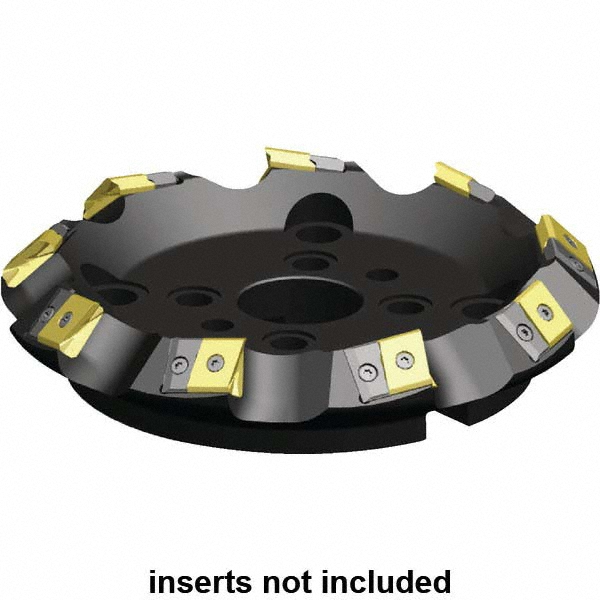

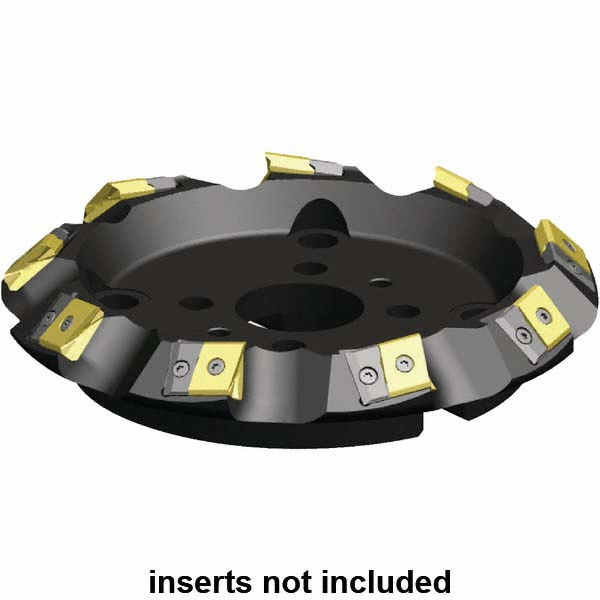

Takes 13 Inserts, LN.U 2410... Insert, Right Hand Cut, 13 Flutes, Series MEGA45
| Minimum Cutting Diameter (Decimal Inch) | 12.0000 |
|---|---|
| Minimum Cutting Diameter (Inch) | 12 |
| Maximum Cutting Diameter (Decimal Inch) | 13.3920 |
| Maximum Depth of Cut (mm) | 17.15 |
| Maximum Depth of Cut (Decimal Inch) | 0.6750 |
| Arbor Hole Diameter (mm) | 63.50 |
| Arbor Hole Diameter (Decimal Inch) | 2.5000 |
| Arbor Hole Diameter (Inch) | 2-1/2 |
| Compatible Insert Size Code | LN.U 2410 |
| Cutter Style | MEGA |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | MEGA45 |
| Hub Diameter (mm) | 225.00 |
| Hub Diameter (Decimal Inch) | 8.8583 |
| Overall Height (Decimal Inch) | 3.1496 |
| Maximum Body Diameter (Decimal Inch) | 13.5000 |
| Maximum RPM | 8080 |
| Complete Insert Compatibility | LN.U 241012ANSR |
| Number Of Cutter Inserts | 13 |
| Coolant Through | No |
| Number Of Flutes | 13 |
| UNSPSC Code | 23291600 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 70751797 |
