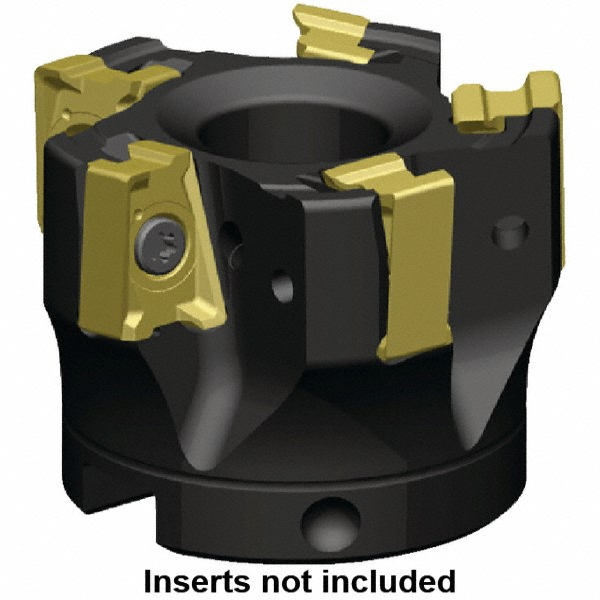

Takes 7 Inserts, 0° Lead Angle, 63mm High, LNGU15T608SRGE Insert Style, Through Coolant, Series MILL 4-15
| Maximum Cutting Diameter (mm) | 125.00 |
|---|---|
| Maximum Depth of Cut (mm) | 15.50 |
| Arbor Hole Diameter (mm) | 40.00 |
| Compatible Insert Size Code | LNGU15T608SRGE |
| Cutter Style | M4 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0 |
| Series | MILL 4-15 |
| Maximum Body Diameter (Decimal Inch) | 4.7970 |
| Overall Height (Decimal Inch) | 63.00 |
| Hub Diameter (mm) | 90.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1180 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 7 |
| Number Of Flutes | 7 |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 47499850 |
