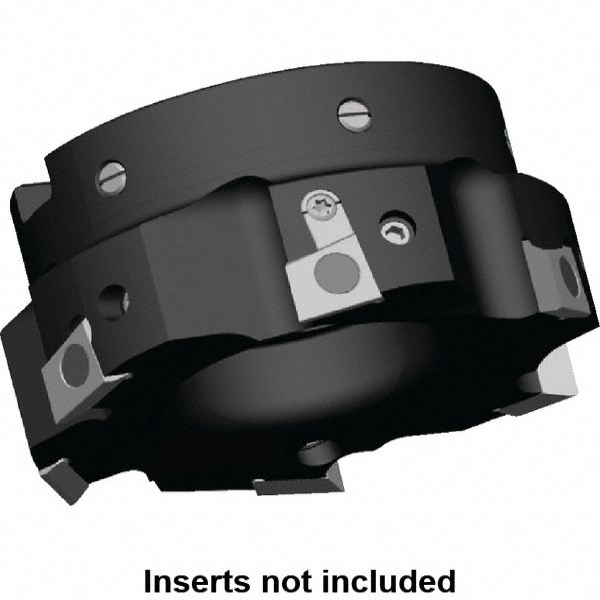

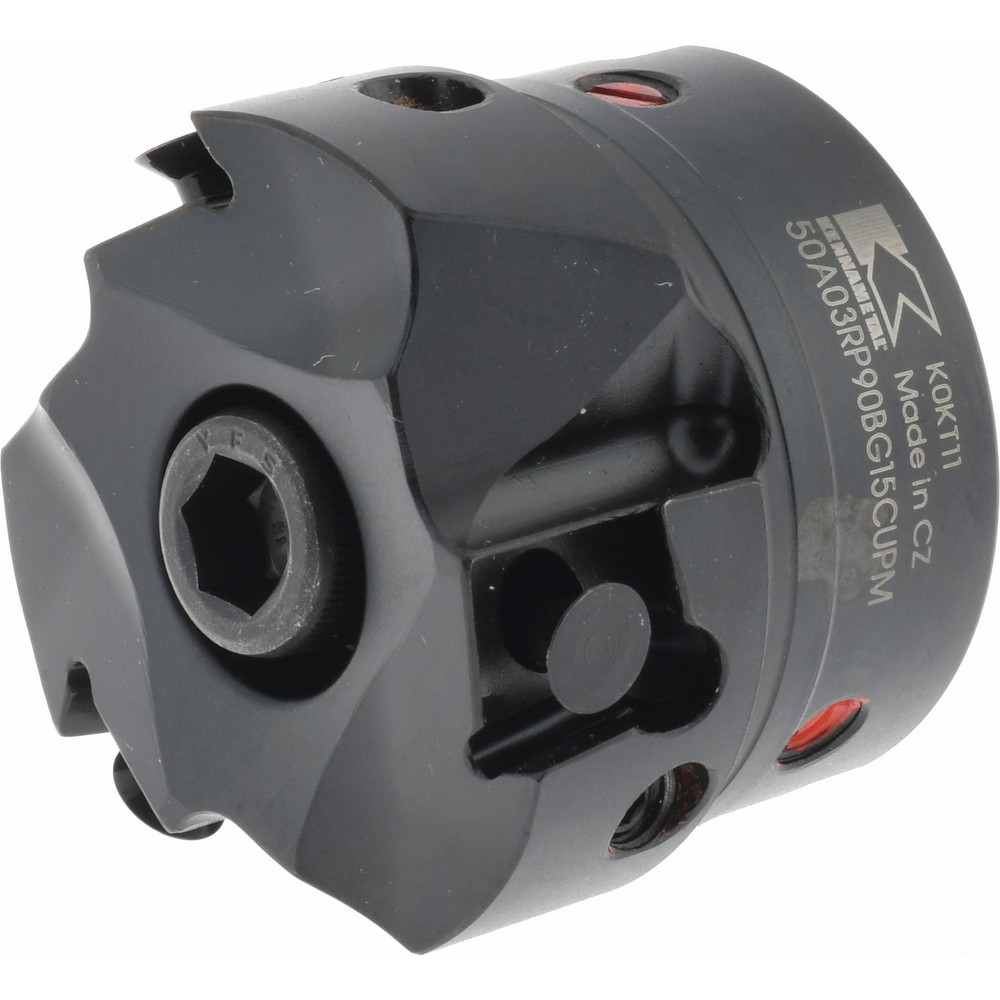

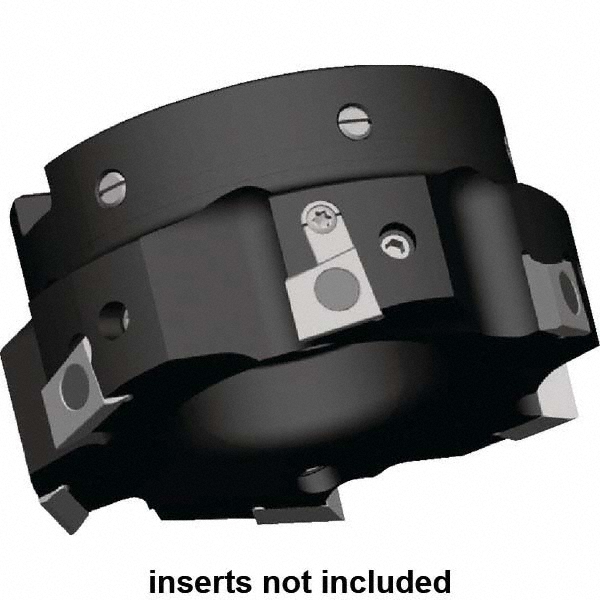

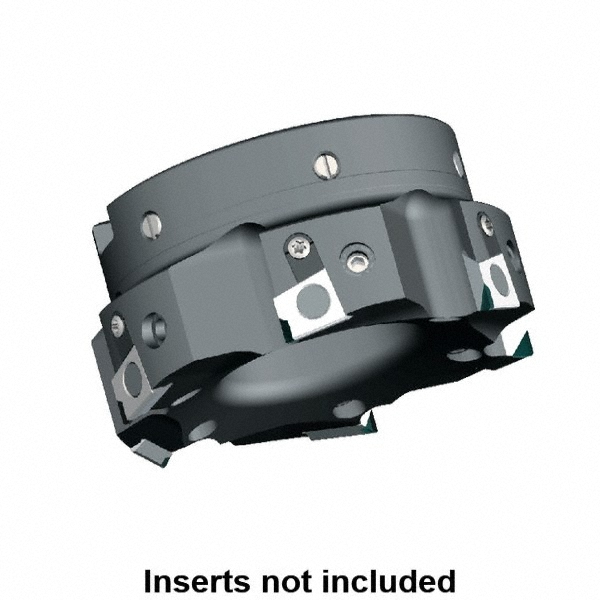

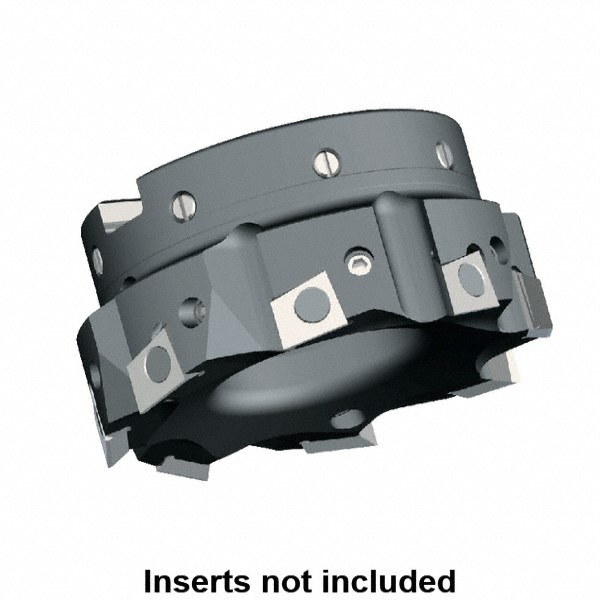

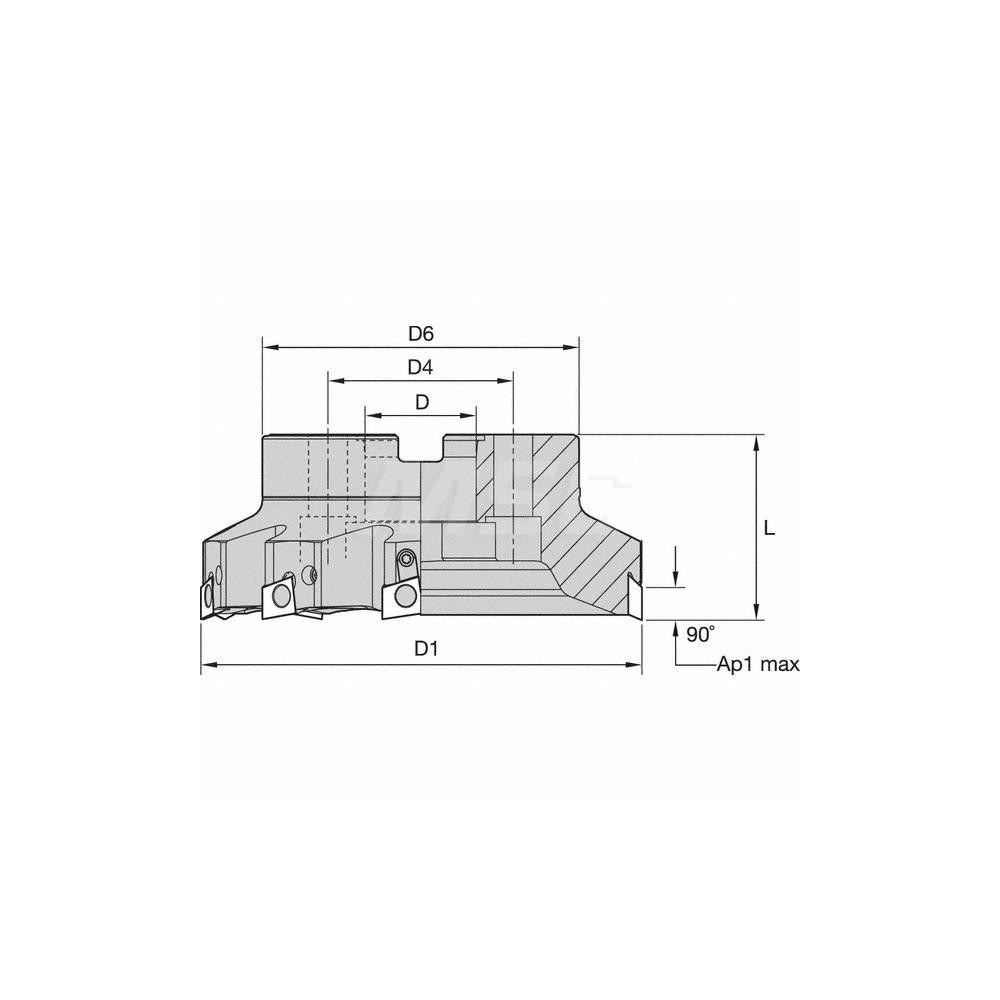

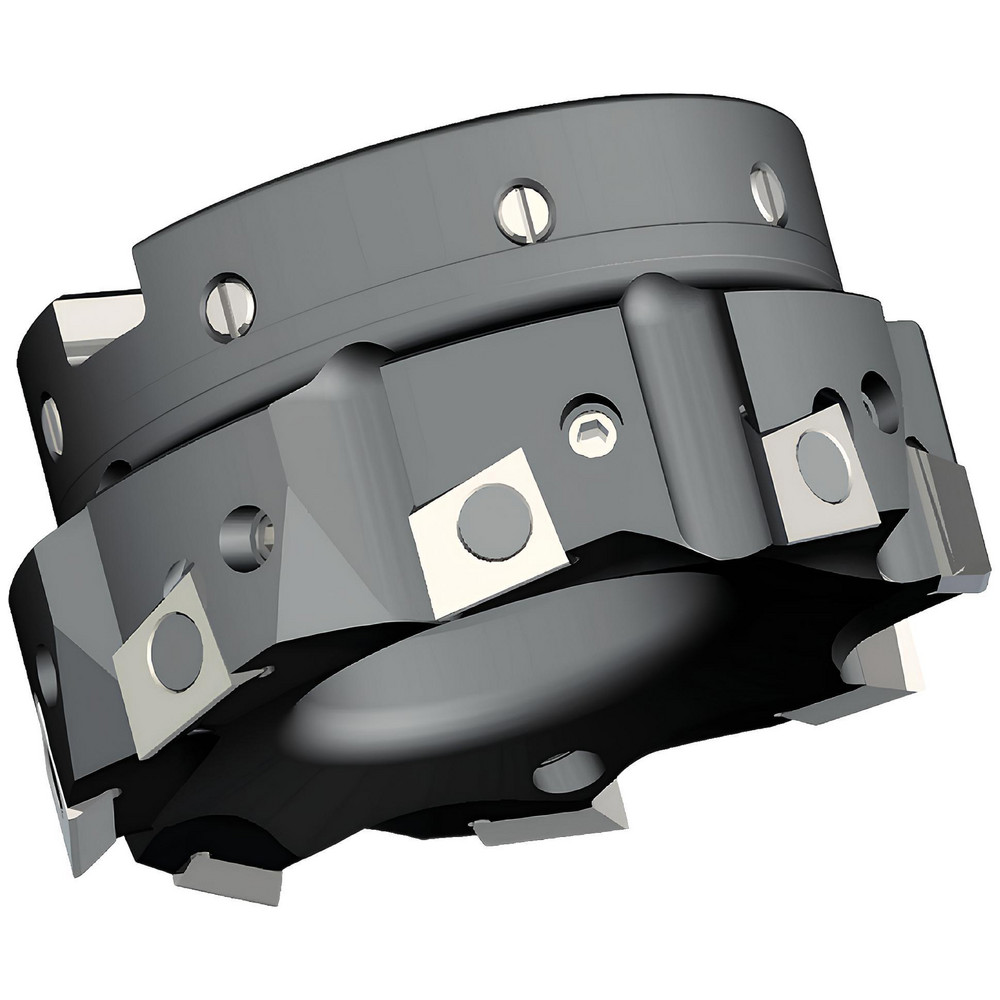

Takes 8 Inserts, 0/90° Lead Angle, 63mm High, BGHX 15L5... Insert Style, Series Fix-Perfect
| Maximum Cutting Diameter (Decimal Inch) | 4.9213 |
|---|---|
| Maximum Cutting Diameter (mm) | 125.00 |
| Maximum Depth of Cut (mm) | 9.50 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Compatible Insert Size Code | BGHX 15L5... |
| Cutter Style | PM |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0/90 |
| Series | Fix-Perfect |
| Overall Height (Decimal Inch) | 2.4803 |
| Hub Diameter (mm) | 94.00 |
| Hub Diameter (Decimal Inch) | 3.7008 |
| Number of Adjustable Pockets | 2 |
| Complete Insert Compatibility | BGHX 15L5PC.R.. |
| UNSPSC Code | 27112803 |
| Number Of Cutter Inserts | 8 |
| Number Of Flutes | 8 |
| Country of Origin | Czechia |
| MSC Number | MSC# 46863262 |
