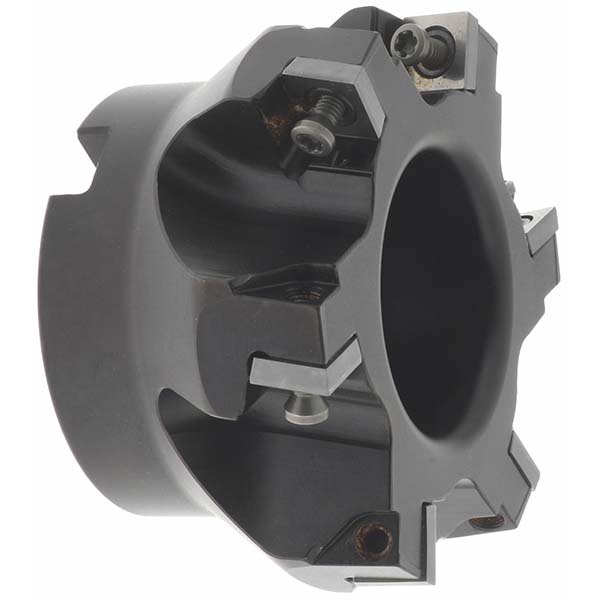

Takes 5 Inserts, 0/90° Lead Angle, 1-3/4" High, SD.T 43.. Insert Style, Series KSSM
| Maximum Cutting Diameter (Inch) | 2 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.3610 |
| Arbor Hole Diameter (mm) | 19.05 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | SD.T 43.. |
| Cutter Style | KSSISR |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 0/90 |
| Series | KSSM |
| Maximum Body Diameter (Decimal Inch) | 1.9260 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Keyway Width (Decimal Inch) | 0.3300 |
| Hub Diameter (Decimal Inch) | 1.6250 |
| Pitch Type | Fine |
| Complete Insert Compatibility | SDCW 43PDSR8GN; SDPT 43PDER8GB2; SDCW 433PDSR8GN; SDPT 43PDSR8GB2 |
| UNSPSC Code | 27112803 |
| Coolant Through | No |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
| Country of Origin | Czechia |
| MSC Number | MSC# 01042597 |
