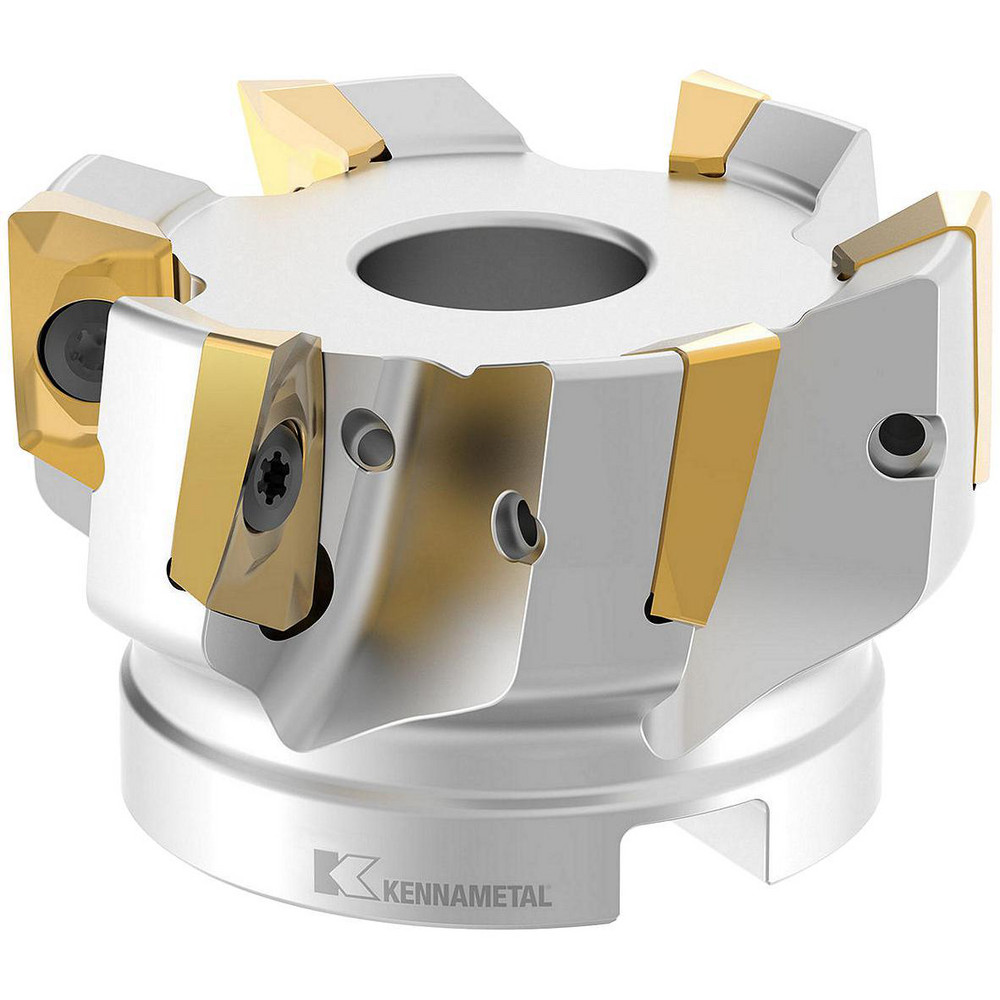

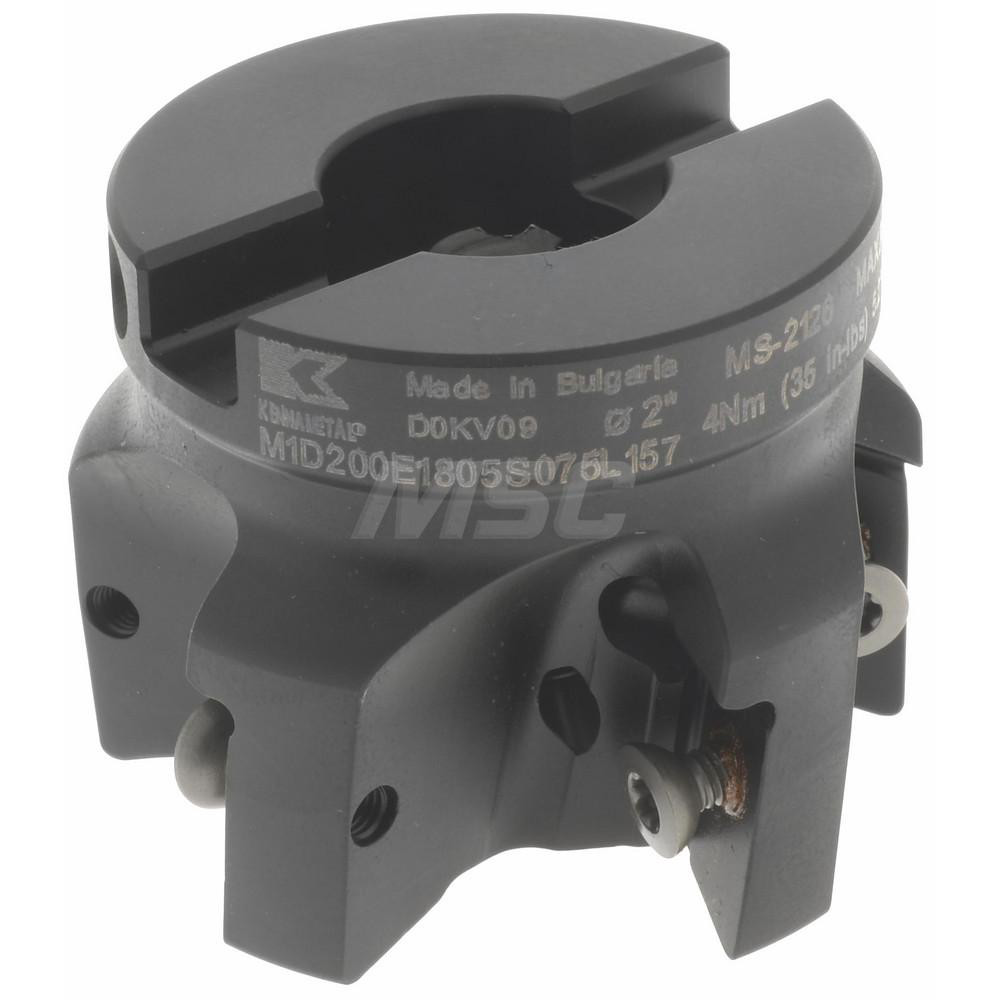

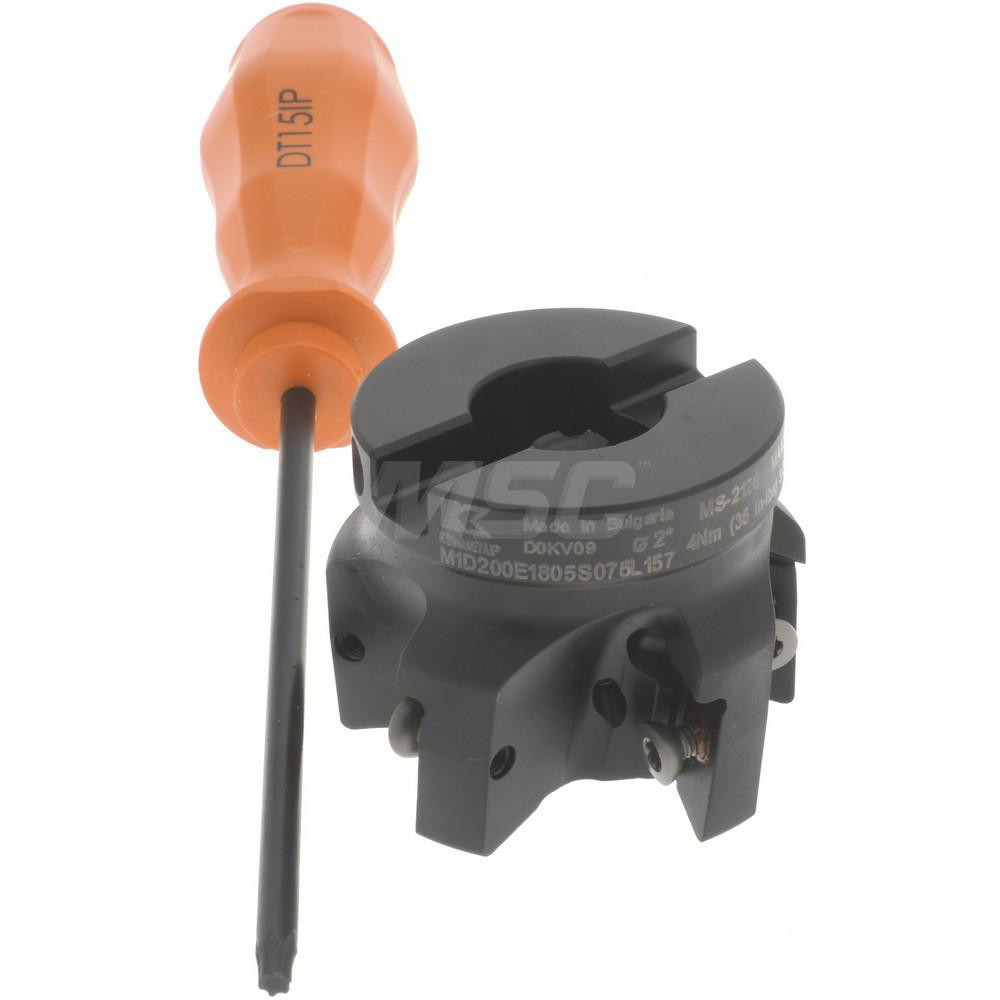

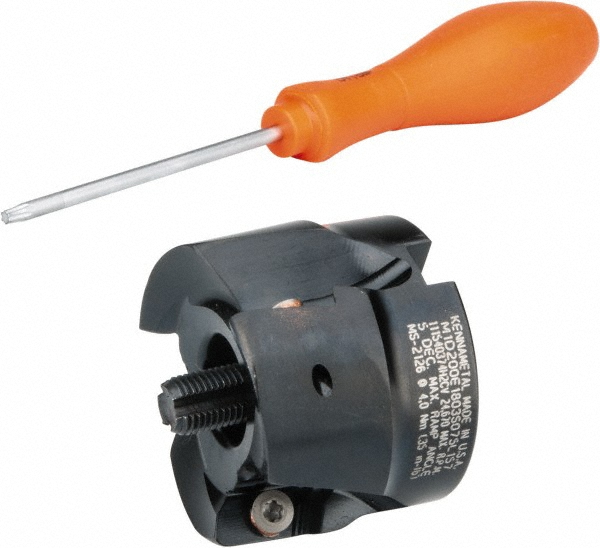

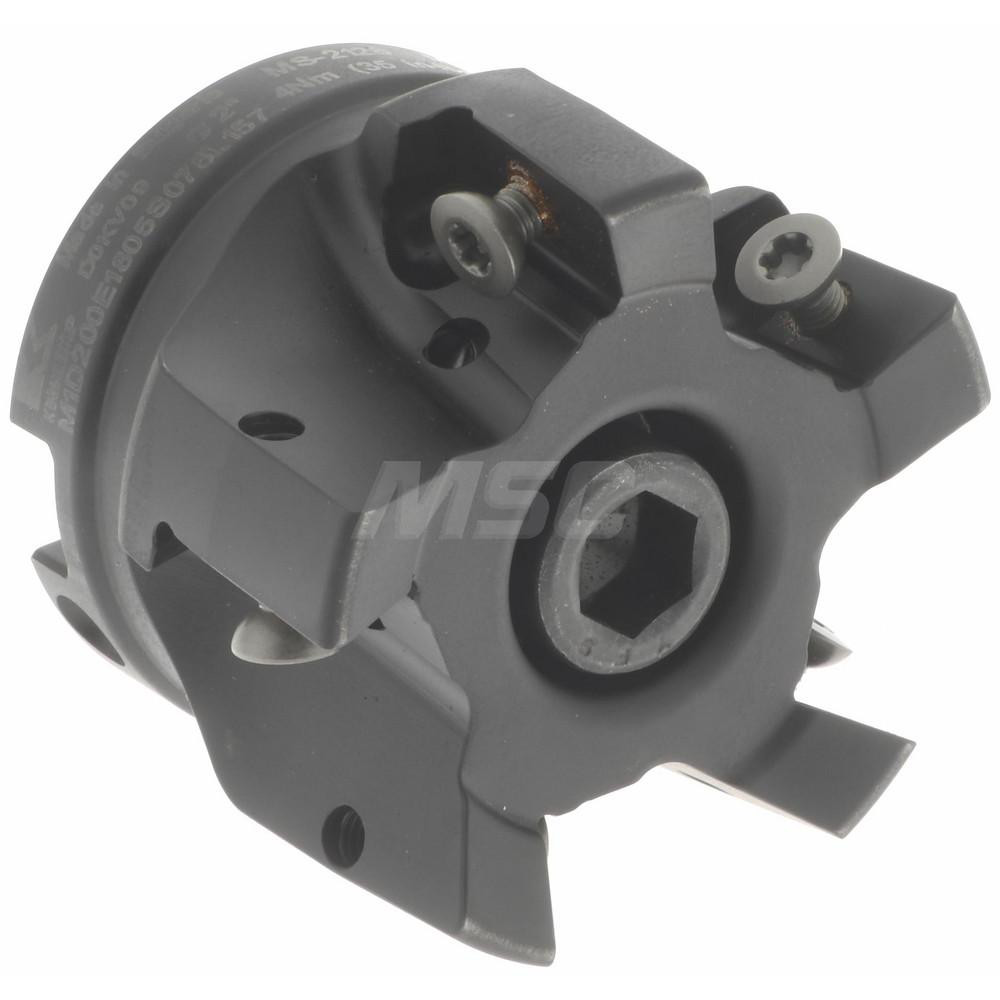

Takes 5 Inserts, 0/90° Lead Angle, 40.01mm High, EC18.., EP18.. Insert Style, Through Coolant, Series Mill 1-18
| Maximum Cutting Diameter (Inch) | 2 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Cutting Diameter (mm) | 50.80 |
| Maximum Depth of Cut (mm) | 18.03 |
| Maximum Depth of Cut (Decimal Inch) | 0.7100 |
| Arbor Hole Diameter (mm) | 19.05 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |

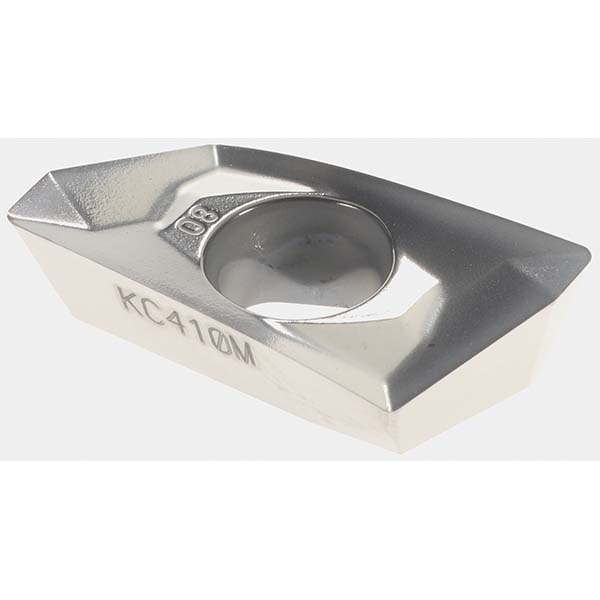

| Compatible Insert Size Code | EC18..; EP18.. |
| Cutting Direction | Right Hand |

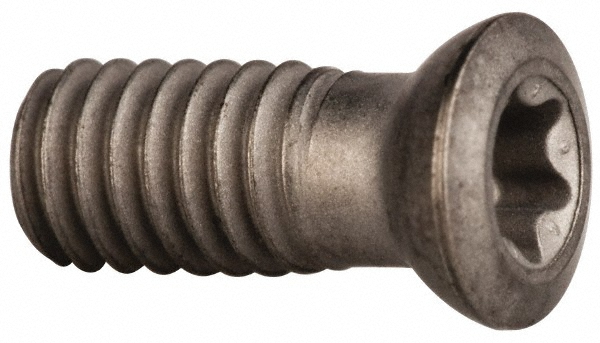

| Insert Holding Method | Screw |
| Lead Angle | 0/90 |
| Series | Mill 1-18 |
| Maximum Body Diameter (Decimal Inch) | 1.9340 |
| Overall Height (Decimal Inch) | 1.5750 |
| Keyway Width (mm) | 8.41 |
| Keyway Width (Decimal Inch) | 0.3311 |
| Hub Diameter (mm) | 44.45 |
| Hub Diameter (Decimal Inch) | 1.7500 |
| Hub Diameter (Inch) | 1-3/4 |
| Coolant Hole Diameter (Decimal Inch) | 3.0000 |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
| Country of Origin | VARIOUS |
| undefined | undefined |
| Pros | No Pros |
| Cons | No Cons |
| Value | 5 |
| MSC Number | MSC# 01230796 |
