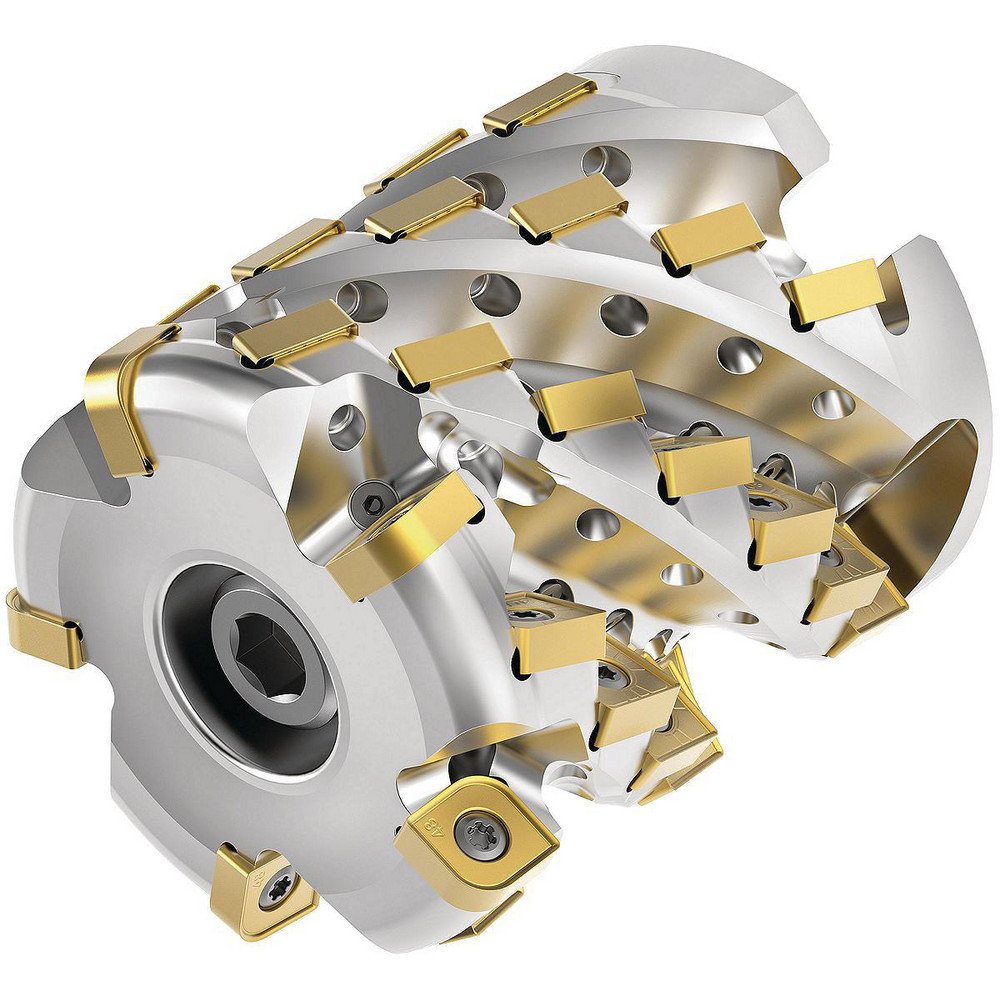

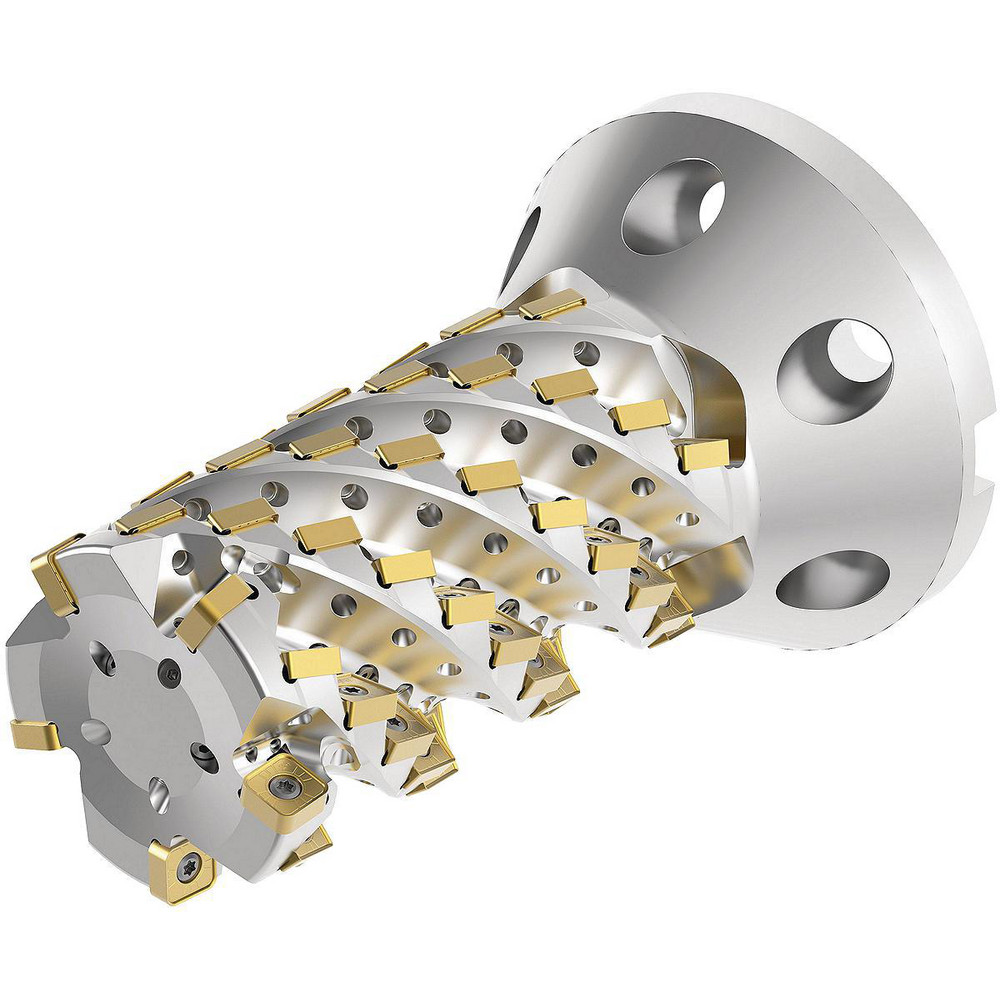

Takes 56 Inserts, 0° Lead Angle, 7-1/2" High, SNHJ1004.. Insert Style, Through Coolant, Series HARVI Ultra 8X
| Maximum Cutting Diameter (Inch) | 2 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 4.2222 |
| Arbor Hole Diameter (Inch) | 4-5/8 |
| Compatible Insert Size Code | SNHJ1004.. |
| Cutter Style | HU8X |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0 |
| Series | HARVI Ultra 8X |
| Maximum Body Diameter (Decimal Inch) | 1.8849 |
| Overall Height (Inch) | 7-1/2 |
| Coolant Hole Diameter (Decimal Inch) | 0.0315 |
| Complete Insert Compatibility | SNHJ100408SNGDH; SNHJ100464SNGDH |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 56 |
| Number Of Flutes | 4 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 43001445 |
