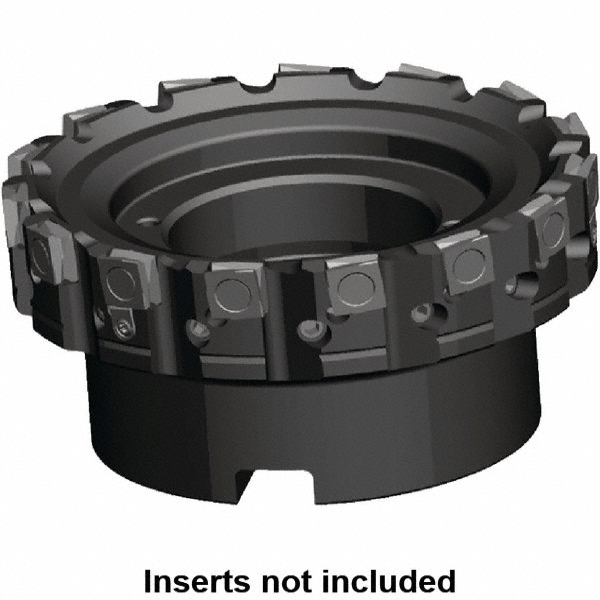

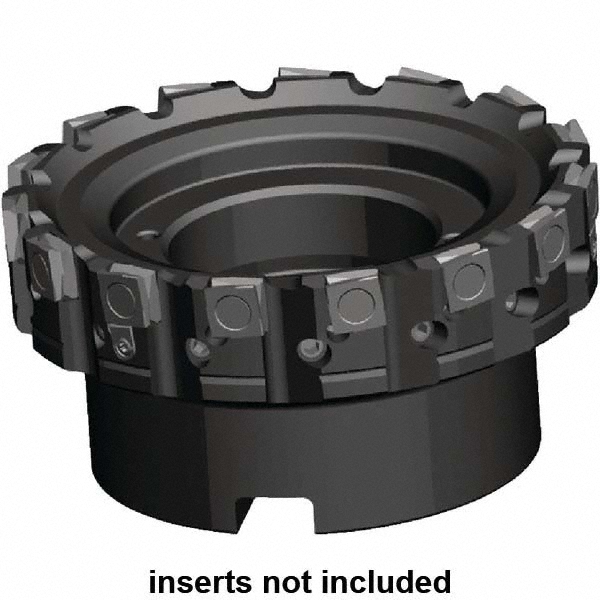

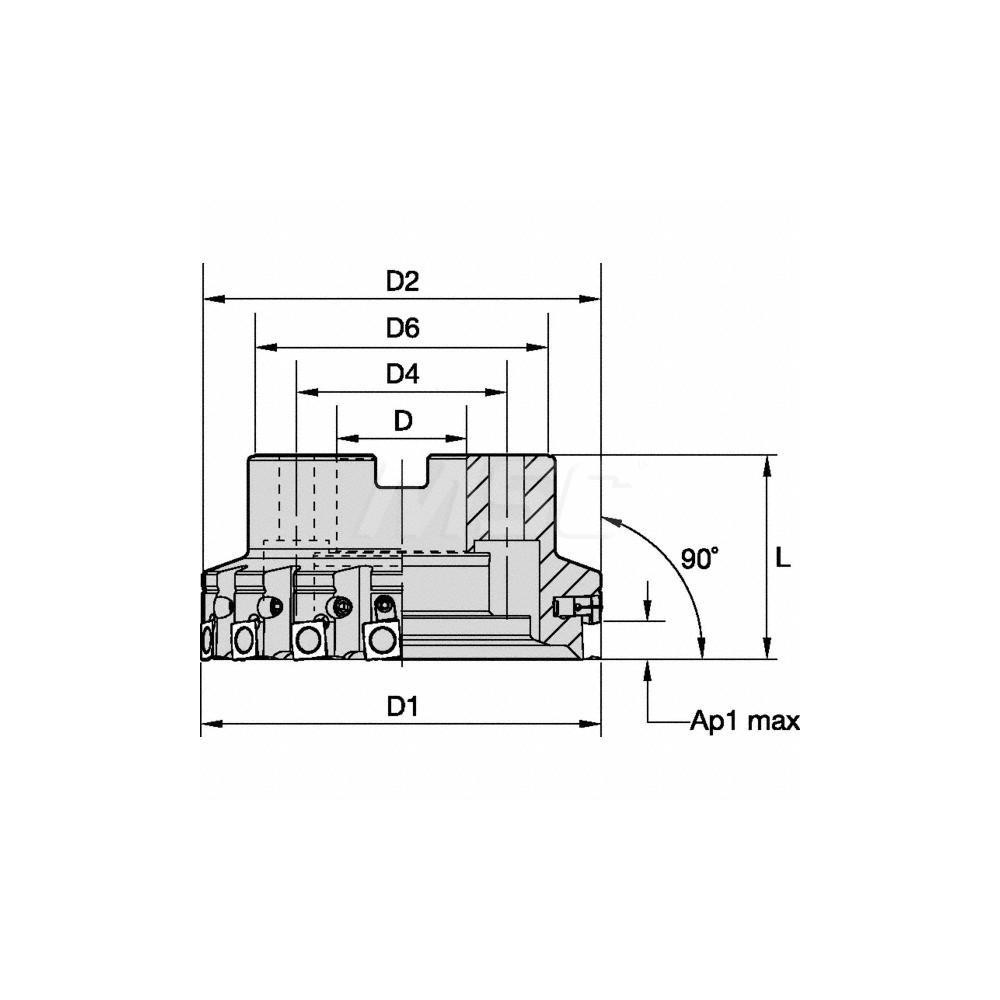

Takes 24 Inserts, 0/90° Lead Angle, 63mm High, SPHX 1205... Insert Style, Series Fix-Perfect
| Maximum Cutting Diameter (Decimal Inch) | 7.8740 |
|---|---|
| Maximum Cutting Diameter (mm) | 200.00 |
| Maximum Depth of Cut (mm) | 6.00 |
| Arbor Hole Diameter (mm) | 60.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.3622 |
| Compatible Insert Size Code | SPHX 1205... |
| Cutter Style | WFP |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0/90 |
| Series | Fix-Perfect |
| Overall Height (Decimal Inch) | 2.4803 |
| Hub Diameter (mm) | 134.00 |
| Hub Diameter (Decimal Inch) | 5.2756 |
| Number of Adjustable Pockets | 4 |
| Complete Insert Compatibility | SPHX 1205PC.R.. |
| UNSPSC Code | 27112803 |
| Number Of Cutter Inserts | 24 |
| Number Of Flutes | 24 |
| Country of Origin | Czechia |
| MSC Number | MSC# 46862991 |
