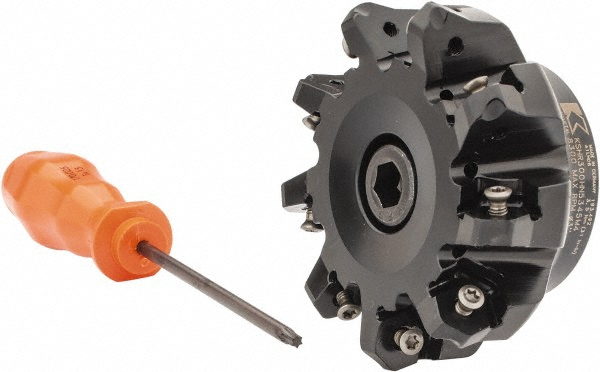

Takes 10 Inserts, ON.X080608.. Insert, Right Hand Cut, 10 Flutes, Series MILL 16
| Minimum Cutting Diameter (Decimal Inch) | 3.0000 |
|---|---|
| Minimum Cutting Diameter (Inch) | 3 |
| Maximum Cutting Diameter (Decimal Inch) | 3.4944 |
| Maximum Depth of Cut (mm) | 5.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2150 |
| Arbor Hole Diameter (mm) | 25.40 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Arbor Hole Diameter (Inch) | 1 |
| Compatible Insert Size Code | ON.X080608 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Wedge |
| Series | MILL 16 |
| Hub Diameter (mm) | 55.60 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Maximum RPM | 8200 |
| Toolholder Material | Steel |
| Number Of Cutter Inserts | 10 |
| Coolant Through | No |
| Number Of Flutes | 10 |
| UNSPSC Code | 23291600 |
| Country of Origin | India |
| MSC Number | MSC# 37737400 |
