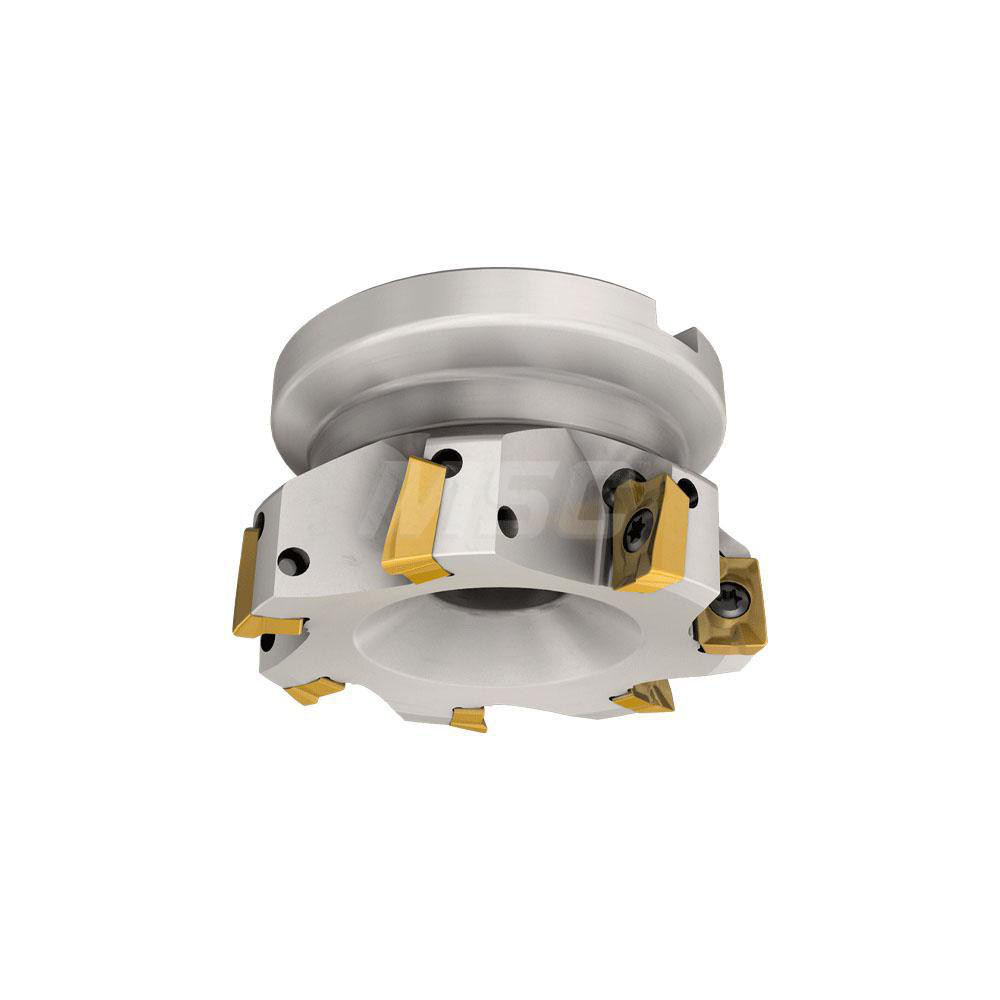

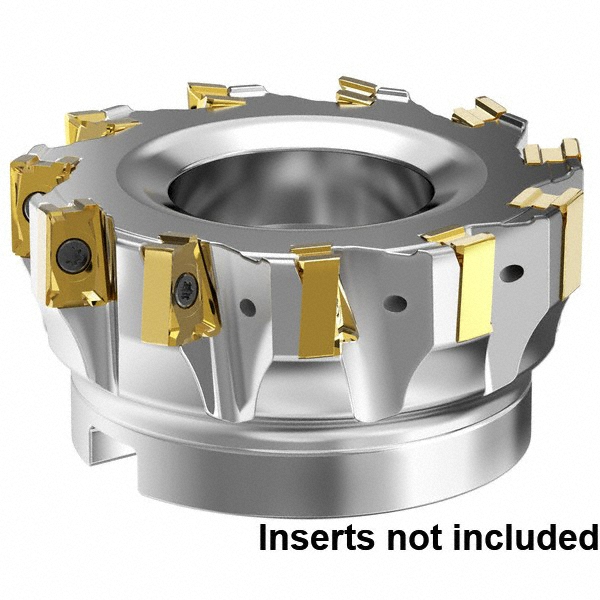

Takes 8 Inserts, 0/90° Lead Angle, 1-3/4" High, EC14.., EP14.. Insert Style, Through Coolant, Series Mill 1-14

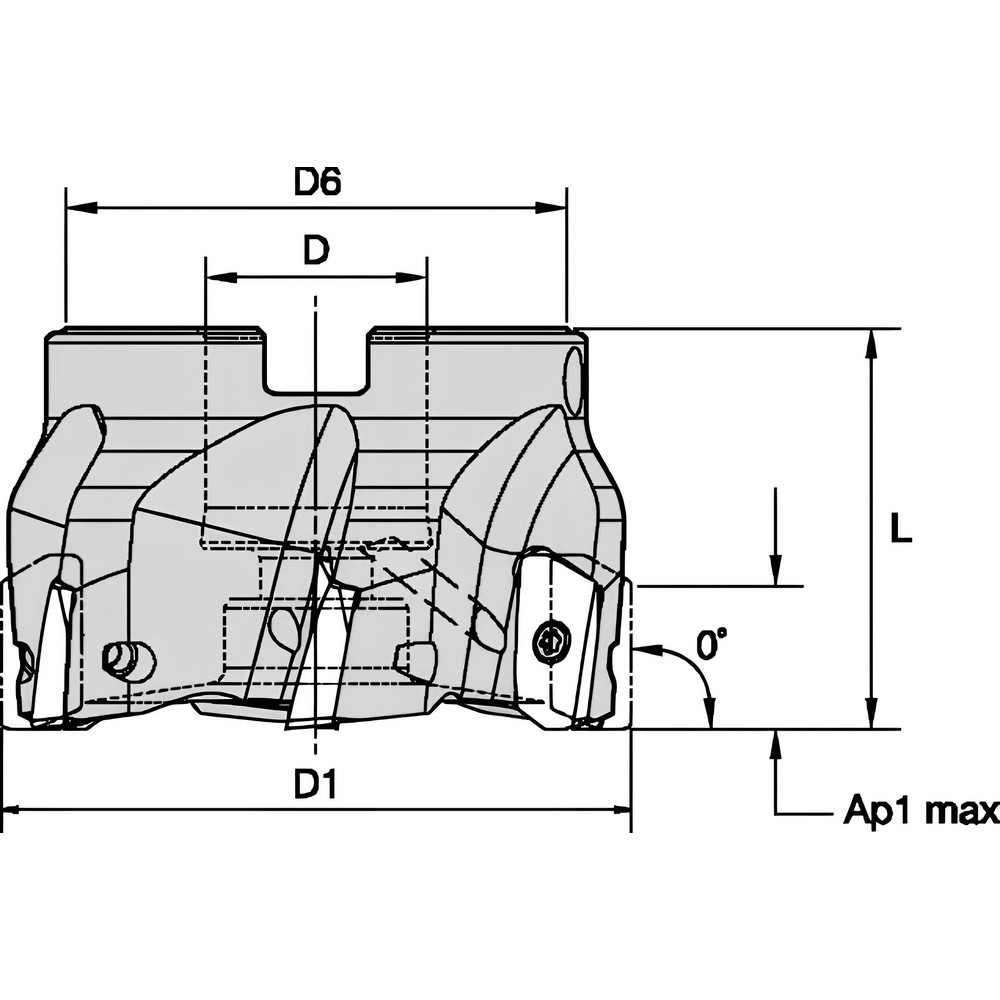

| Maximum Cutting Diameter (Inch) | 3 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Cutting Diameter (mm) | 76.20 |
| Maximum Depth of Cut (mm) | 14.22 |
| Maximum Depth of Cut (Decimal Inch) | 0.5600 |
| Arbor Hole Diameter (mm) | 25.40 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |

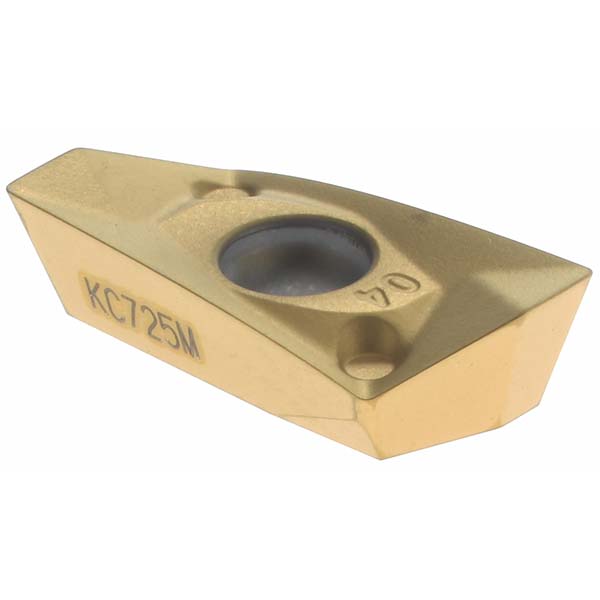

| Compatible Insert Size Code | EP14..; EC14.. |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 0/90 |
| Series | Mill 1-14 |
| Maximum Body Diameter (Decimal Inch) | 2.9460 |
| Overall Height (Decimal Inch) | 1.7500 |
| Overall Height (Inch) | 1-3/4 |
| Keyway Width (Decimal Inch) | 0.3900 |
| Hub Diameter (mm) | 55.56 |
| Hub Diameter (Decimal Inch) | 2.1874 |
| Coolant Hole Diameter (Decimal Inch) | 3.0000 |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 8 |
| Number Of Flutes | 8 |
| Country of Origin | Brazil |
| MSC Number | MSC# 01231042 |
