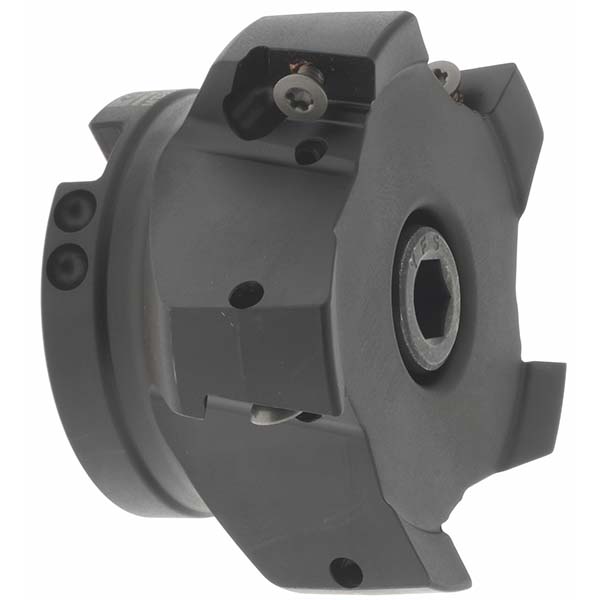

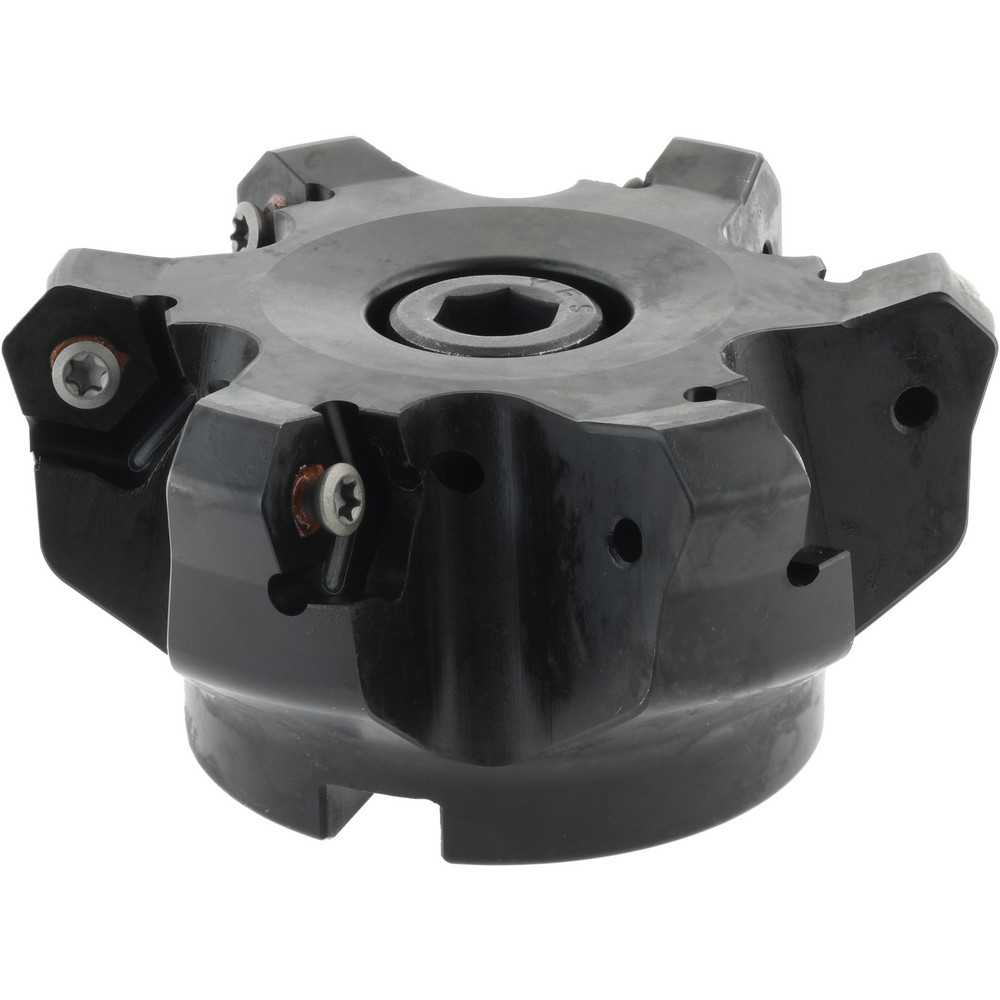

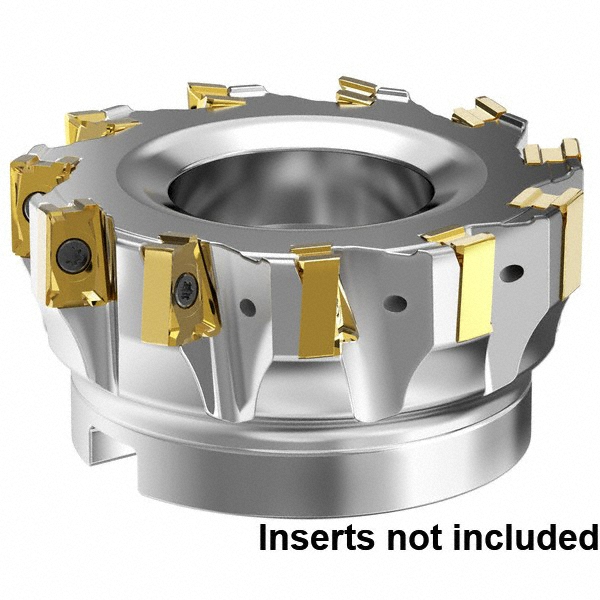

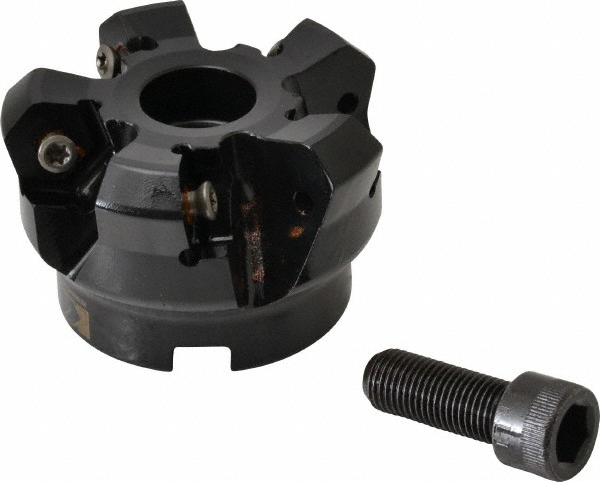

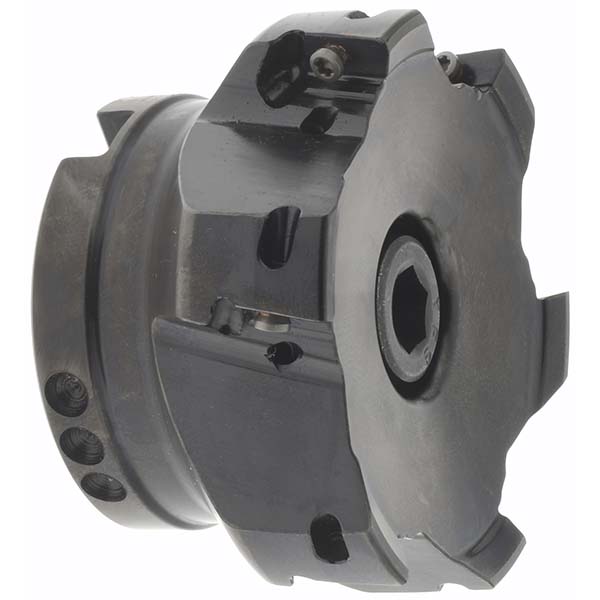

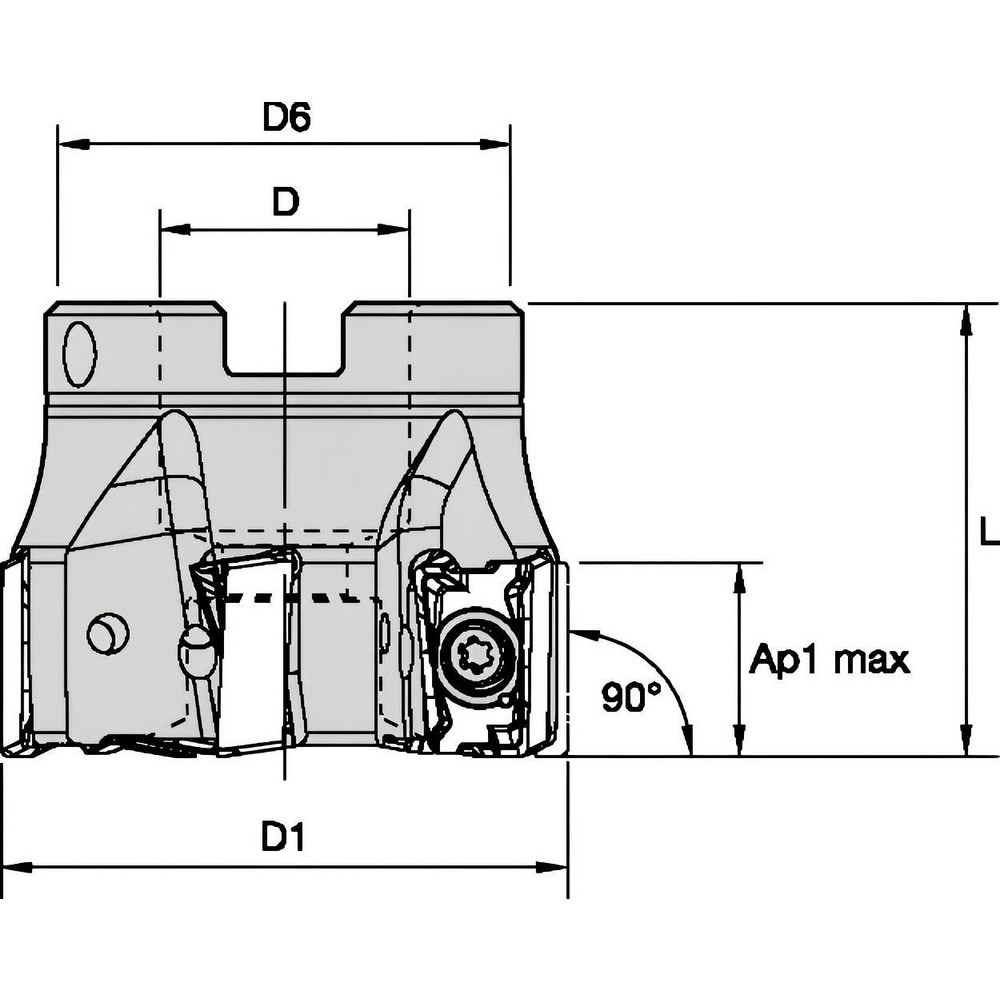

Takes 7 Inserts, 0° Lead Angle, 44.45mm High, LNGU15T608SRGE Insert Style, Series MILL 4-15

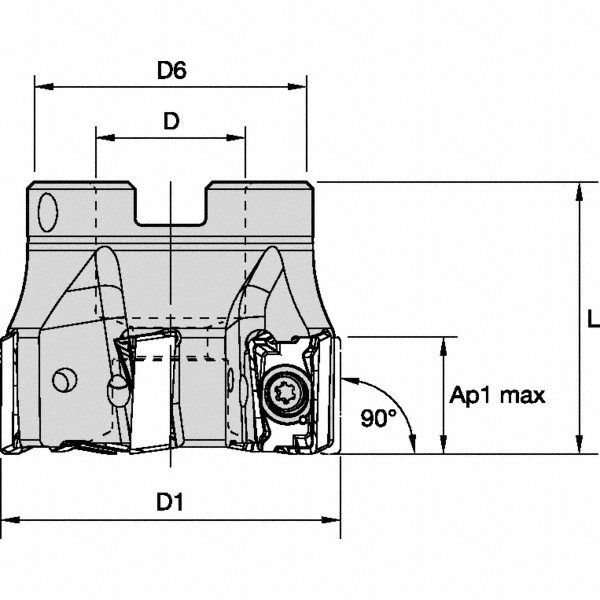

| Maximum Cutting Diameter (Inch) | 3 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Cutting Diameter (mm) | 76.20 |
| Maximum Depth of Cut (mm) | 15.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.6100 |
| Arbor Hole Diameter (mm) | 25.40 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |

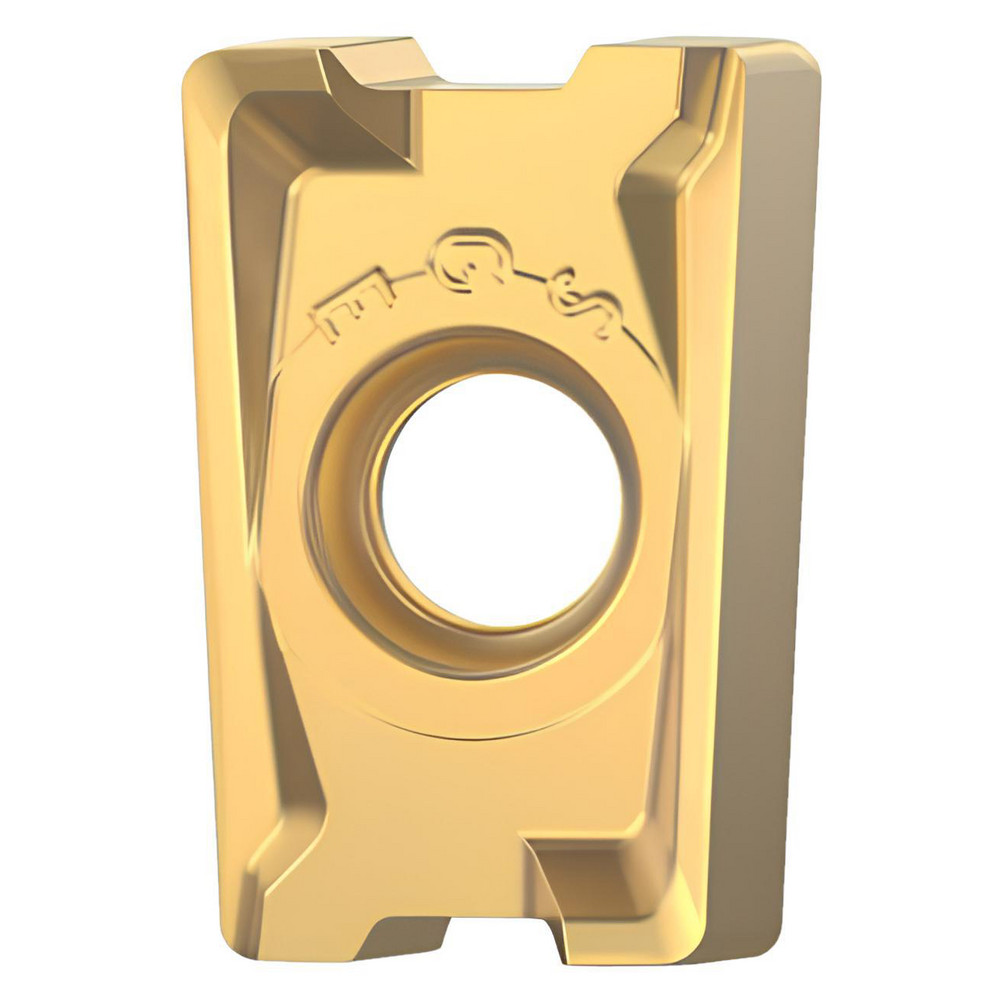

| Compatible Insert Size Code | LNGU15T608SRGE |

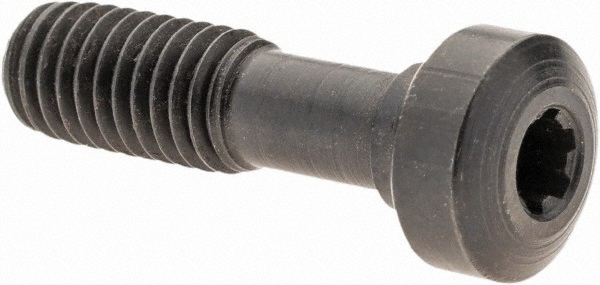

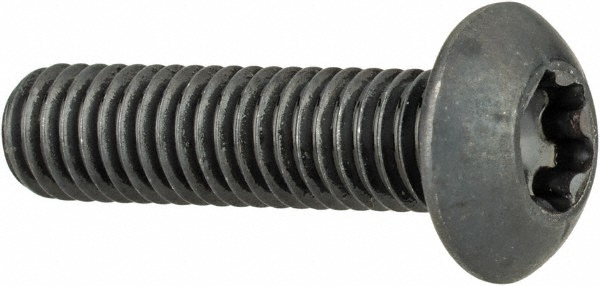

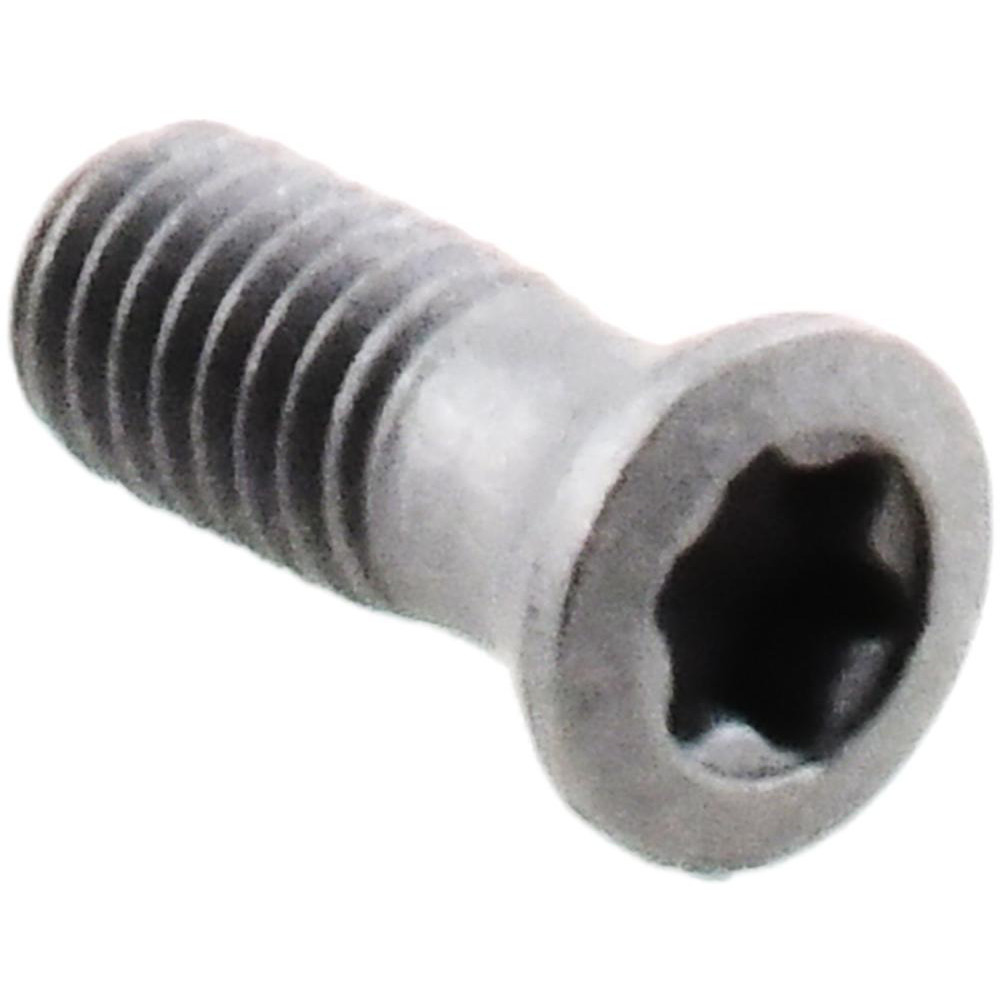

| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0 |
| Series | MILL 4-15 |
| Overall Height (Decimal Inch) | 1.7500 |
| UNSPSC Code | 27112803 |
| Number Of Cutter Inserts | 7 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 44657302 |
