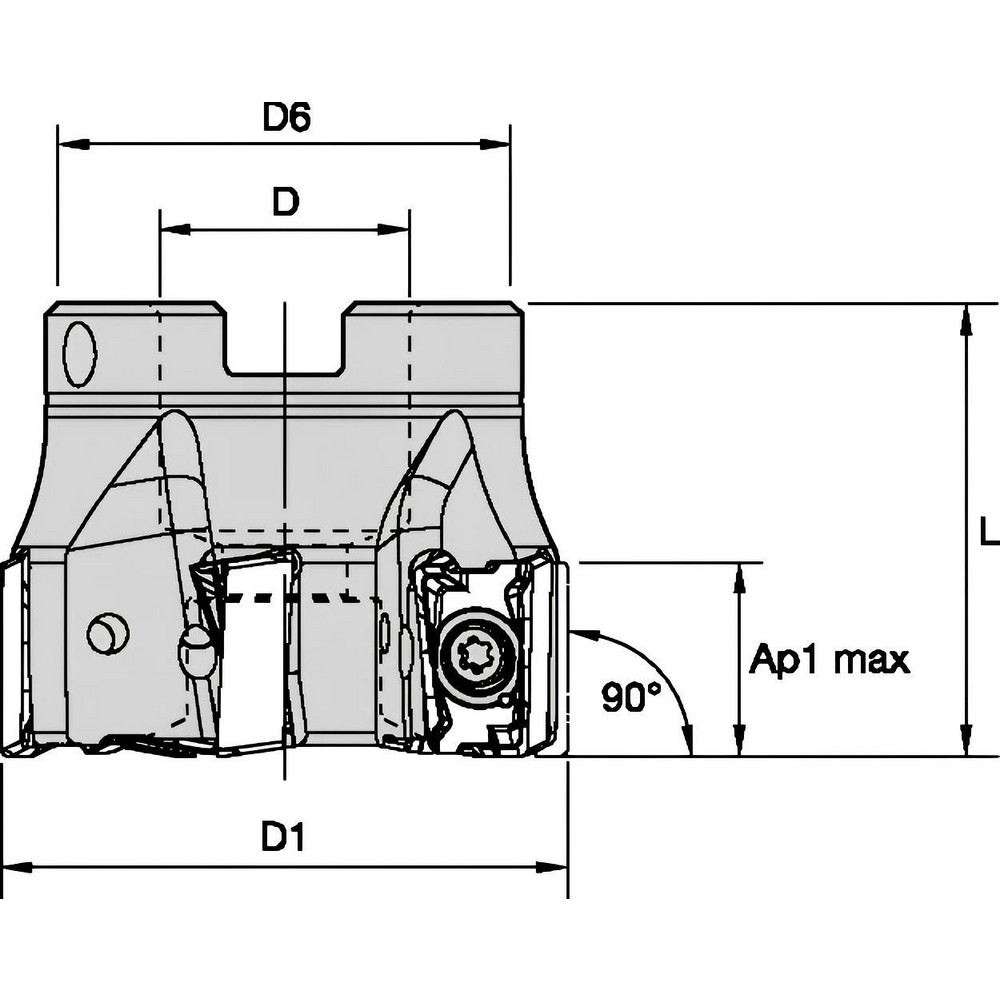

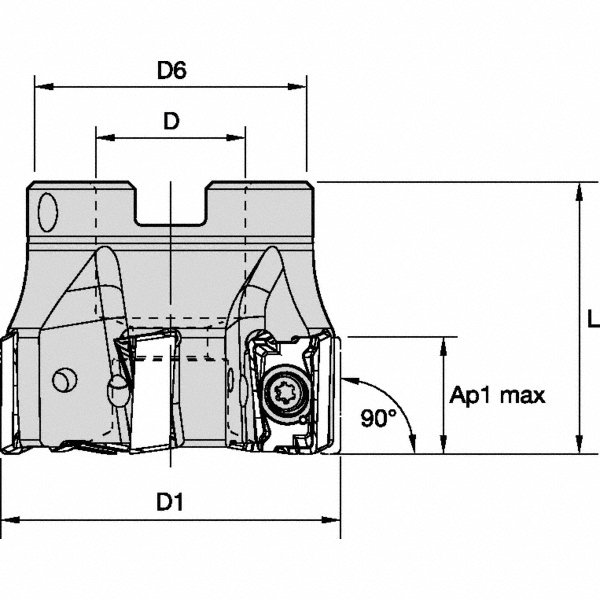

Takes 8 Inserts, 0° Lead Angle, 2" High, LNGU15T608SRGE Insert Style, Through Coolant, Series MILL 4-15
| Maximum Cutting Diameter (Inch) | 4 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 4.0000 |
| Maximum Cutting Diameter (mm) | 101.60 |
| Maximum Depth of Cut (mm) | 15.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.6100 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |

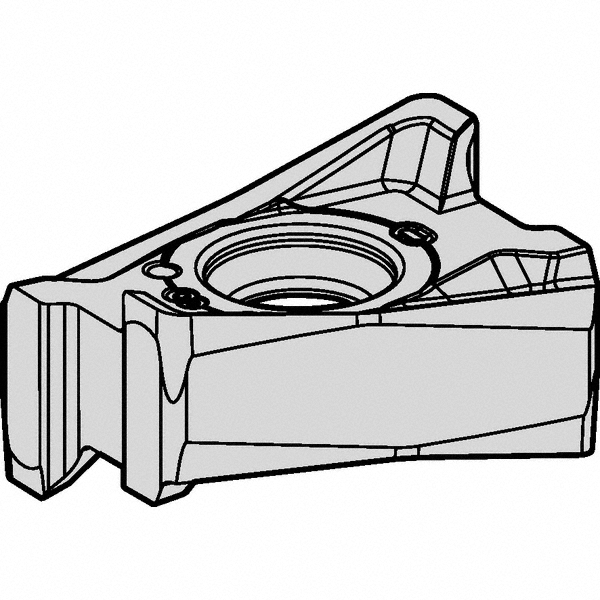

| Compatible Insert Size Code | LNGU15T608SRGE |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0 |
| Series | MILL 4-15 |
| Maximum Body Diameter (Decimal Inch) | 3.8820 |
| Overall Height (Decimal Inch) | 2.0000 |
| Overall Height (Inch) | 2 |
| Hub Diameter (mm) | 85.85 |
| Hub Diameter (Decimal Inch) | 3.3800 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 8 |
| Number Of Flutes | 8 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 49963960 |
