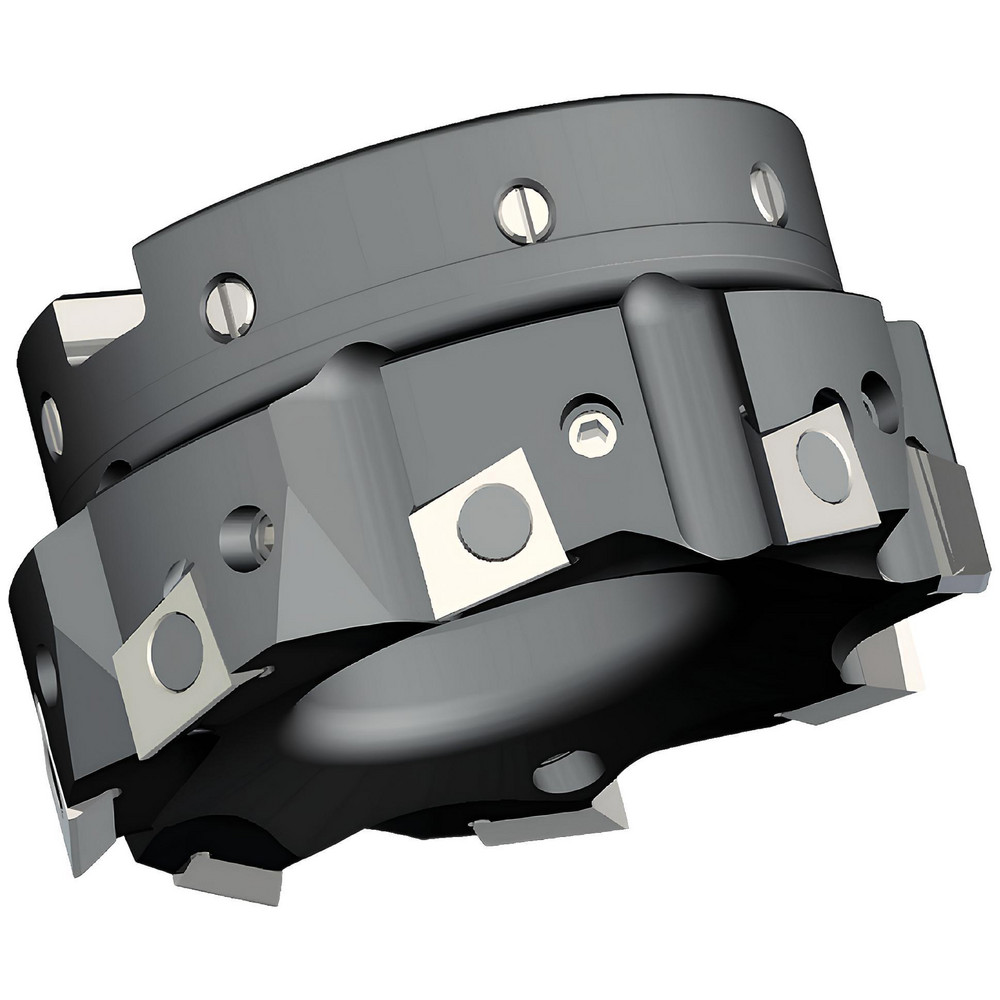

Takes 4 Inserts, 0/90° Lead Angle, 1-3/4" High, BGHX 15L5... Insert Style, Series Fix-Perfect
| Maximum Cutting Diameter (Inch) | 4 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 4.0000 |
| Maximum Cutting Diameter (mm) | 101.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Arbor Hole Diameter (mm) | 31.75 |
| Arbor Hole Diameter (Inch) | 1-1/4 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Compatible Insert Size Code | BGHX 15L5... |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp |
| Lead Angle | 0/90 |
| Rake | Positive |
| Rake Angle | 24.00 |
| Series | Fix-Perfect |
| Maximum Body Diameter (Decimal Inch) | 3.9130 |
| Overall Height (Decimal Inch) | 1.7500 |
| Overall Height (Inch) | 1-3/4 |
| Keyway Width (mm) | 13.08 |
| Keyway Width (Decimal Inch) | 0.5150 |
| Hub Diameter (mm) | 73.15 |
| Hub Diameter (Decimal Inch) | 2.8799 |
| UNSPSC Code | 27112803 |
| Coolant Through | No |
| Number Of Cutter Inserts | 4 |
| Number Of Flutes | 4 |
| Country of Origin | Czechia |
| undefined | undefined |
| MSC Number | MSC# 01230515 |
