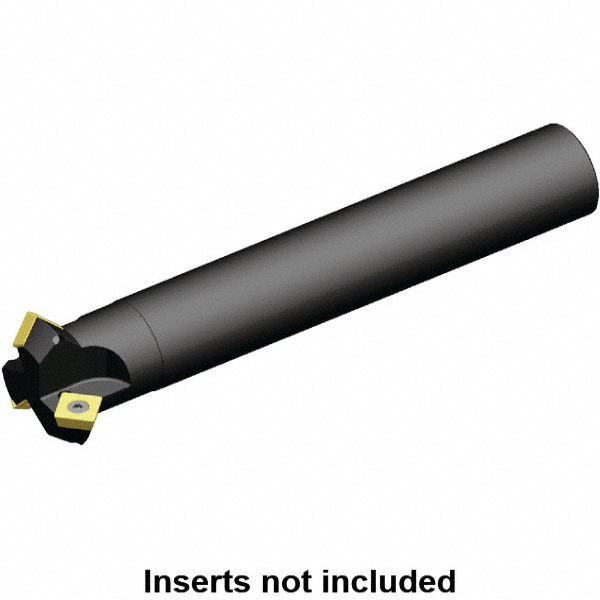

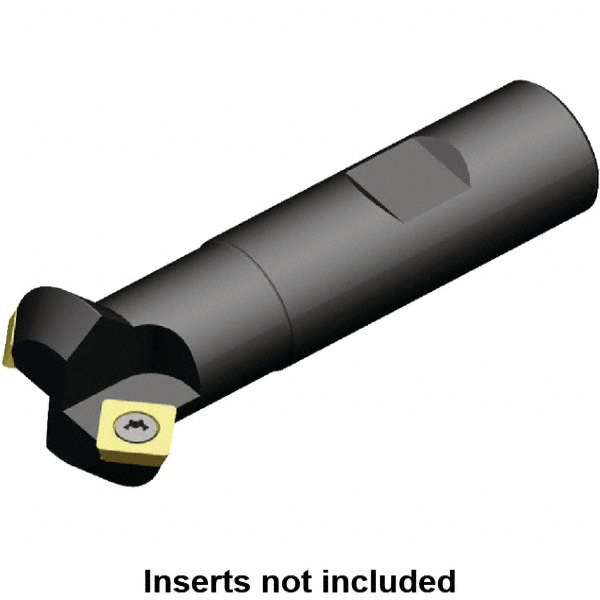

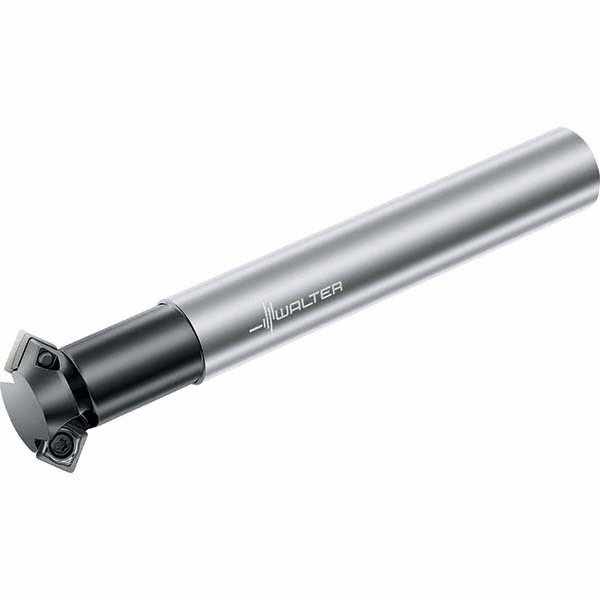

Takes 2 Inserts, SDCW 090308 Insert Style, 83mm OAL, 0.2303" Max Depth of Cut
| Minimum Cutting Diameter (Decimal Inch) | 0.7874 |
|---|---|
| Minimum Cutting Diameter (mm) | 20.00 |
| Maximum Cutting Diameter (mm) | 32.16 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2660 |
| Maximum Depth of Cut (Decimal Inch) | 0.2303 |
| Maximum Depth of Cut (mm) | 5.85 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Number Of Cutter Inserts | 2 |
| Insert Style | SDCW 090308 |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 3.2677 |
| Overall Length (mm) | 83.00 |
| Head Length (Decimal Inch) | 1.2600 |
| Head Length (mm) | 32.00 |
| Shank Length (Decimal Inch) | 2.0079 |
| Shank Length (mm) | 51.00 |
| UNSPSC Code | 23291600 |
| Number Of Flutes | 2 |
| Shank Type | Cylindrical |
| Country of Origin | Bulgaria |
| undefined | undefined |
| MSC Number | MSC# 58494584 |
