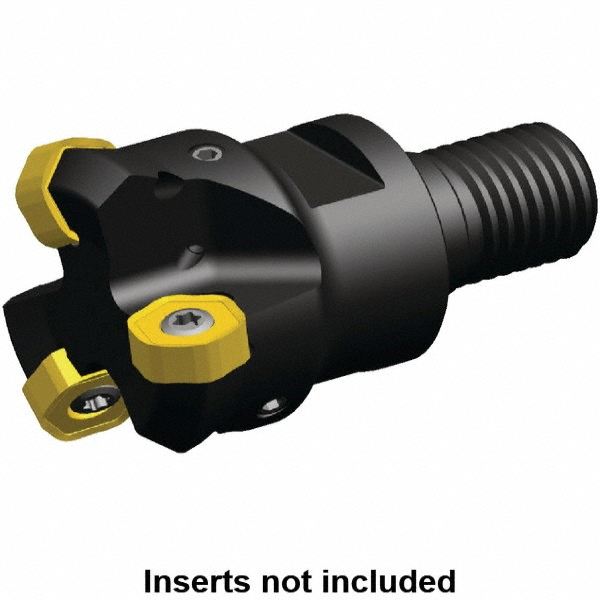

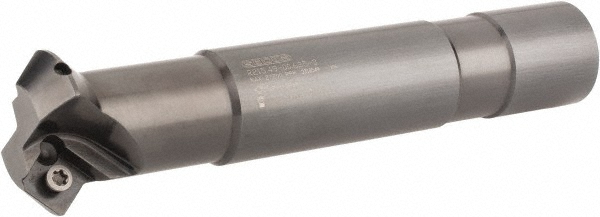

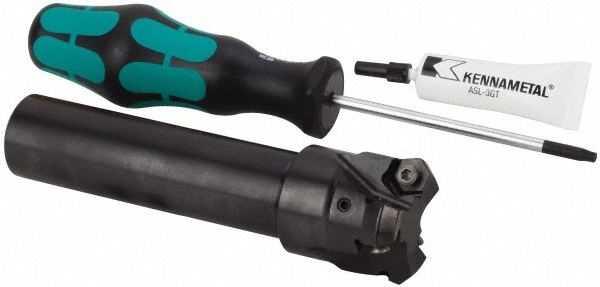

Takes 3 Inserts, HNGJ 0604ANENLD Insert Style, KSHR Toolholder, 203.2mm OAL, 0.127" Max Depth of Cut
| Minimum Cutting Diameter (mm) | 25.40 |
|---|---|
| Maximum Cutting Diameter (mm) | 33.58 |
| Maximum Cutting Diameter (Decimal Inch) | 1.3220 |
| Maximum Depth of Cut (Decimal Inch) | 0.1270 |
| Maximum Depth of Cut (mm) | 3.23 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number Of Cutter Inserts | 3 |
| Insert Style | HNGJ 0604ANENLD |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 8.0000 |
| Overall Length (mm) | 203.20 |
| Series | Dodeka Series |
| Toolholder Style | KSHR |
| Maximum RPM | 19800 |
| Head Length (Decimal Inch) | 1.2500 |
| Head Length (mm) | 31.75 |
| Shank Length (Decimal Inch) | 6.7500 |
| Shank Length (mm) | 171.45 |
| Coolant Hole Diameter (mm) | 5.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1969 |
| UNSPSC Code | 23291600 |
| Number Of Flutes | 3 |
| Coolant Through | Yes |
| Shank Type | Cylindrical |
| Country of Origin | Bulgaria |
| undefined | undefined |
| MSC Number | MSC# 46886198 |
