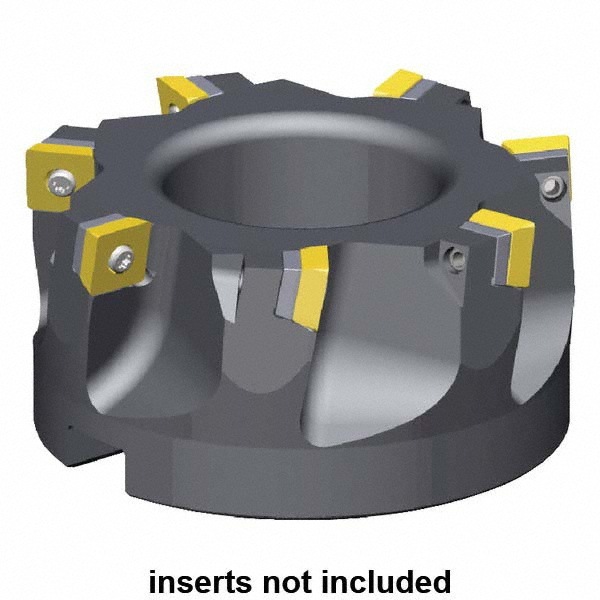

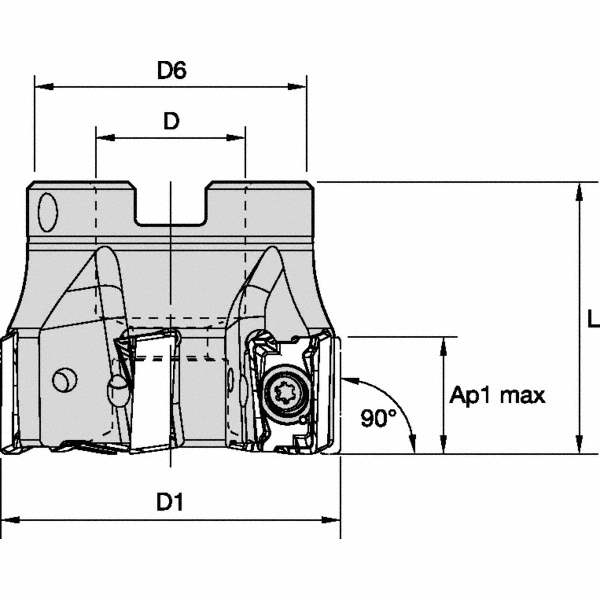

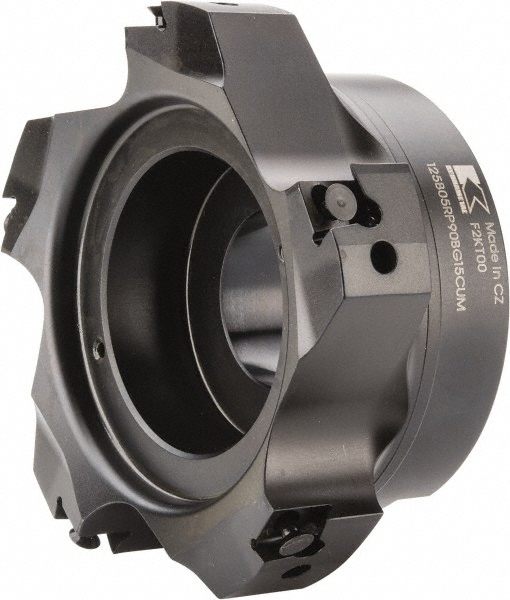

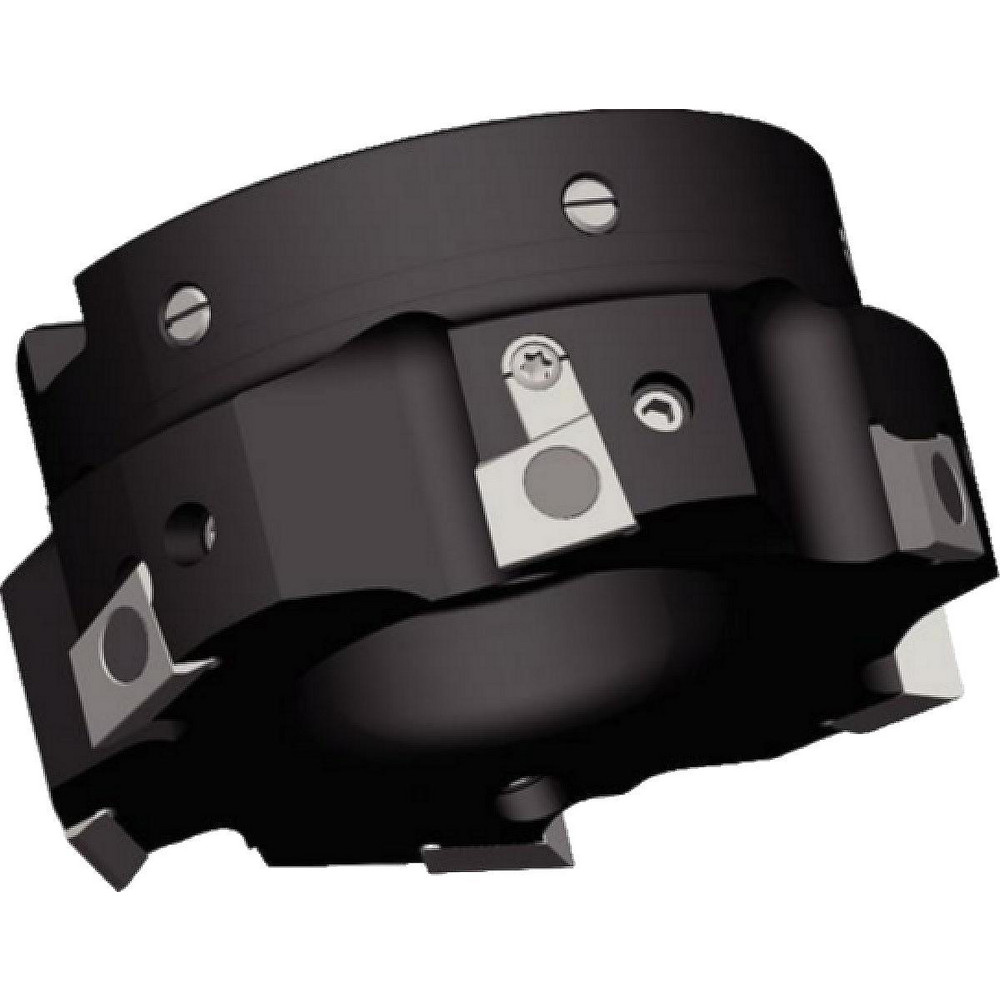

Takes 5 Inserts, 0/90° Lead Angle, 60.45mm High, BGHX 15L5... Insert Style, Series Fix-Perfect
| Maximum Cutting Diameter (Inch) | 5 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 5.0000 |
| Maximum Cutting Diameter (mm) | 127.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |

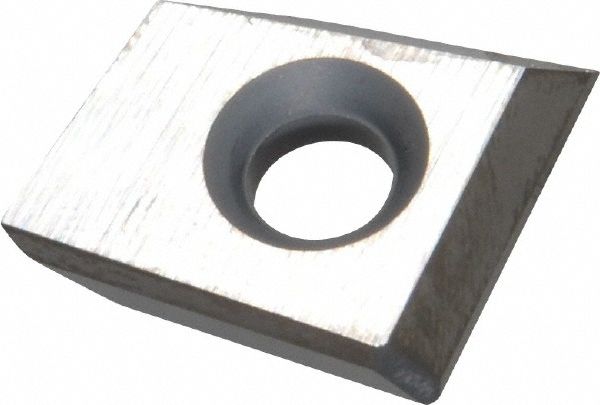

| Compatible Insert Size Code | BGHX 15L5... |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp |
| Lead Angle | 0/90 |
| Rake | Positive |
| Rake Angle | 24.00 |
| Series | Fix-Perfect |
| Maximum Body Diameter (Decimal Inch) | 4.9410 |
| Overall Height (Decimal Inch) | 2.3800 |
| Keyway Width (mm) | 16.26 |
| Keyway Width (Decimal Inch) | 0.6402 |
| Hub Diameter (mm) | 96.77 |
| Hub Diameter (Decimal Inch) | 3.8098 |
| UNSPSC Code | 27112803 |
| Coolant Through | No |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
| Country of Origin | Czechia |
| MSC Number | MSC# 01230523 |
