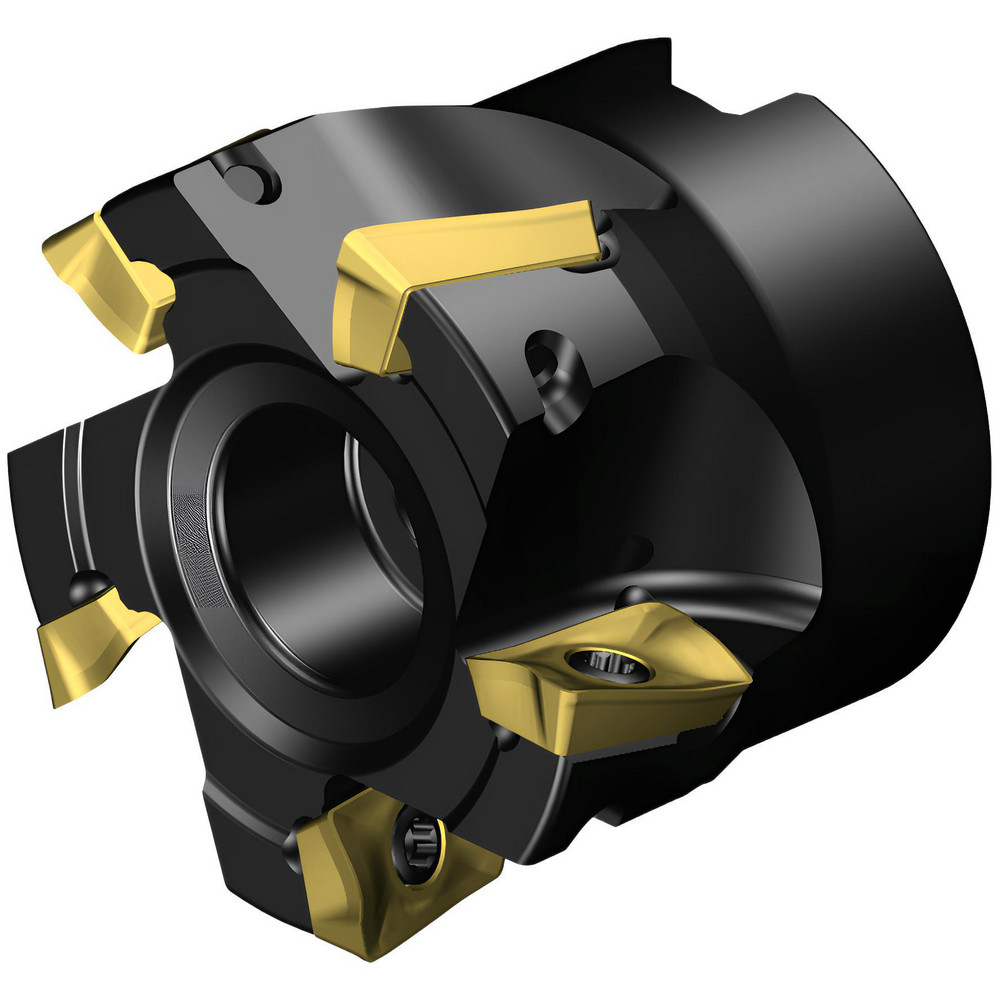

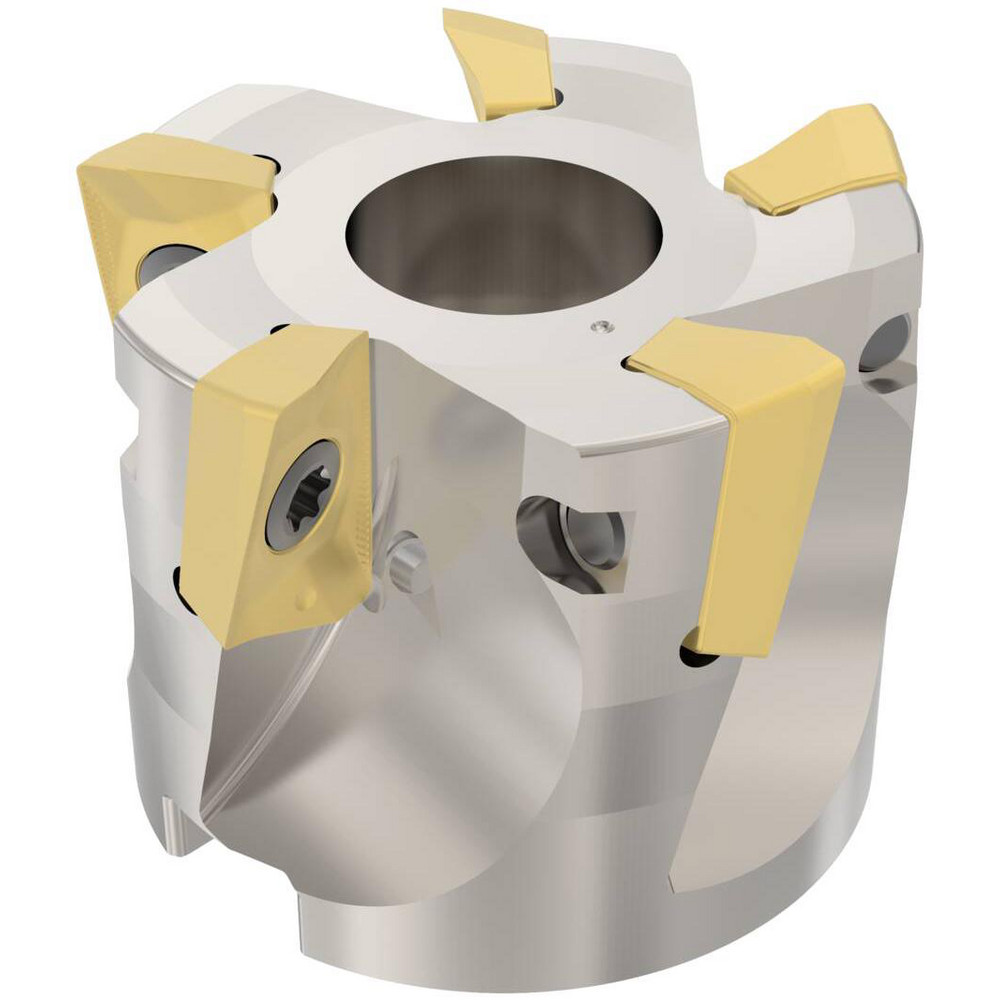

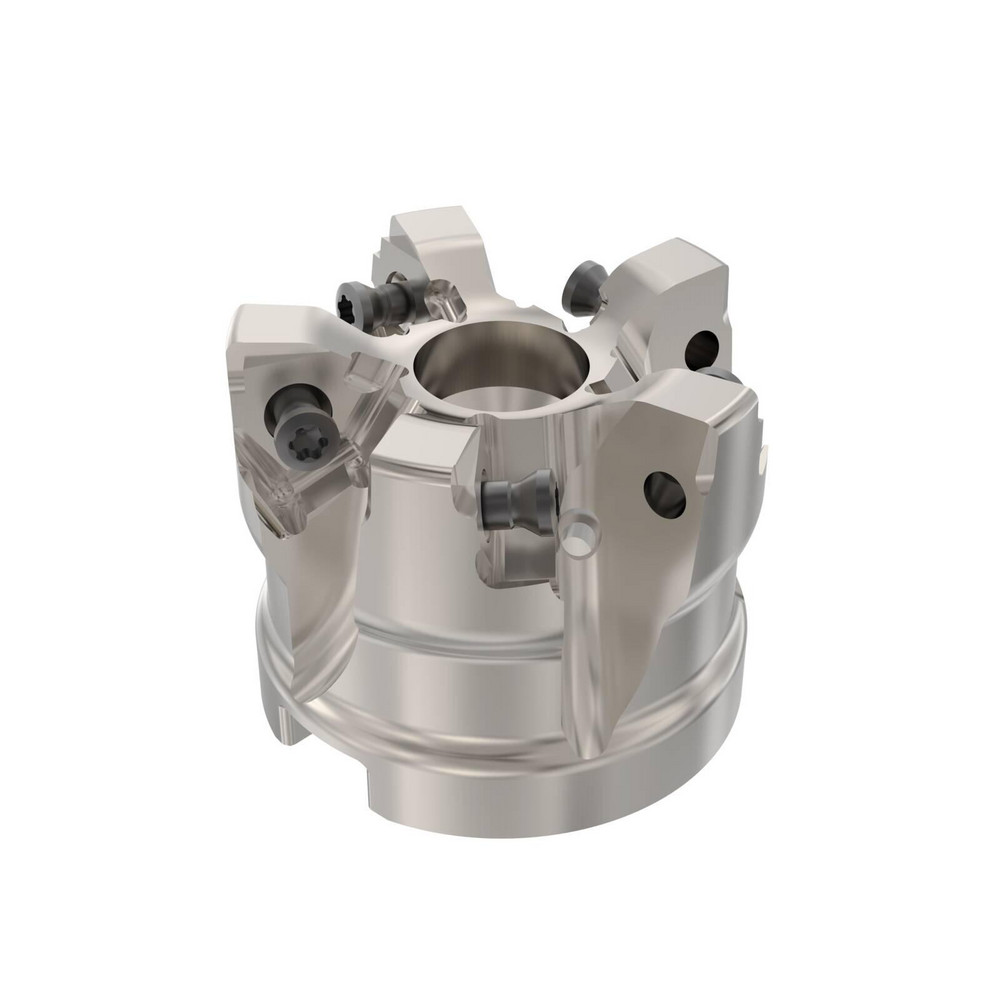

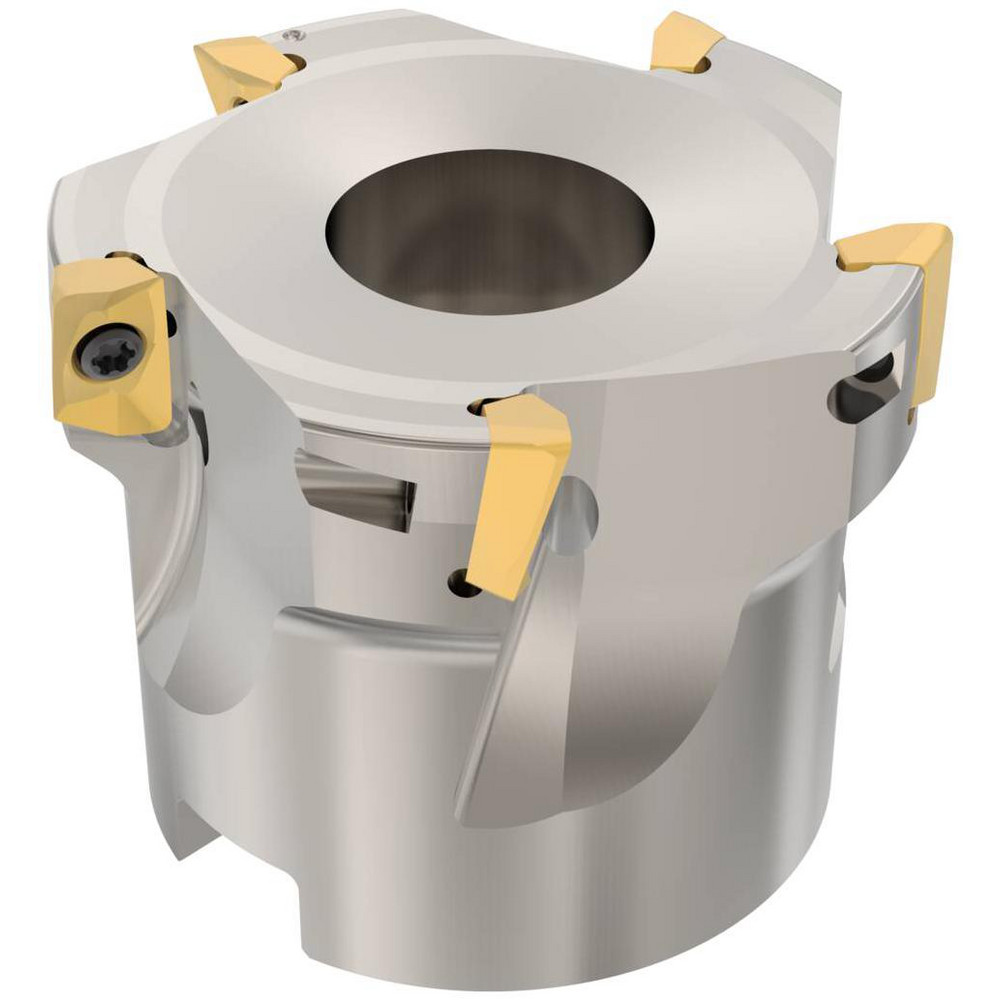

Takes 9 Inserts, 0/90° Lead Angle, 55mm High, SD.T 1204.. Insert Style, Series KSSM-KSSP

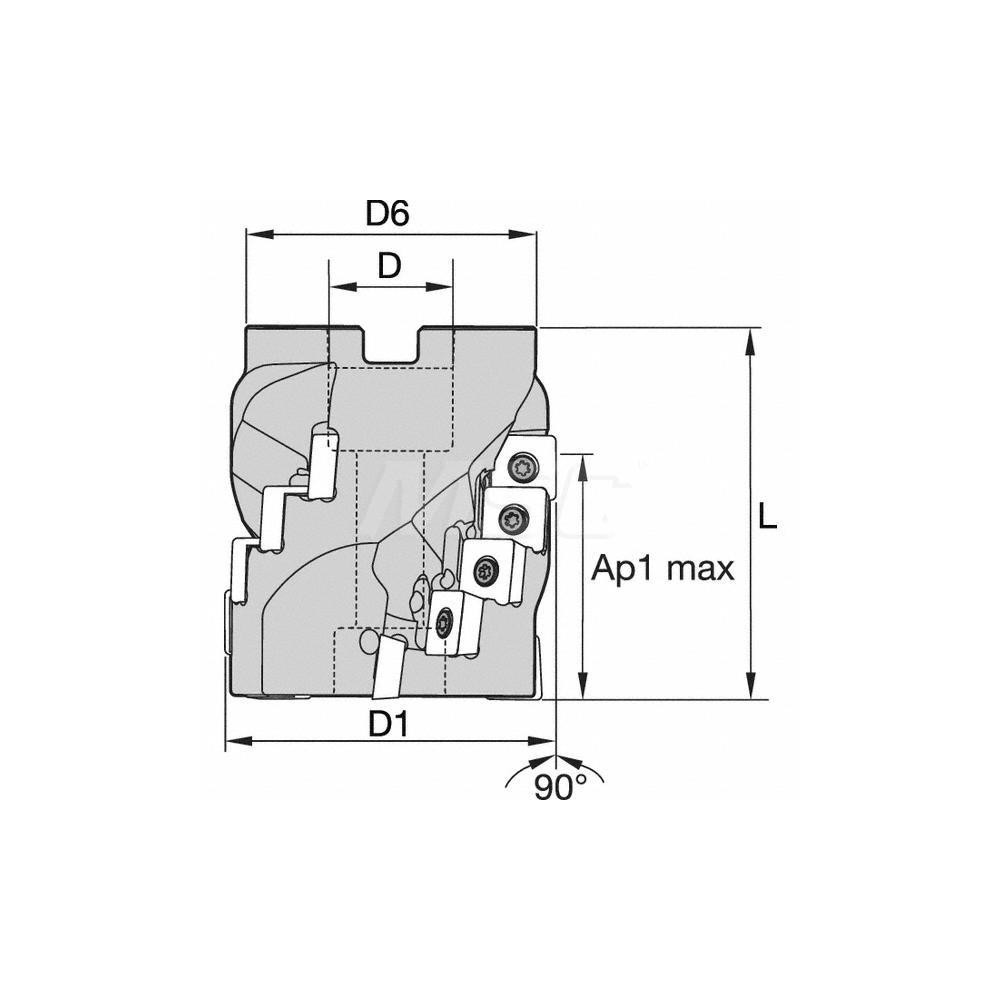

| Maximum Cutting Diameter (Decimal Inch) | 1.9685 |
|---|---|
| Maximum Cutting Diameter (mm) | 50.00 |
| Maximum Depth of Cut (mm) | 32.36 |
| Maximum Depth of Cut (Decimal Inch) | 1.2740 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Compatible Insert Size Code | SD.T 1204.. |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0/90 |
| Series | KSSM-KSSP |
| Maximum Body Diameter (Decimal Inch) | 1.8740 |
| Overall Height (Decimal Inch) | 2.1654 |
| Hub Diameter (mm) | 43.99 |
| Hub Diameter (Decimal Inch) | 1.7320 |
| Complete Insert Compatibility | SD.T 1204PD.R.. |
| UNSPSC Code | 27112803 |
| Number Of Cutter Inserts | 9 |
| Number Of Flutes | 3 |
| Country of Origin | Czechia |
| undefined | undefined |
| MSC Number | MSC# 48480677 |
