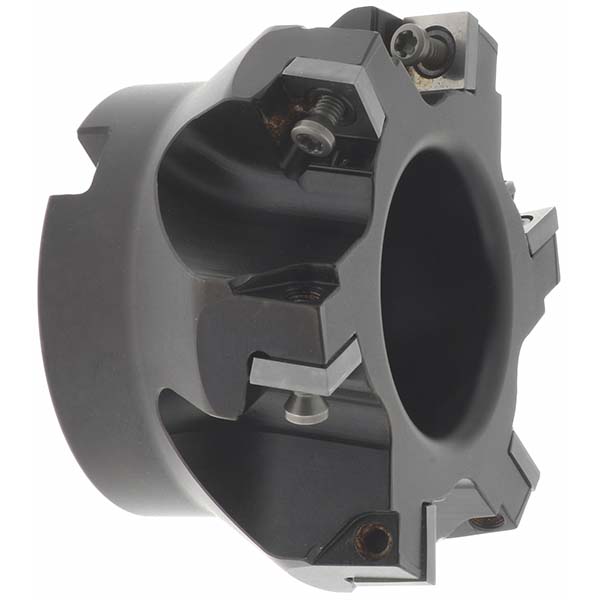

Takes 3 Inserts, 0/90° Lead Angle, 40mm High, SDET 1204.. Insert Style, Series KSSM

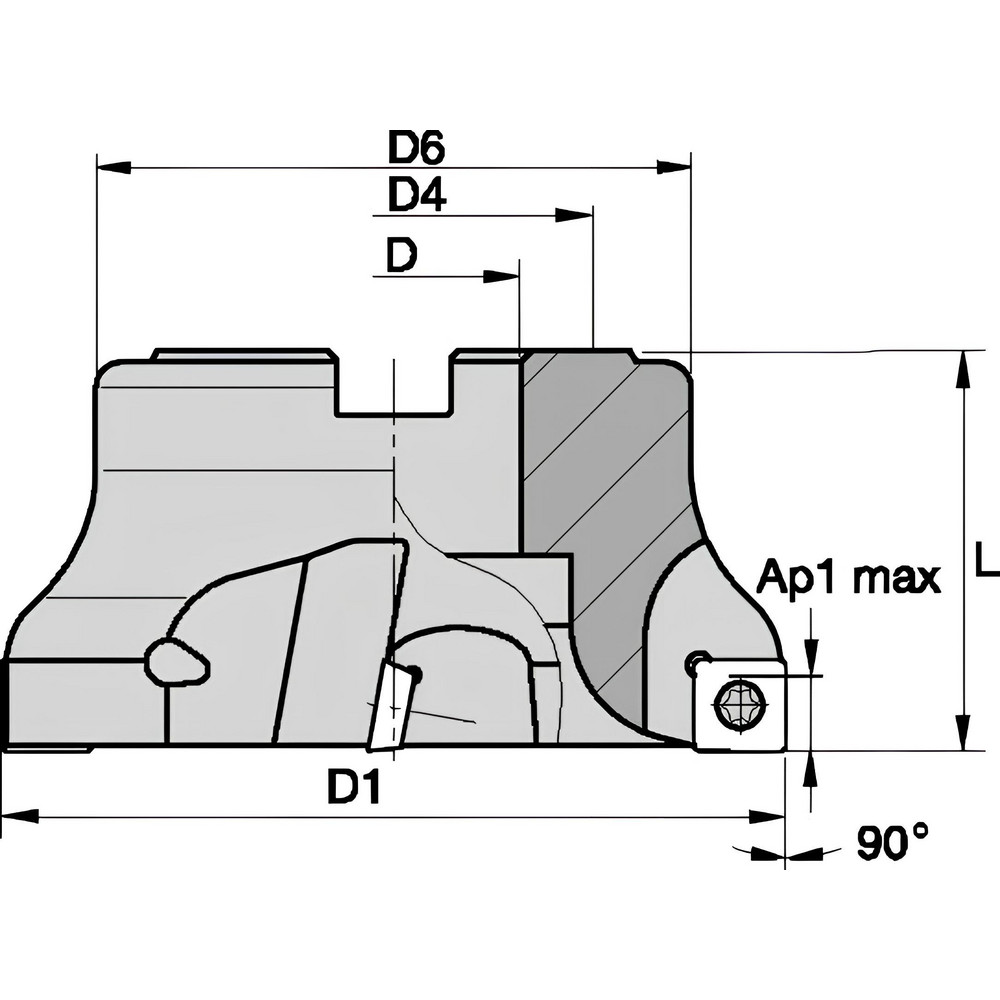

| Maximum Cutting Diameter (Decimal Inch) | 1.9685 |
|---|---|
| Maximum Cutting Diameter (mm) | 50.00 |
| Maximum Depth of Cut (mm) | 9.17 |
| Maximum Depth of Cut (Decimal Inch) | 0.3610 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Compatible Insert Size Code | SDET 1204.. |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0/90 |
| Series | KSSM |
| Maximum Body Diameter (Decimal Inch) | 1.9165 |
| Overall Height (Decimal Inch) | 1.5748 |
| Hub Diameter (mm) | 45.00 |
| Hub Diameter (Decimal Inch) | 1.7717 |
| Complete Insert Compatibility | SDET 1204PDERGB |
| UNSPSC Code | 27112803 |
| Number Of Cutter Inserts | 3 |
| Number Of Flutes | 3 |
| Country of Origin | Czechia |
| MSC Number | MSC# 46869665 |
