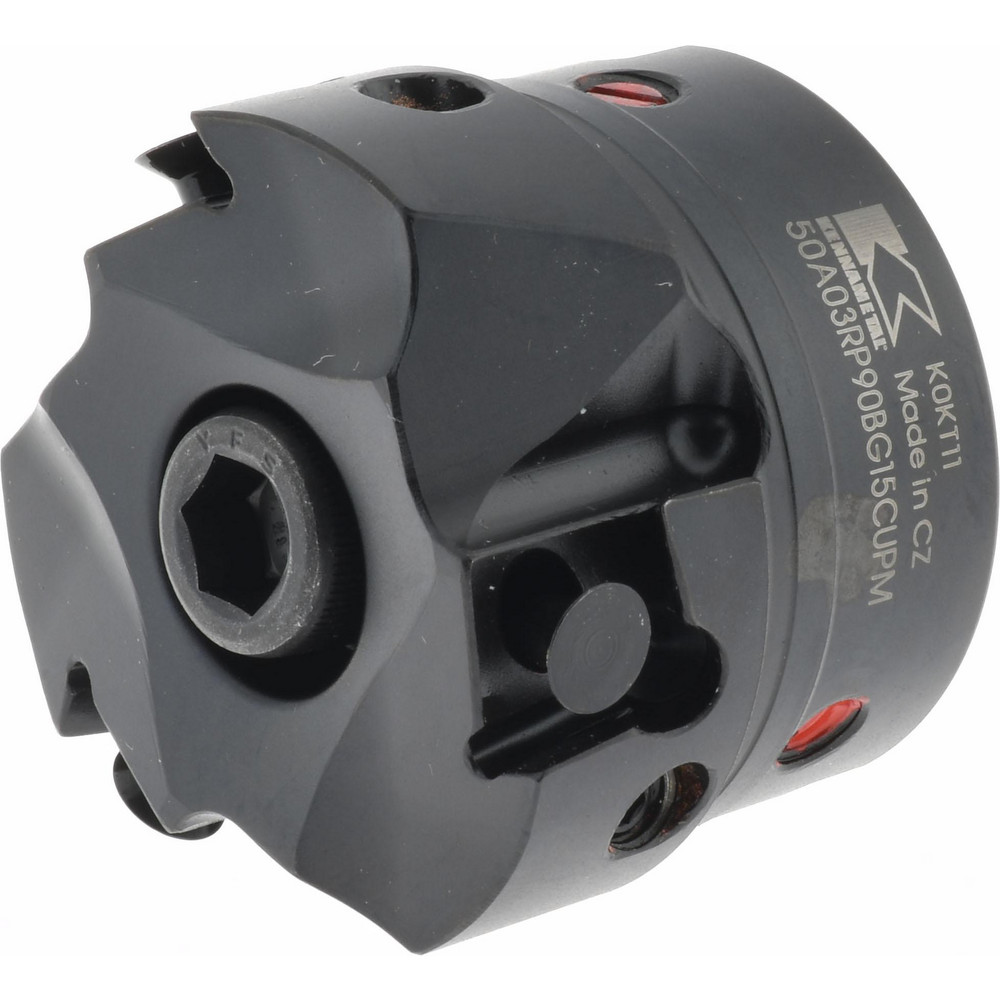

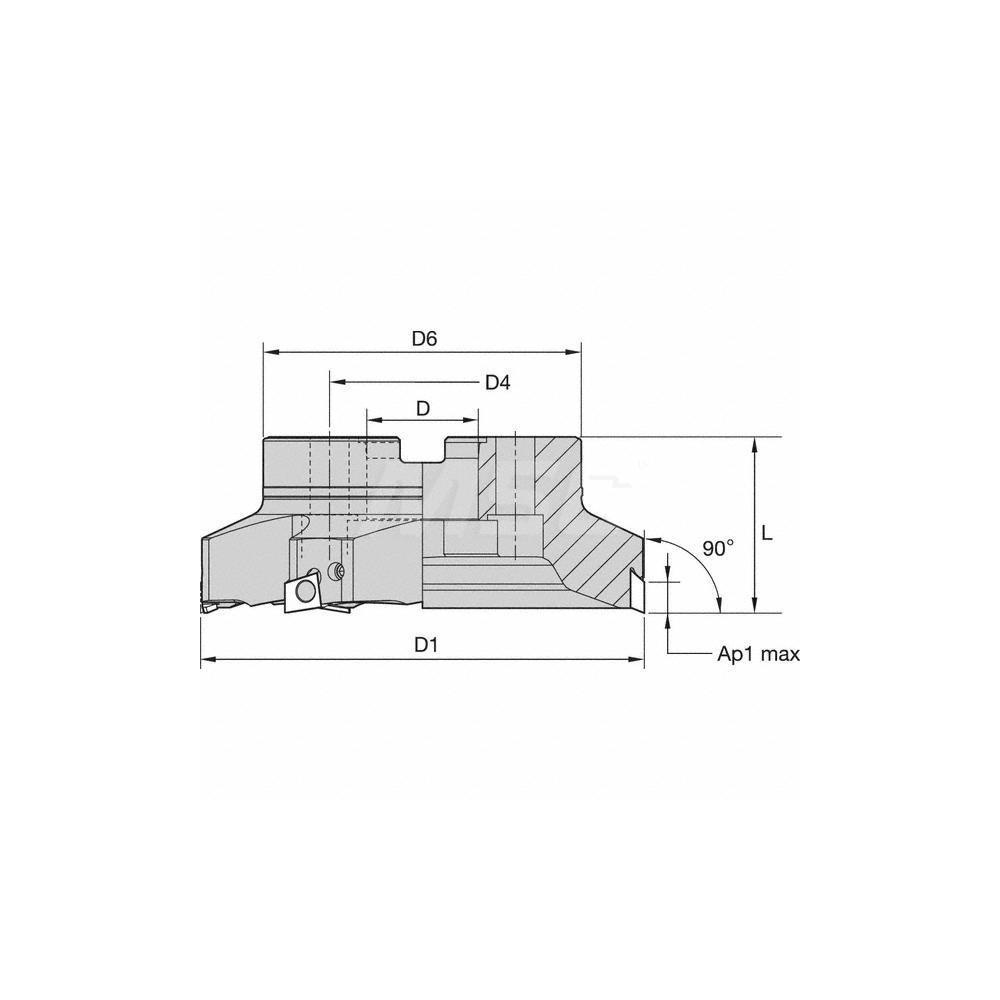

Takes 3 Inserts, 0/90° Lead Angle, 40mm High, BGHX 15L5... Insert Style, Series Fix-Perfect
| Maximum Cutting Diameter (Decimal Inch) | 1.9685 |
|---|---|
| Maximum Cutting Diameter (mm) | 50.00 |
| Maximum Depth of Cut (mm) | 9.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.3740 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Compatible Insert Size Code | BGHX 15L5... |
| Cutter Style | CM |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0/90 |
| Rake | Positive |
| Rake Angle | 24.00 |
| Series | Fix-Perfect |
| Overall Height (Decimal Inch) | 1.5748 |
| Hub Diameter (mm) | 42.00 |
| Hub Diameter (Decimal Inch) | 1.6535 |
| Complete Insert Compatibility | BGHX 15L5PCFR |
| UNSPSC Code | 27112803 |
| Number Of Cutter Inserts | 3 |
| Number Of Flutes | 3 |
| Country of Origin | Czechia |
| MSC Number | MSC# 46862983 |
