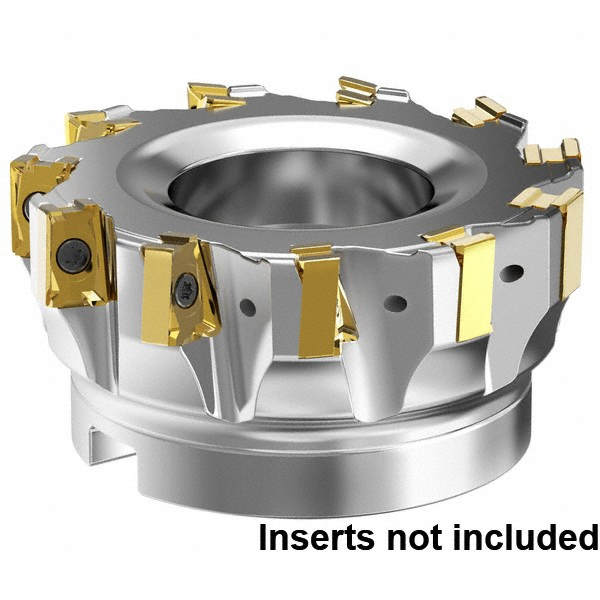

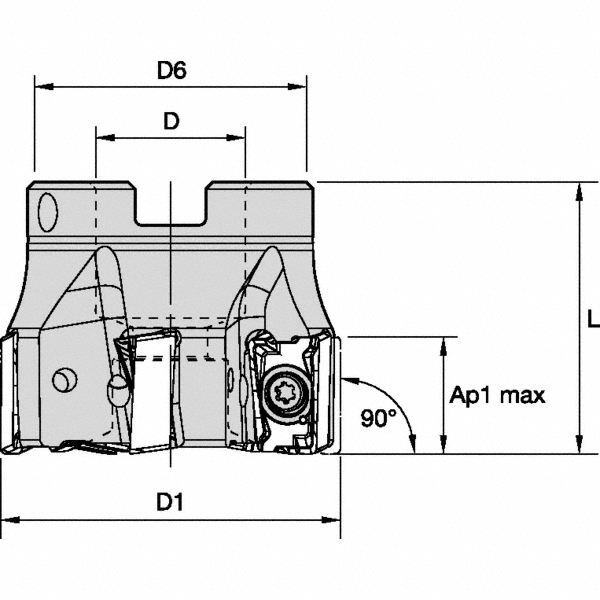

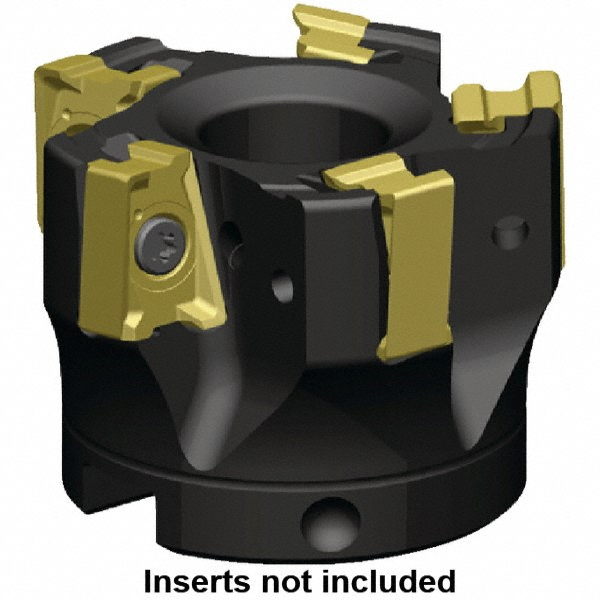

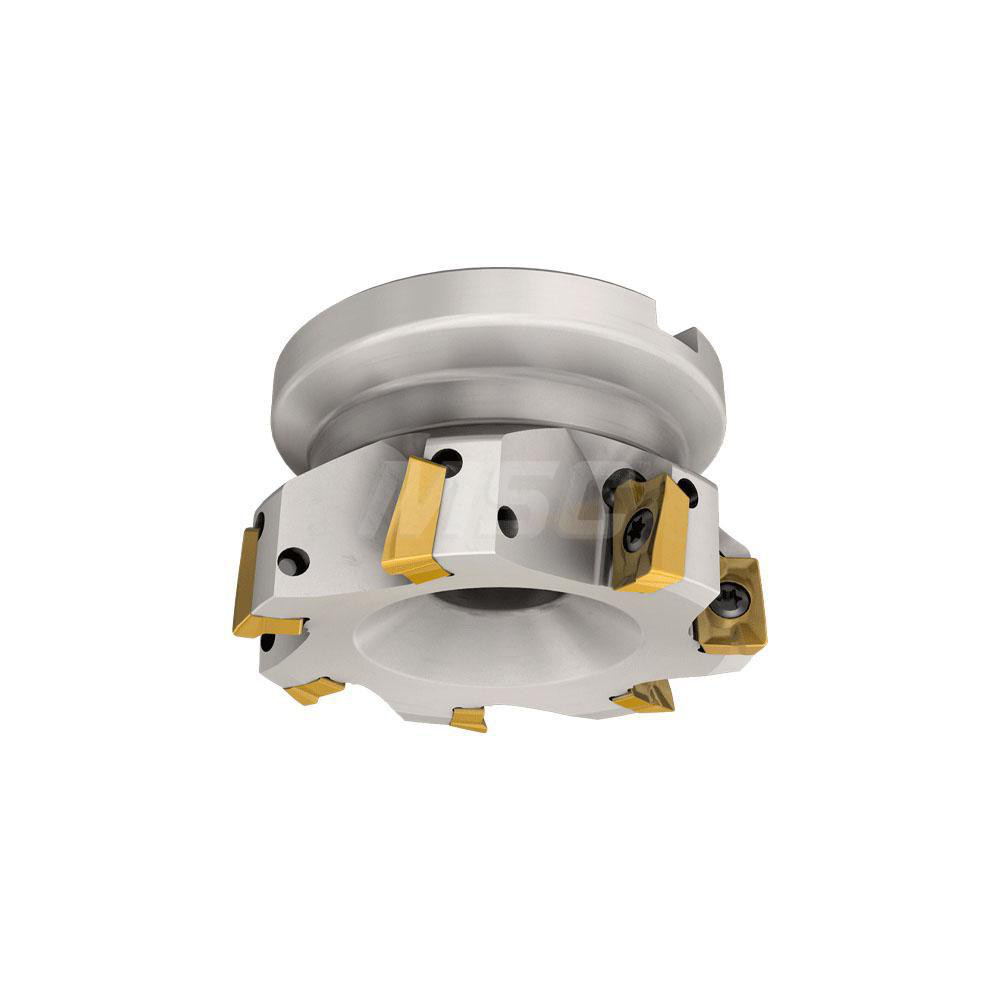

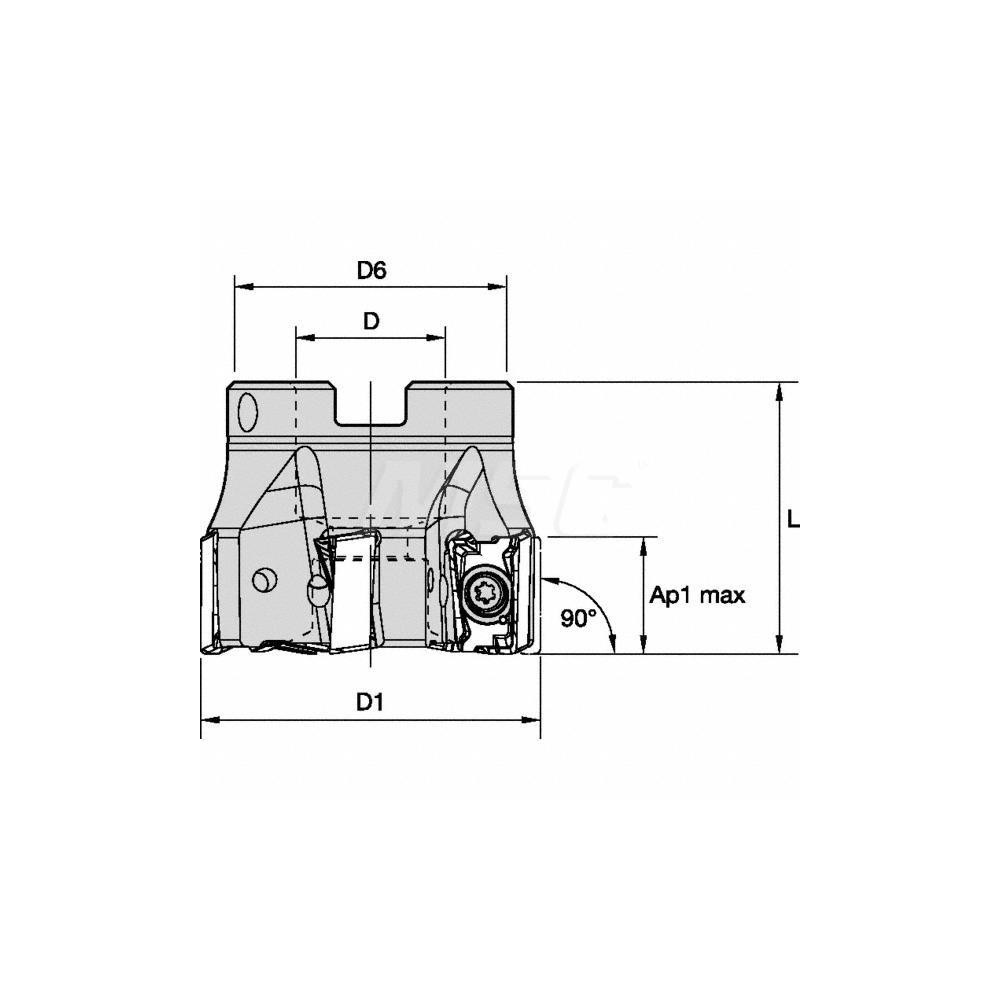

Takes 12 Inserts, 0° Lead Angle, 2.38" High, LNGU15T608SRGE Insert Style, Through Coolant, Series MILL 4-15
| Maximum Cutting Diameter (Inch) | 6 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 6.0000 |
| Maximum Depth of Cut (mm) | 15.50 |
| Arbor Hole Diameter (Inch) | 2 |
| Arbor Hole Diameter (Decimal Inch) | 2.0000 |
| Compatible Insert Size Code | LNGU15T608SRGE |
| Cutter Style | M4 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0 |
| Series | MILL 4-15 |
| Maximum Body Diameter (Decimal Inch) | 5.8710 |
| Overall Height (Decimal Inch) | 2.3800 |
| Hub Diameter (mm) | 124.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1180 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 12 |
| Number Of Flutes | 12 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 47499892 |
