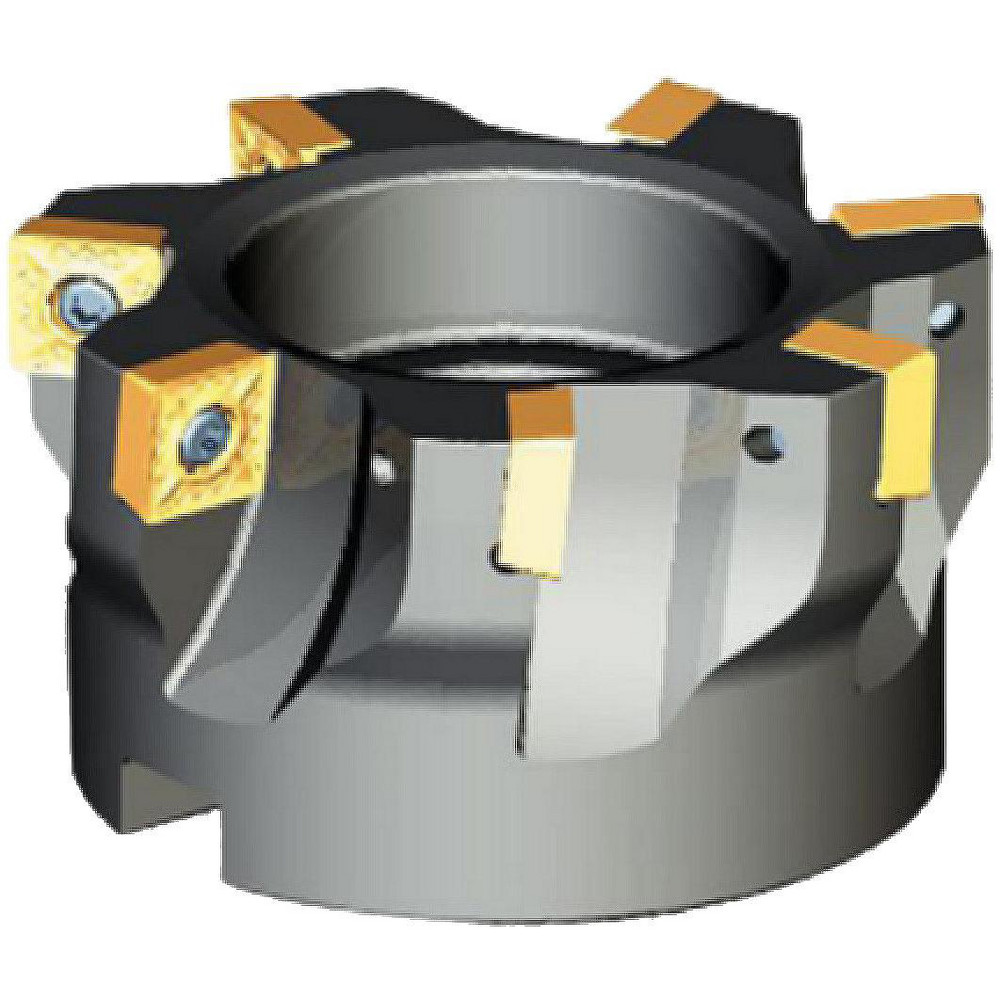

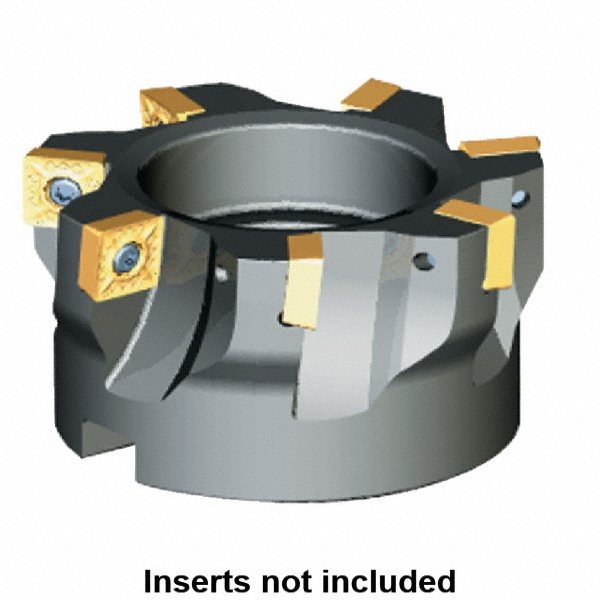

Takes 6 Inserts, 0/90° Lead Angle, 40mm High, SP.T 10T3.. Insert Style, Series KSSM

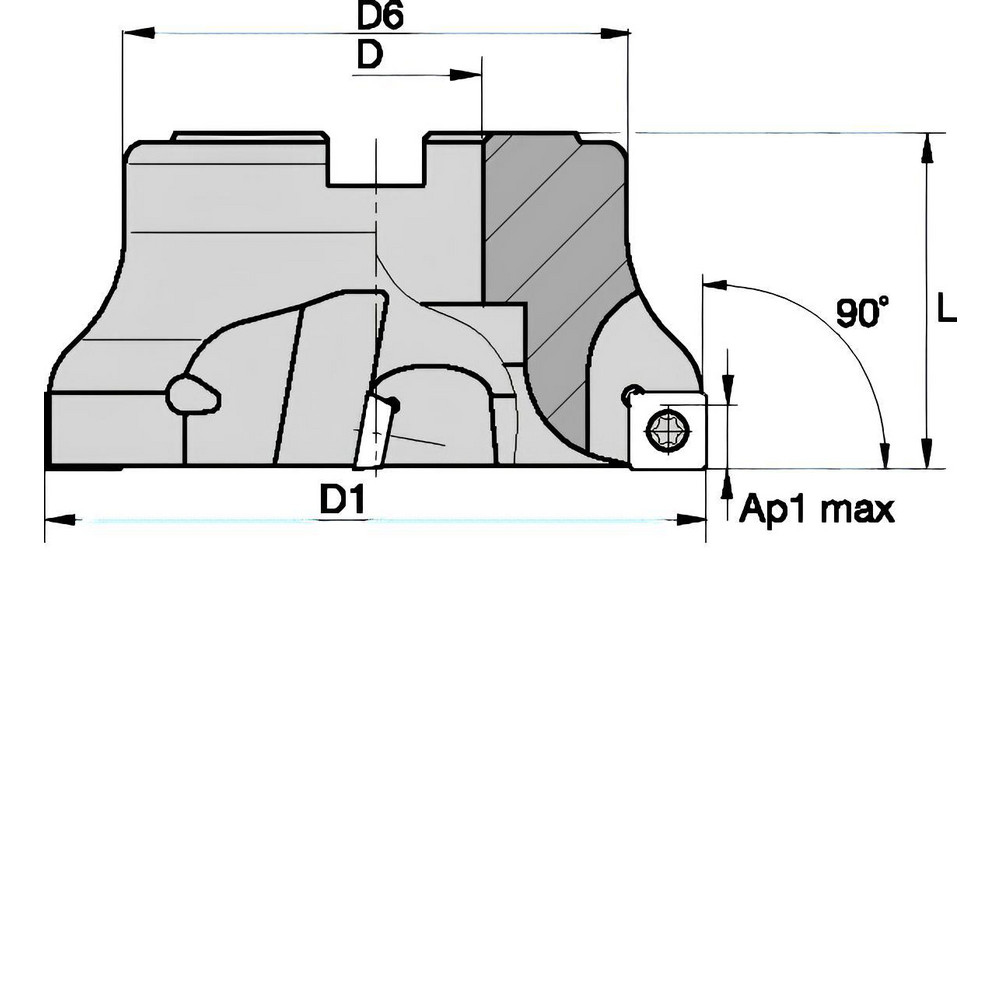

| Maximum Cutting Diameter (Decimal Inch) | 2.4803 |
|---|---|
| Maximum Cutting Diameter (mm) | 63.00 |
| Maximum Depth of Cut (mm) | 6.57 |
| Maximum Depth of Cut (Decimal Inch) | 0.2587 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Compatible Insert Size Code | SP.T 10T3.. |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0/90 |
| Series | KSSM |
| Maximum Body Diameter (Decimal Inch) | 2.4220 |
| Overall Height (Decimal Inch) | 1.5748 |
| Hub Diameter (mm) | 50.00 |
| Hub Diameter (Decimal Inch) | 1.9685 |
| Complete Insert Compatibility | SP.T 10T3PPR.. |
| UNSPSC Code | 27112803 |
| Number Of Cutter Inserts | 6 |
| Number Of Flutes | 6 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 46887600 |
