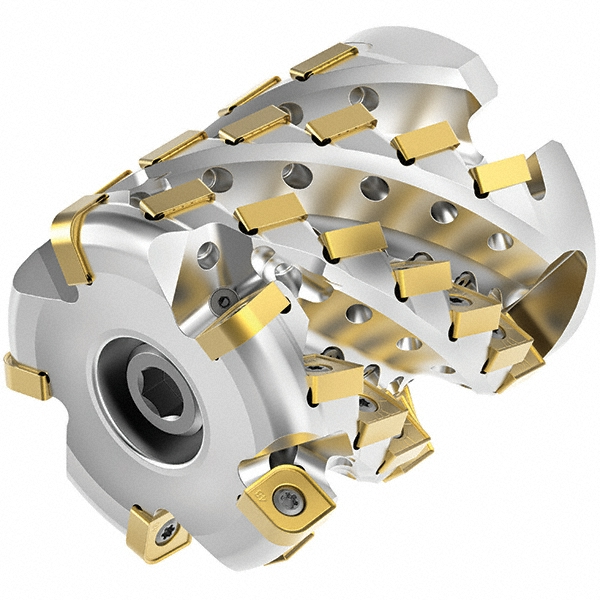

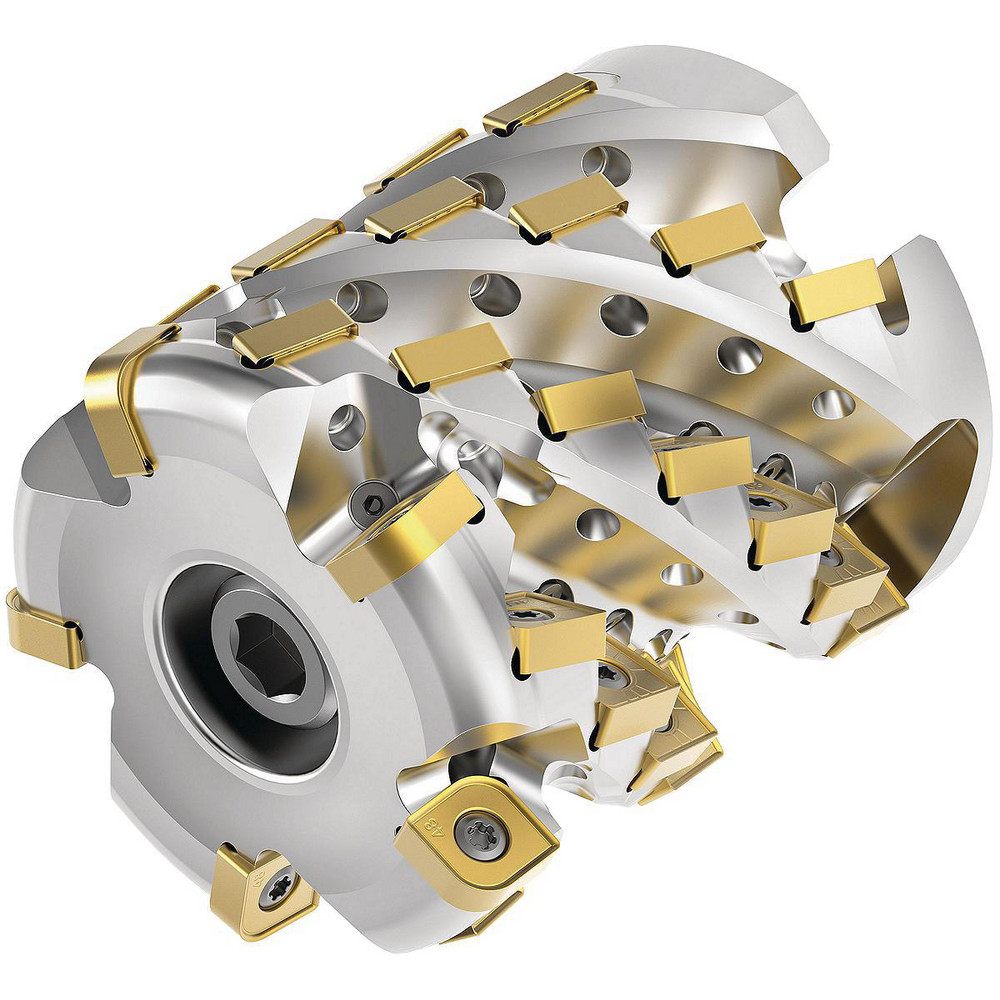

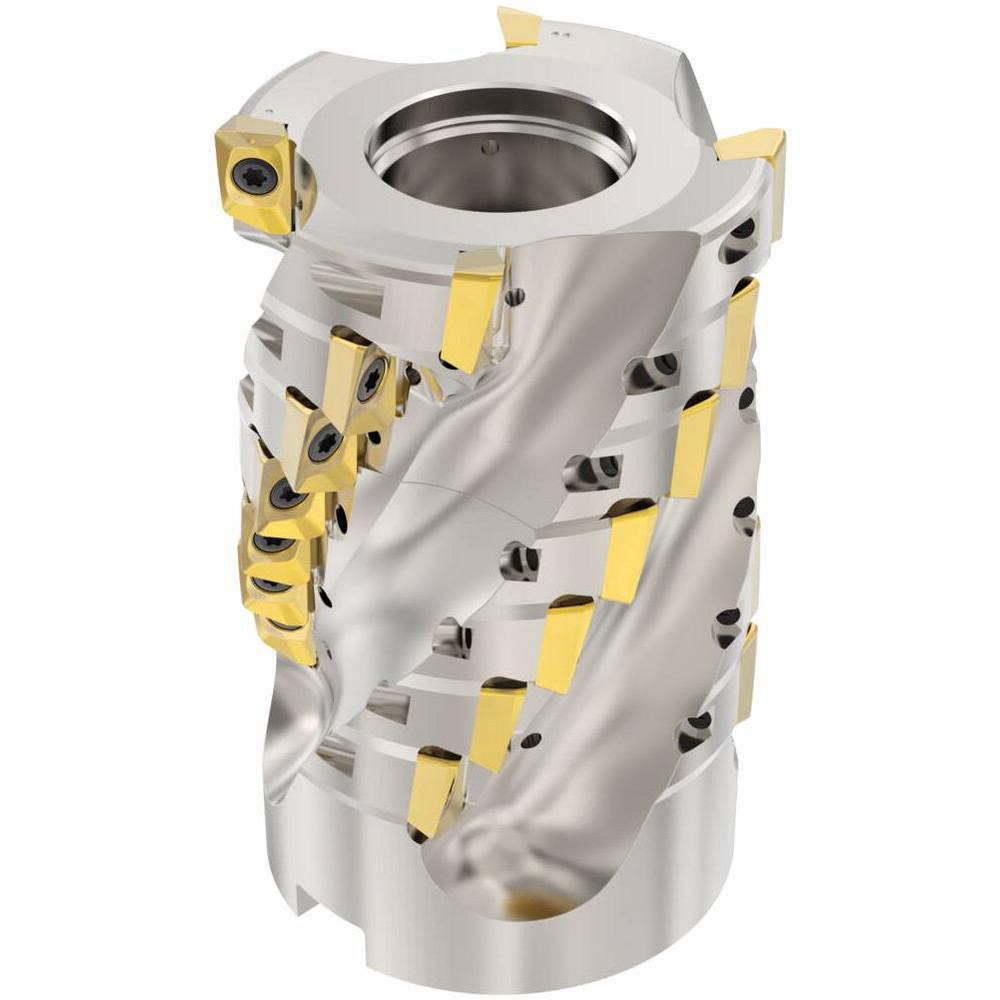

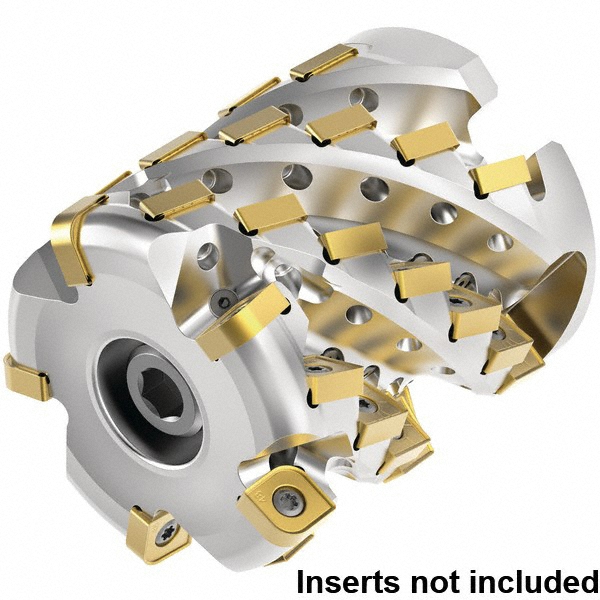

Takes 55 Inserts, 90° Lead Angle, 103mm High, SNHJ1004.. Insert Style, Through Coolant, Series HARVI Ultra 8X

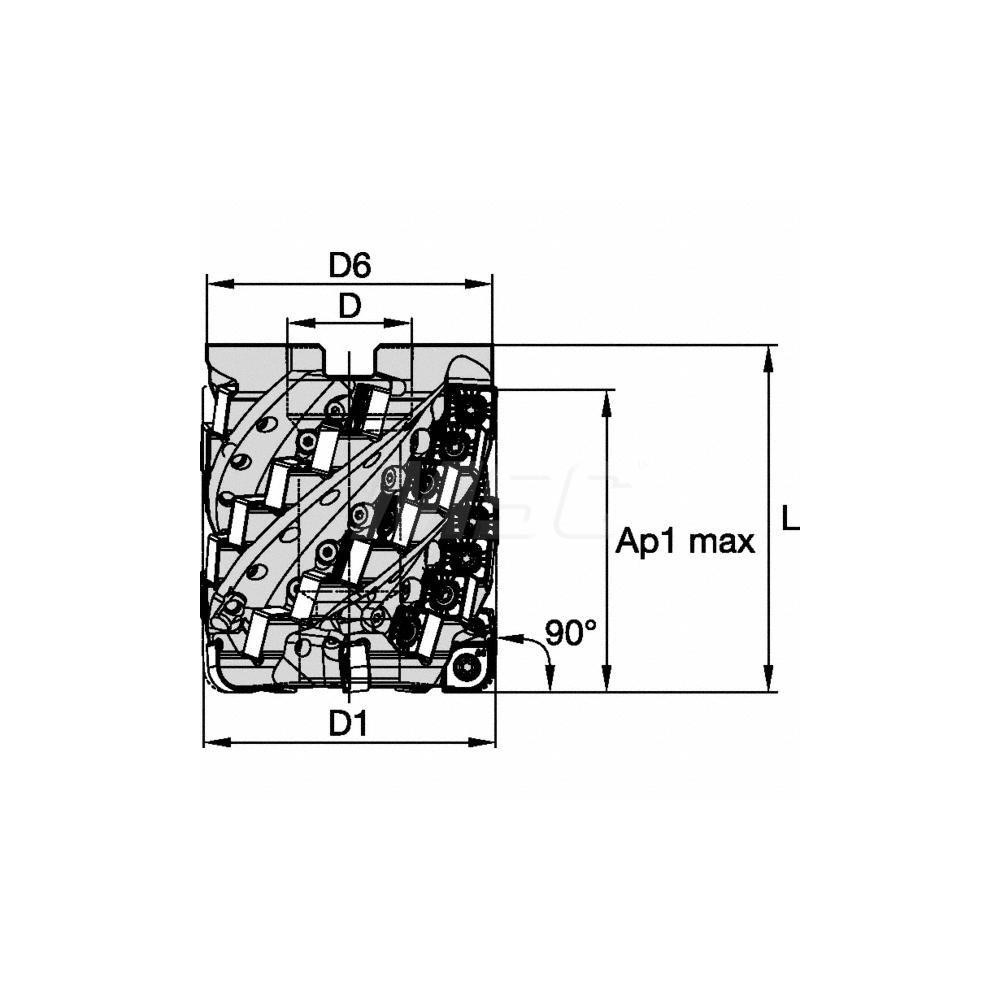

| Maximum Cutting Diameter (Decimal Inch) | 2.4803 |
|---|---|
| Maximum Cutting Diameter (mm) | 63.00 |
| Maximum Depth of Cut (mm) | 86.07 |
| Arbor Hole Diameter (mm) | 27.00 |
| Compatible Insert Size Code | SNHJ1004.. |
| Cutter Style | HU8X |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Series | HARVI Ultra 8X |
| Maximum Body Diameter (Decimal Inch) | 2.3550 |
| Overall Height (Decimal Inch) | 103.00 |
| Hub Diameter (mm) | 60.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.0551 |

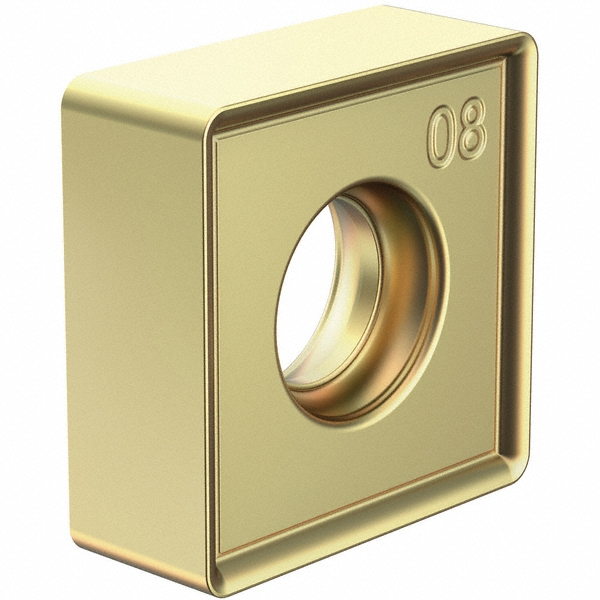

| Complete Insert Compatibility | SNHJ100408SNGDH; SNHJ100424SNGDH |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 55 |
| Number Of Flutes | 5 |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 42997155 |
