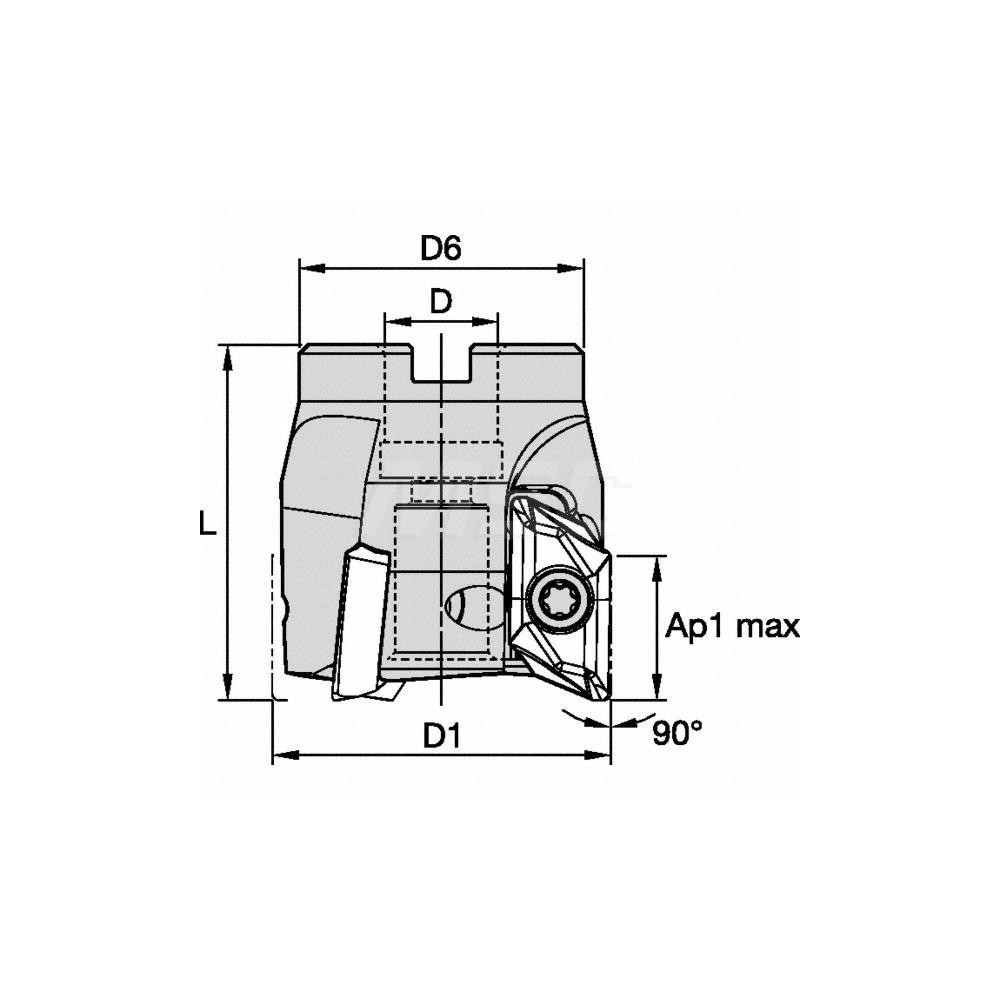

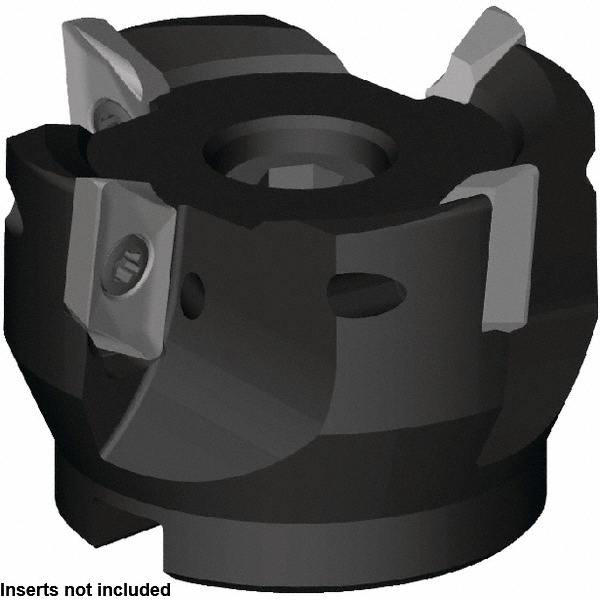

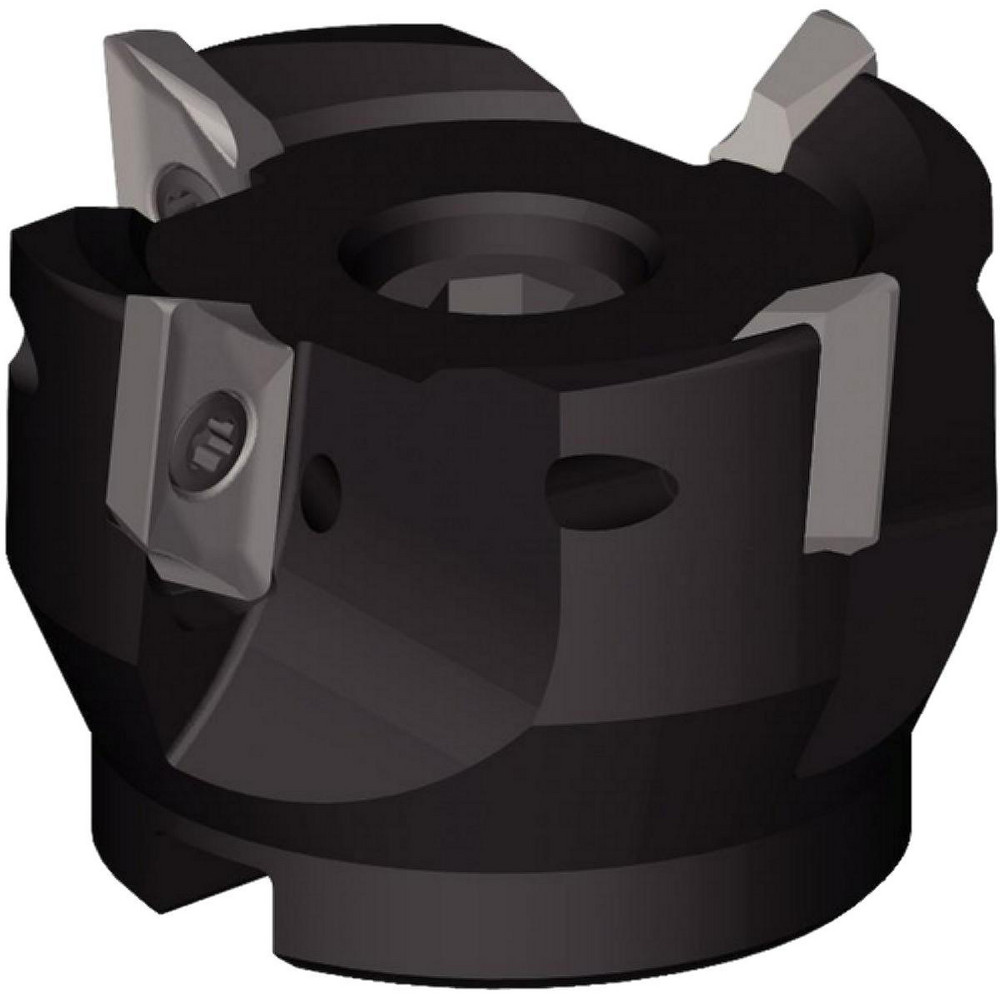

Takes 4 Inserts, 0° Lead Angle, 50mm High, ZDET 16M5..721 Insert Style, Through Coolant, Series 5720VZ16
| Maximum Cutting Diameter (mm) | 80.00 |
|---|---|
| Maximum Depth of Cut (mm) | 16.00 |
| Arbor Hole Diameter (mm) | 27.00 |
| Compatible Insert Size Code | ZDET 16M5..721 |
| Cutter Style | 5720 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0 |
| Series | 5720VZ16 |
| Maximum Body Diameter (Decimal Inch) | 3.0496 |
| Overall Height (Decimal Inch) | 50.00 |
| Hub Diameter (mm) | 55.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1378 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 4 |
| Number Of Flutes | 4 |
| Country of Origin | Bulgaria |
| undefined | undefined |
| MSC Number | MSC# 47499900 |
