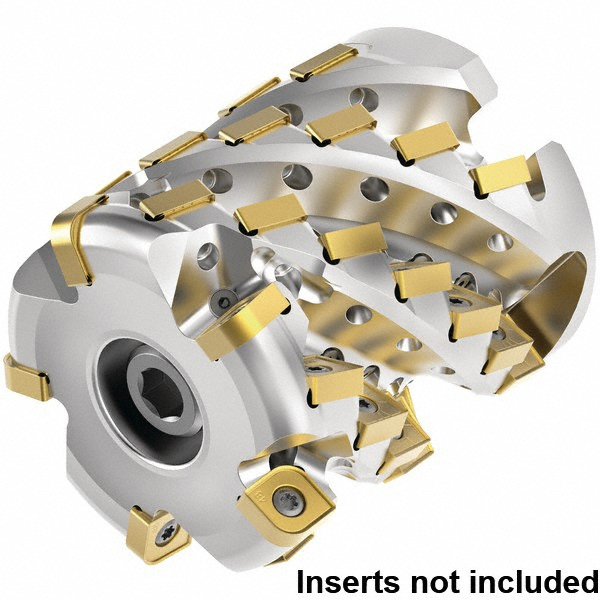

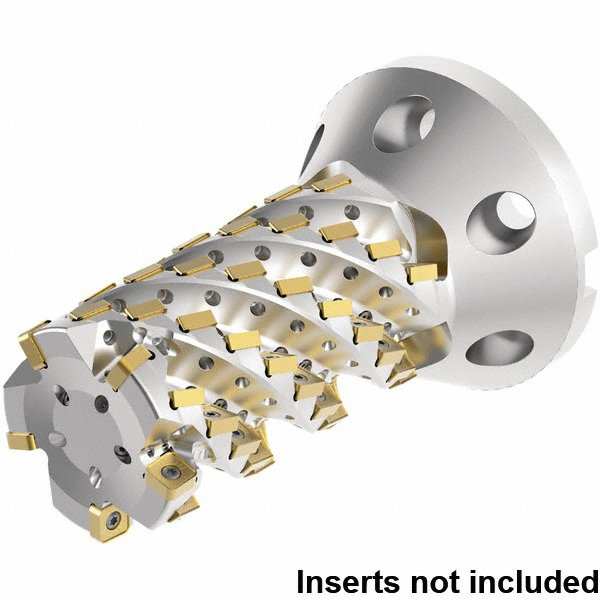

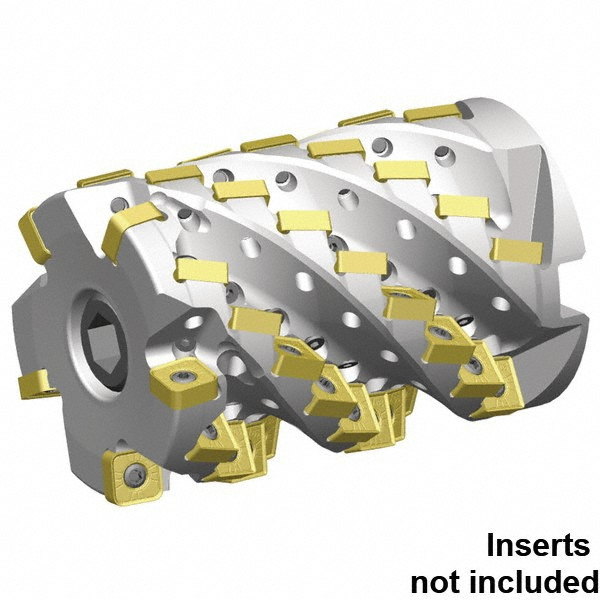

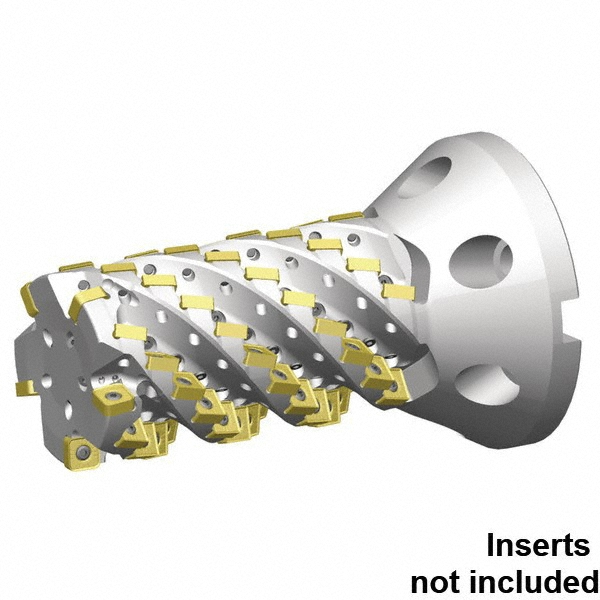

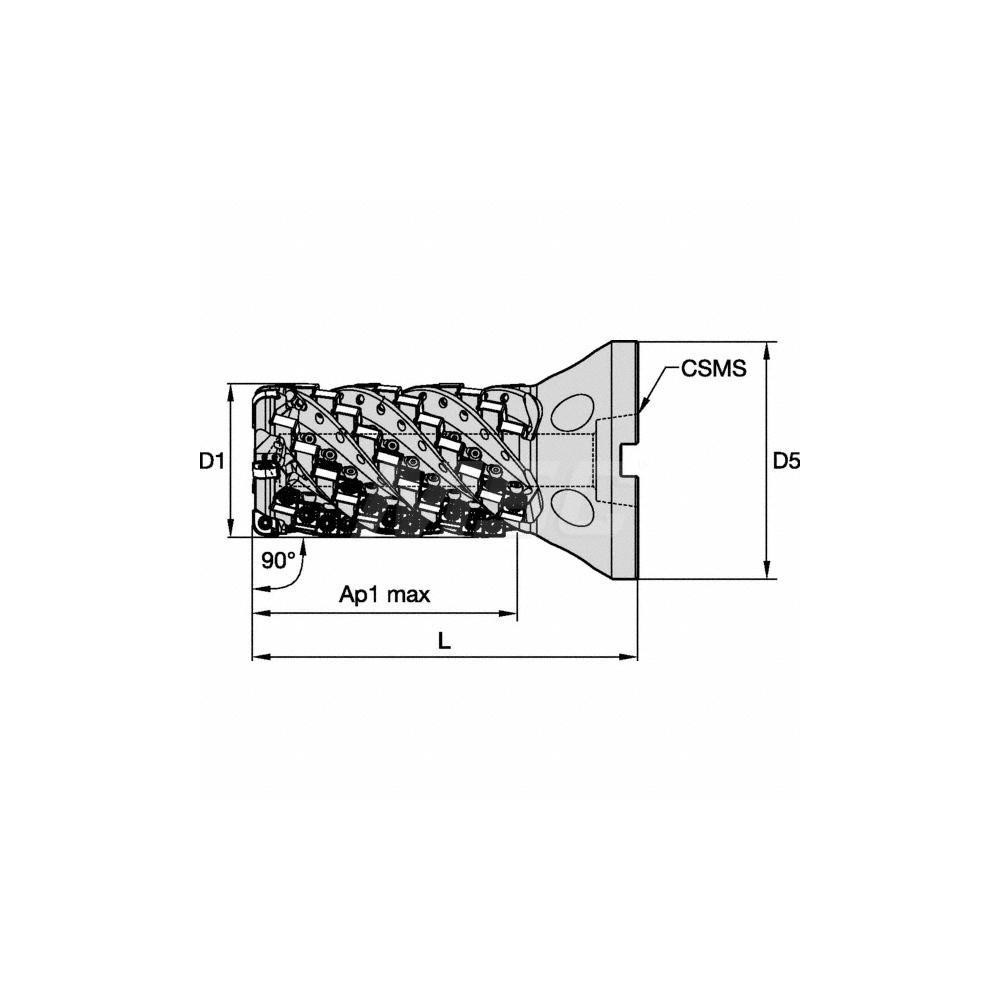

Takes 65 Inserts, 90° Lead Angle, 204mm High, SNHJ1206.. Insert Style, Through Coolant, Series HARVI Ultra 8X
| Maximum Cutting Diameter (Decimal Inch) | 3.1500 |
|---|---|
| Maximum Cutting Diameter (mm) | 80.00 |
| Maximum Depth of Cut (mm) | 132.90 |
| Arbor Hole Diameter (Inch) | 4-5/8 |
| Compatible Insert Size Code | SNHJ1206.. |
| Cutter Style | HU8X |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Series | HARVI Ultra 8X |
| Maximum Body Diameter (Decimal Inch) | 3.0310 |
| Overall Height (Decimal Inch) | 204.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.0310 |
| Complete Insert Compatibility | SNHJ120664SNGDH; SNHJ120608SNGDH |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 65 |
| Number Of Flutes | 5 |
| Country of Origin | Germany |
| MSC Number | MSC# 42975110 |
