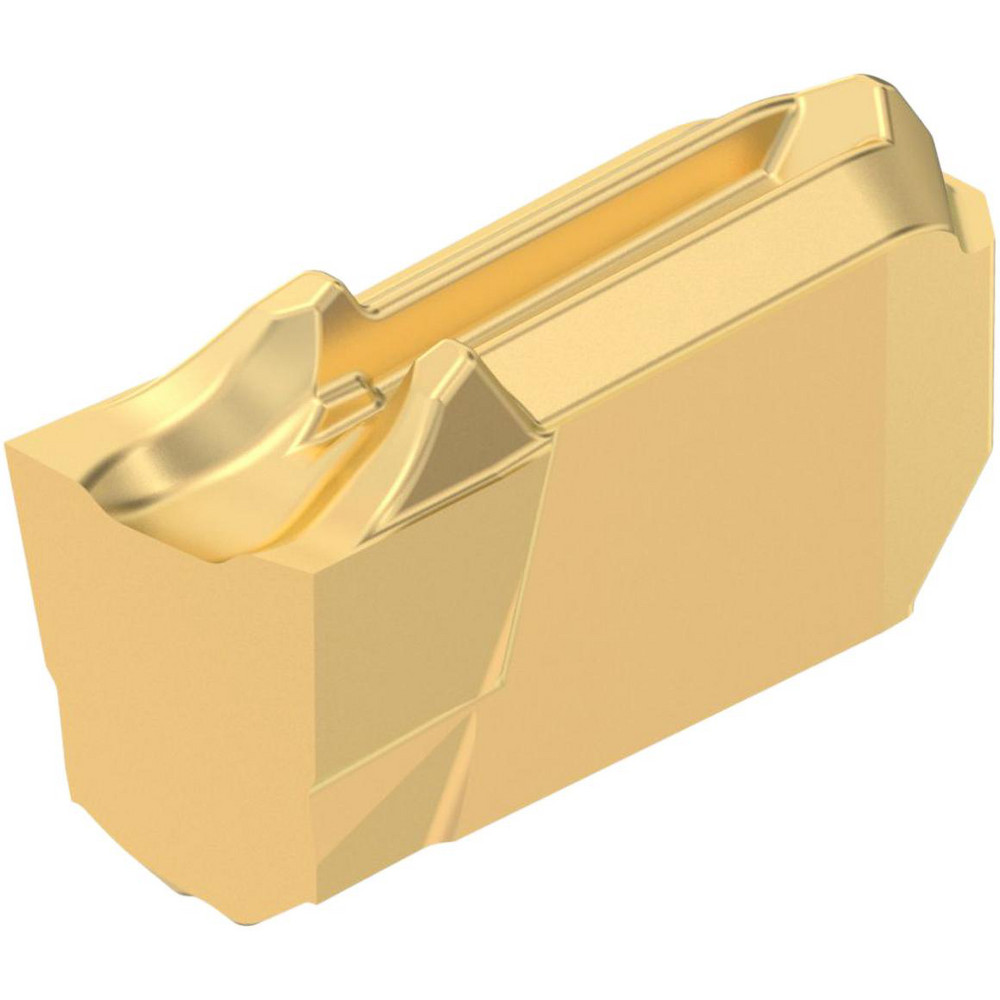

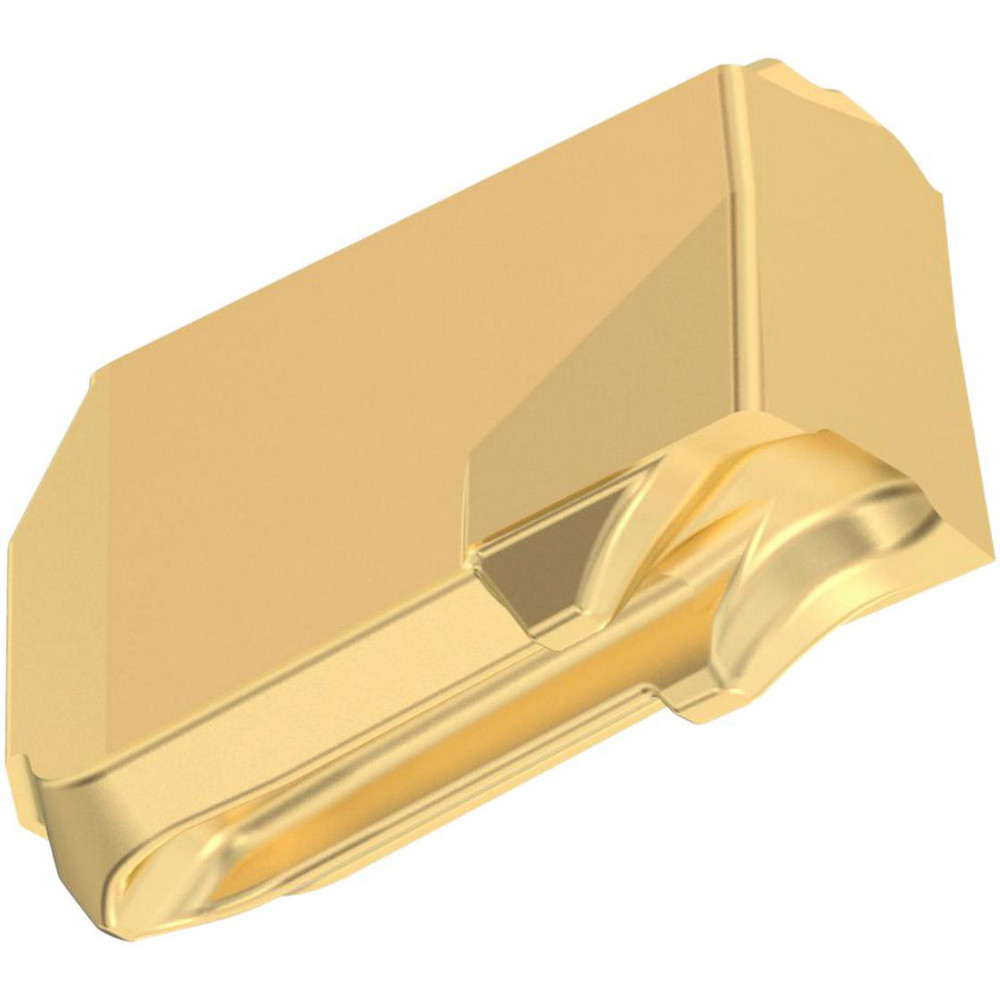

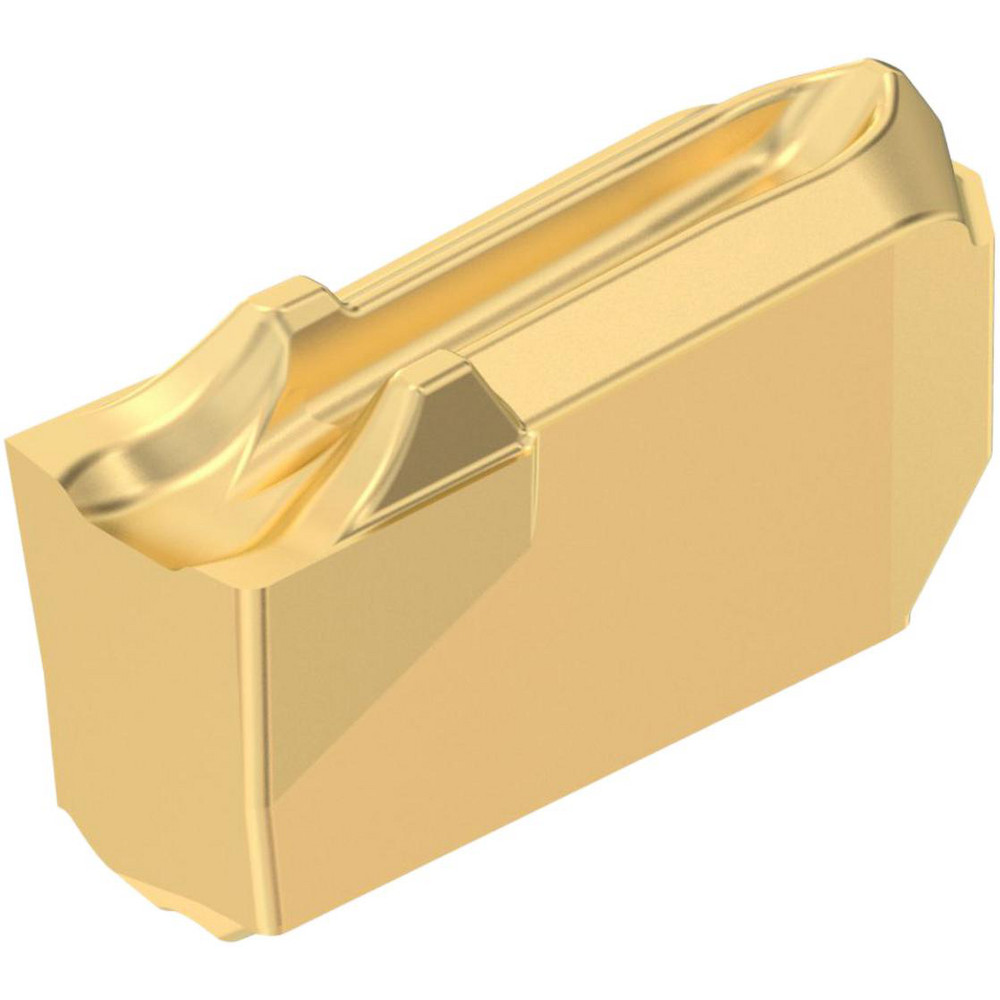

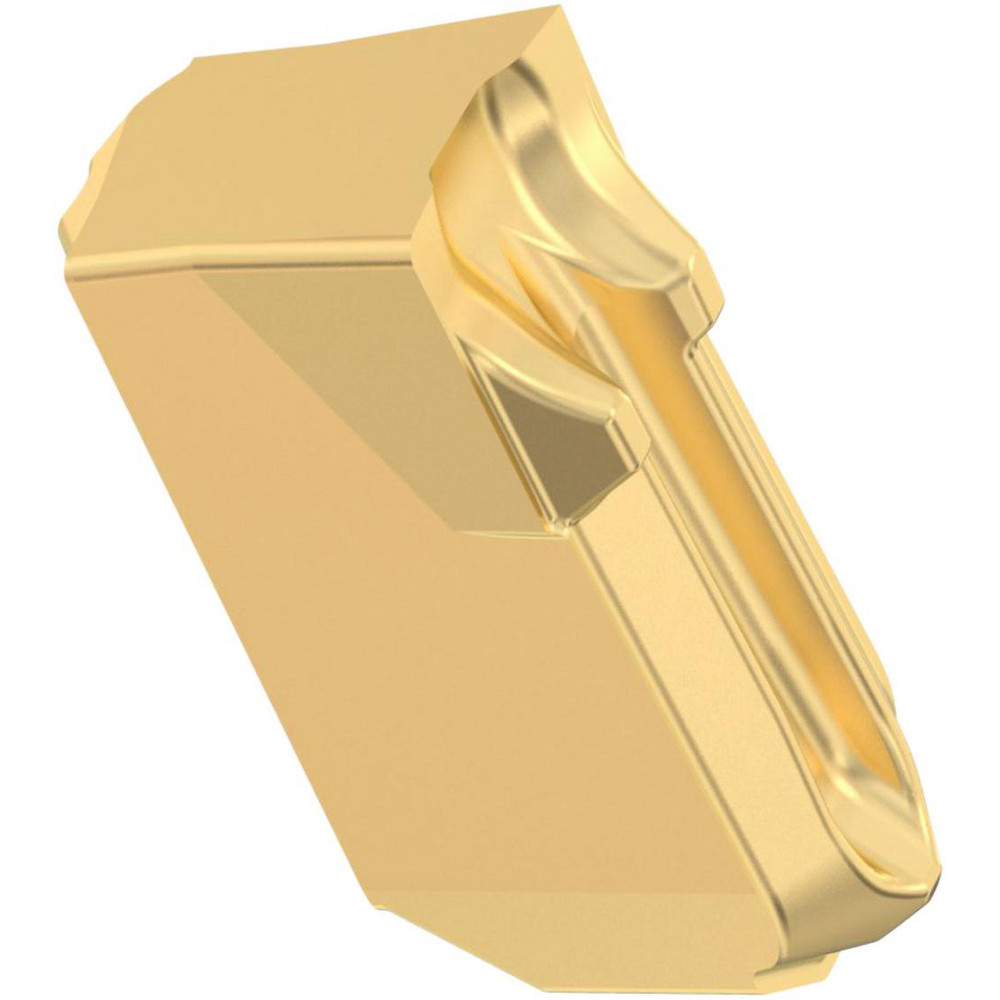

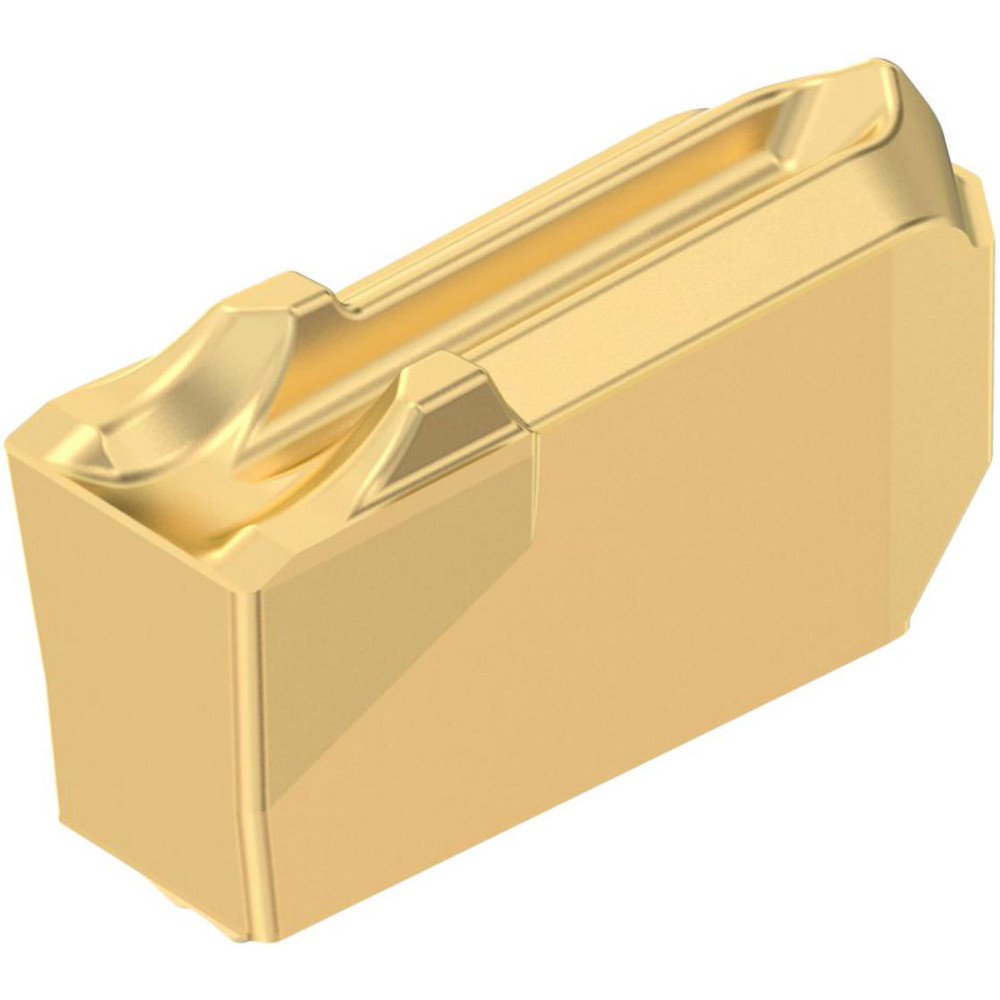

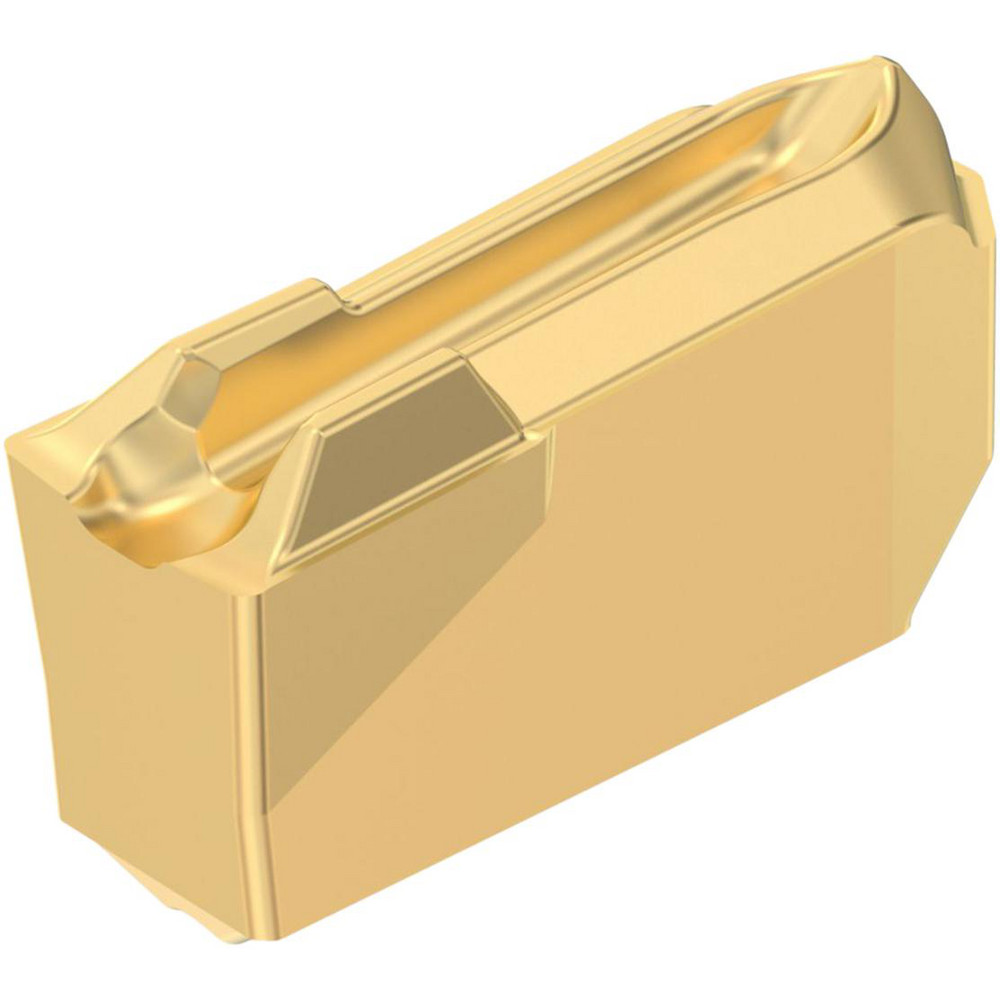

0.000 deg Neutral Lead Angle, Series EC-CF
| Insert Style | EC-C |
|---|---|
| Insert Size Code | 3 |
| Insert Material | Carbide |
| Manufacturer Grade | KCU25B |

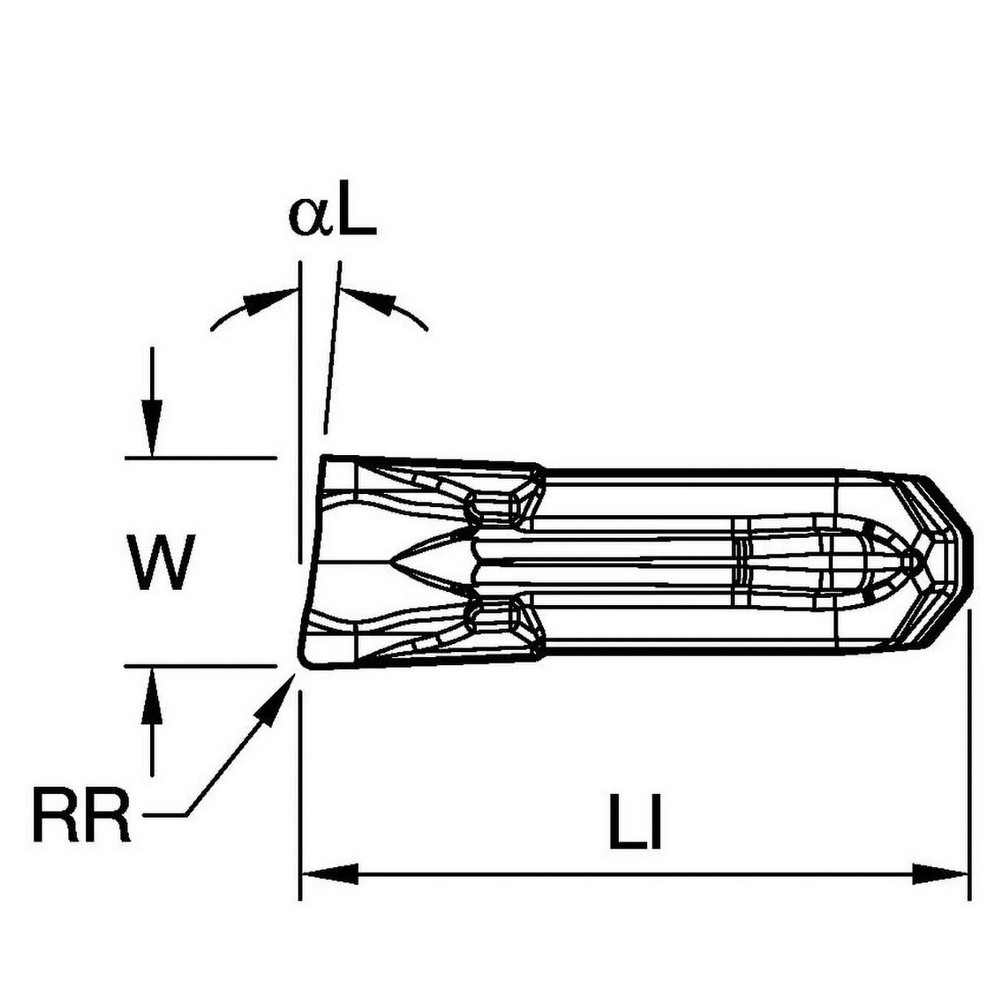

| Cutting Width (Decimal Inch) | 0.1575 |
| Cutting Width (mm) | 4.000 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0.000 |
| Relief Angle | 10.500 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Chipbreaker | CF |
| Multi-use Tool | No |
| Cutting Tool Application | Cut-Off |
| Series | EC-CF |
| Coating Process | PVD |
| Overall Length (mm) | 10.1900 |
| Overall Length (Decimal Inch) | 0.4010 |
| Primary Workpiece Material | High-Temp Alloys; Stainless Steel; Cast Iron |
| Primary Workpiece Material Code | S; K; M |
| Secondary Workpiece Material | Non-Ferrous Metal |
| Secondary Workpiece Material Code | N |
| Ansi Code | EC040M04N00CF02 |
| Iso Code | EC040M04N00CF02 |
| Manufacturers Catalog Number | EC040M04N00CF02 KCU25B |
| Material Grade | KCU25B |
| Insert Seat Size | 3 |
| Full Radius | No |
| Cutting Direction | Forward |
| Coating Classification | PVD |
| Insert Width (Decimal Inch) | 0.1575 |
| Coating/Finish | TiSiN; AlTiN; AlTiSiN |
| Single Or Double End | Single End |
| UNSPSC Code | 23242105 |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 63476527 |
